Chapter 4
4-3
F-4-3

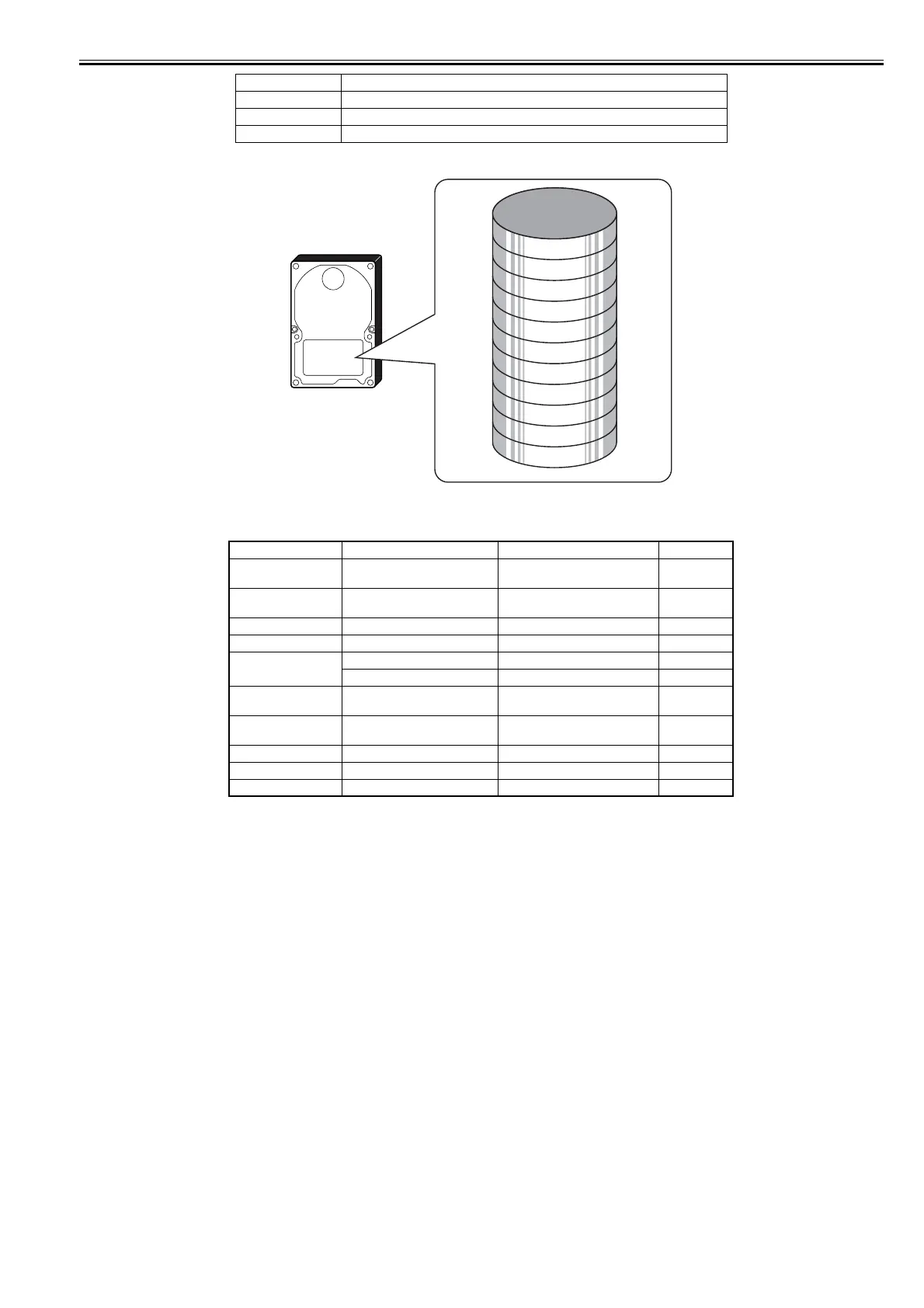

The following shows the construction of the machine's system software:
T-4-4
PDL_DEV Stores PDL font, etc.
BOOTDEV Stores execution module, message data file, RUI content, etc.
FSTCDEV Chasing (not used)
System Software Description Location Remarks
System System module (controls
mechanism as a whole)
HDD (BOOTDEV)
Language Language module (controls LCD
indications)
HDD (BOOTDEV)
RUI Remote user interface module HDD (BOOTDEV)
Boot Starts up the machine Boot ROM DIMM
G3FAX Controls G3 Fax (2-port) G3 Fax board DIMM
Controls G3 Fax (1-port) HDD (BOOTDEV)
Dcon Controls the DC controller DC controller PCB Flash ROM
(soldered)
Rcon Controls the Reader controller Reader controller PCB Flash ROM
(soldered)
Meapcont Controls MEAP applications HDD (BOOTDEV)
SDICT OCR dictionary HDD (BOOTDEV)
KEY encryption communication key HDD (BOOTDEV)
Partition Description
HDD
TMP_GEN
TMP_PSS
FSTDEV
APL_SEND
APL_MEAP
IMG_MNG
APL_GEN
BOOTDEV
FSTCDEV
PDLDEV
TMP_FAX
