Chapter 10
10-30
F-10-109

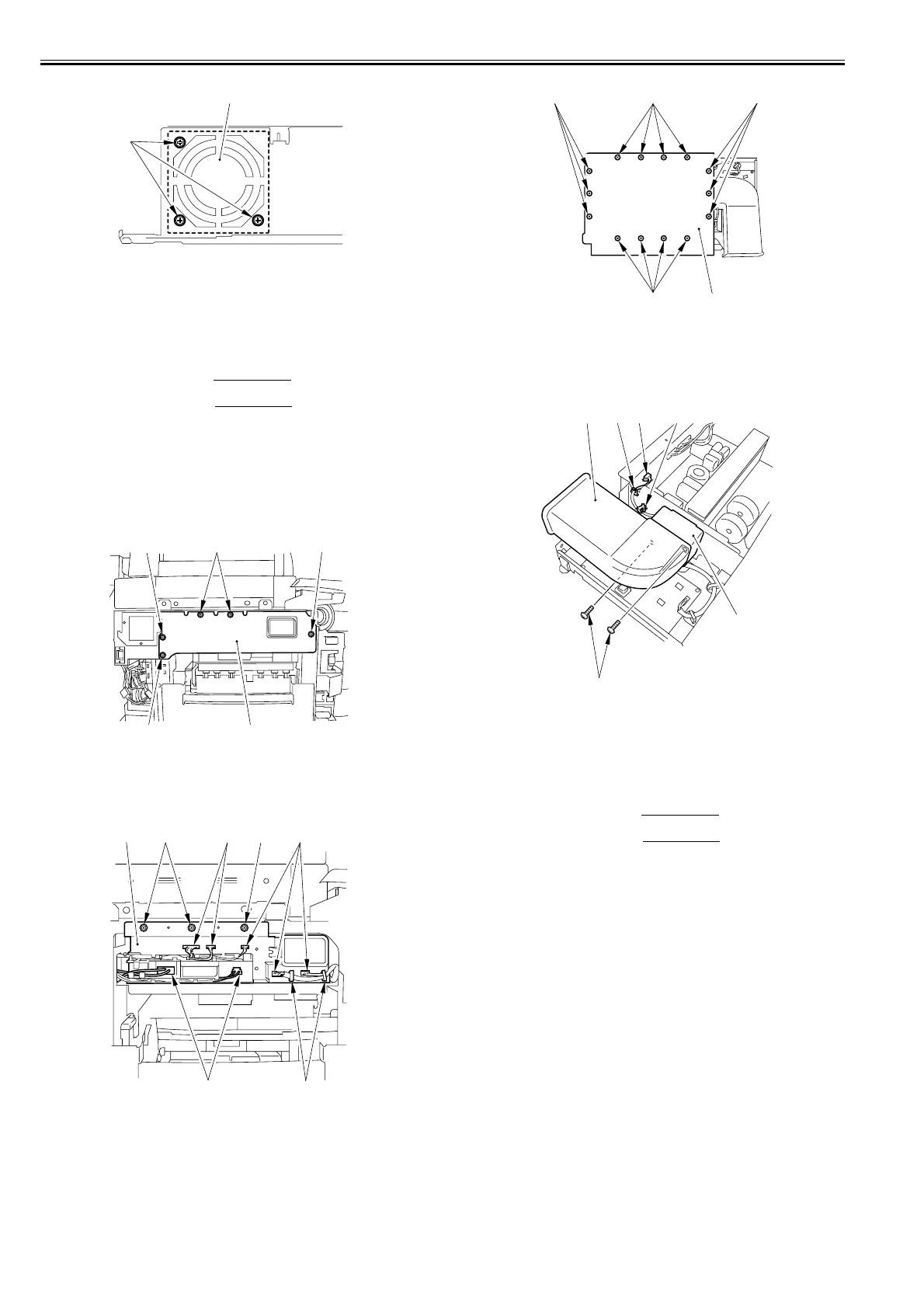

10.5.29 Fixing Heater Power Supply Cooling Fan
10.5.29.1 Before Removing the Fixing Heater Power
Supply Cooling Fan
0015-5163
iR5065 / iR 5055 / iR5075 / / /
1) Detach the left cover (upper). (page 10-10)
Reference[Removing the
Left Cover (Upper)]
2) Detach the left cover (middle). (page 10-12)
Reference[Removing the
Left Cover (Middle)]
10.5.29.2 Removing the Fixing Heater Power Supply
Cooling Fan
0015-5166
iR5065 / iR 5055 / iR5075 / / /
1) Detach the PCB cover [2].
- Screw [1] 5pc.
F-10-110
2) Open the 2 wire saddles [1].
3) Disconnect the 7 connectors [2].
4) Detach the fixing heater power supply unit [4].
- Screw [3] 3pc.
F-10-111
5) Detach the fixing heater power supply unit cover [2].
- Screw [1] 14pc.
F-10-112
6) Detach the duct [2].
- Screw [1] 2pc.
7) Detach the fixing heater power supply fan [5].
- Connector [3] 1pc.
- Wire saddle [4] 2pc.
F-10-113
10.5.30 Circulation Duct Fan
10.5.30.1 Before Removing the Circulation Duct Fan
0015-5167
iR5065 / iR 5055 / iR5075 / / /
1) Detach the left cover (upper). (page 10-10)
Reference[Removing the
Left Cover (Upper)]
2) Detach the left cover (middle). (page 10-12)
Reference[Removing the
Left Cover (Middle)]
10.5.30.2 Removing the Circulation Duct Fan
0015-5169
iR5065 / iR 5055 / iR5075 / / /
1) Free the harness [1] from the harness guide [2].
2) Disconnect the connector [3].
3) Detach the fixing heater power supply cooling fan [5] together with its
duct.
- Screw [4] 3pc.
[1]
[2]
[1]
[1]
[1]
[1]
[2]
[1][2]
[2] [2][3] [3][4]
[1]
[1]
[1] [1]
[2]
[1]
[2] [3][4] [4]
[5]
