14) Attach the covers etc., by the reverse procedure to detach them.
- heat exhaust fan (filter)
- lower rear cover
- upper rear cover
- Secure the reader communication cable in the wire saddle.
15) Fit the inner units in each cassette in place, and then attach the cassettes onto the host machine.
16) Connect the power supply cable (for power outlet) of the host machine.
17) Turn on the main power switch.
2.9 Installing the Deck Heater
2.9.1 Checking the Parts to Install
0016-0491
iR5065 / iR 5055 / iR5075 / / /

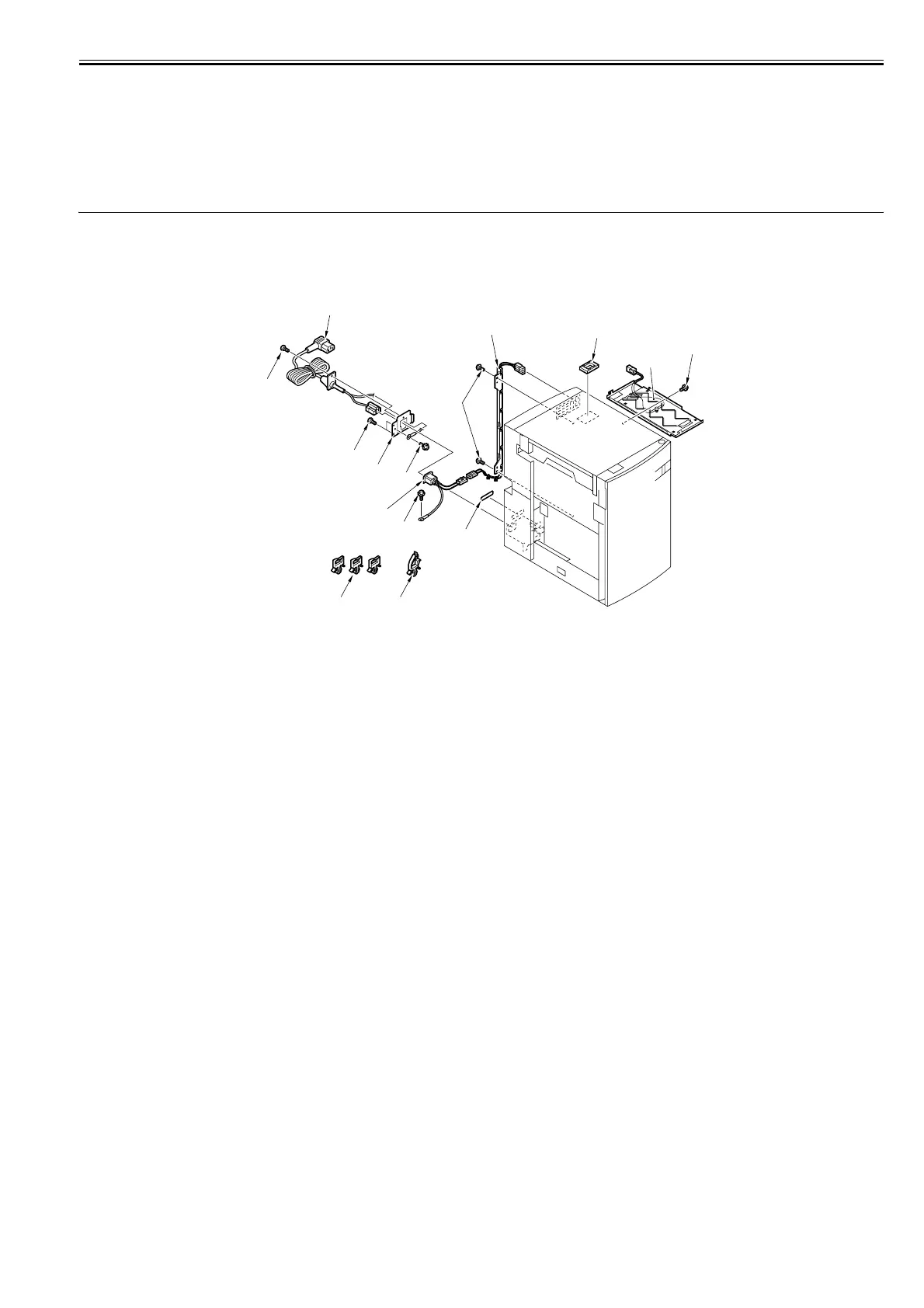

Every components of the cassette heater unit are supplied as service parts, so have the following parts on hand.
F-2-112
T-2-6
No. Part name Part number QTY No. Part name Part number QTY
[1] Heater unit FG6-9651 1pc. [7] Power supply label FS6-8725 1pc.
[2] AC input connector FG6-1117 1pc. [8] Binding screw (M4 X 4) XB1-2400-409 4pcs.
[3] Relay harness unit FG6-2957 1pc. [9] Wire saddle (Not used for this product) WT2-5730 3pcs.
[4] AC cable FK2-4379 1pc. [10] Power supply code base FC7-5473 1pc.
[5] Screw (w/ washer) XB2-7400-607 3pcs. [11] Screw (w/ flat spring) XB2-8401-007 1pc.
[6] Cable protection bush WT2-5098 1pc. [12] Wire saddle WT2-5738 1pc.
[8]
[2]
[5]
[5]
[10]
[8]
[7]
[12][9]
[3]
[6]
[4]
[1]
[5]
[11]
