Chapter 4
4-9
F-4-14
4.6 Flow of Image Data
4.6.1 Flow of Image Data According to Copy Functions
0015-4367
iR5065 / iR 5055 / iR5075 / / /

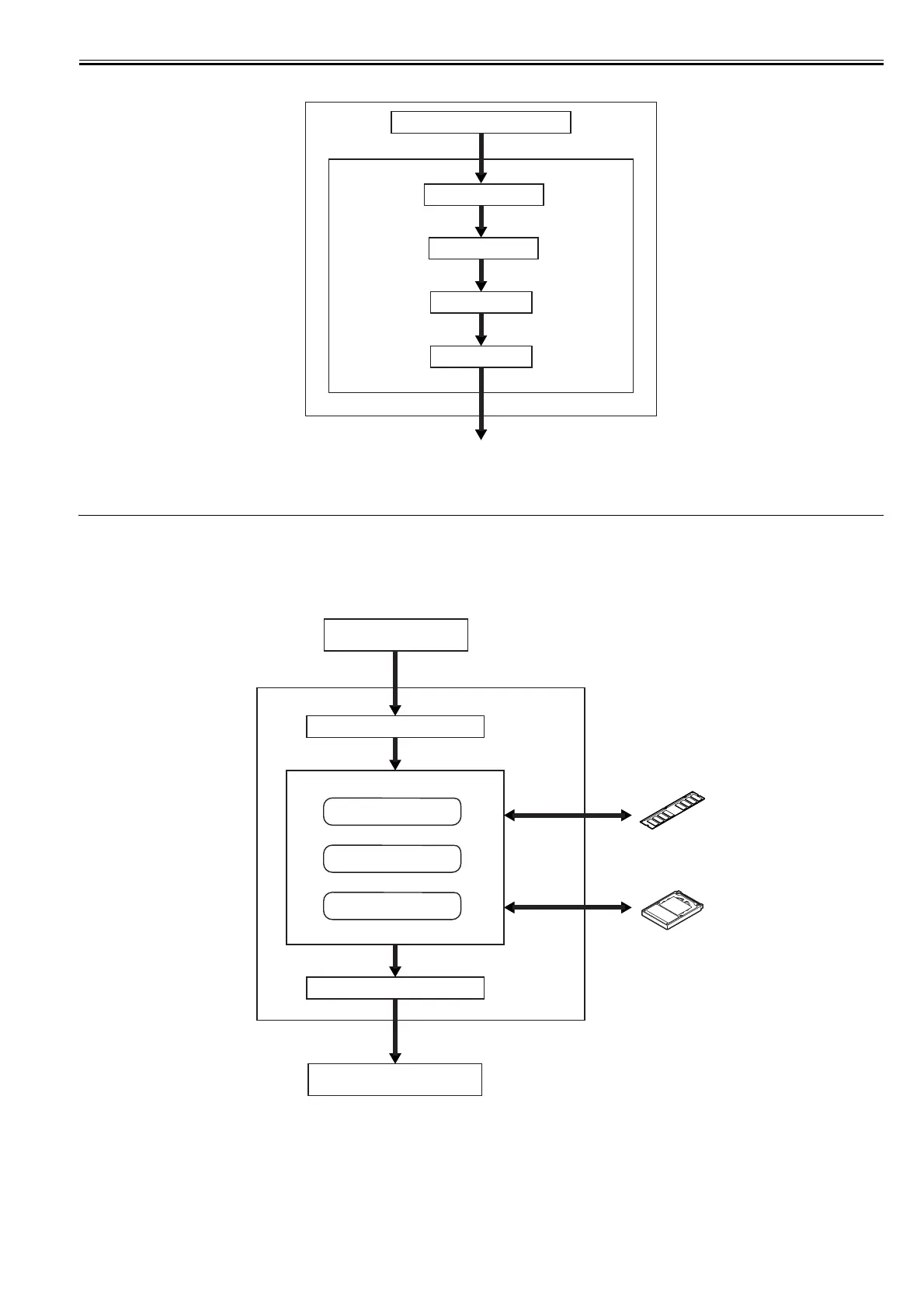

The following is the flow of image data when the Copy Function is in use:
F-4-15
4.6.2 Flow of Image Data for the Box Function
0015-4368
iR5065 / iR 5055 / iR5075 / / /
The following is the flow of image data when the Box function is in use:
Main controller PCB
To DC controller PCB
For PDL data,
when fine line
processing is ON
Compression/expansion/editing block
Binary density conversion
Enlargement/reduction
Smoothing
Thickening
Image processing block for printer unit
Image processing block for printer unit
Printer unit
Main control PCB
Data compression
Data rotation
Data expansion
SDRAM
HDD
DC controller PCB
