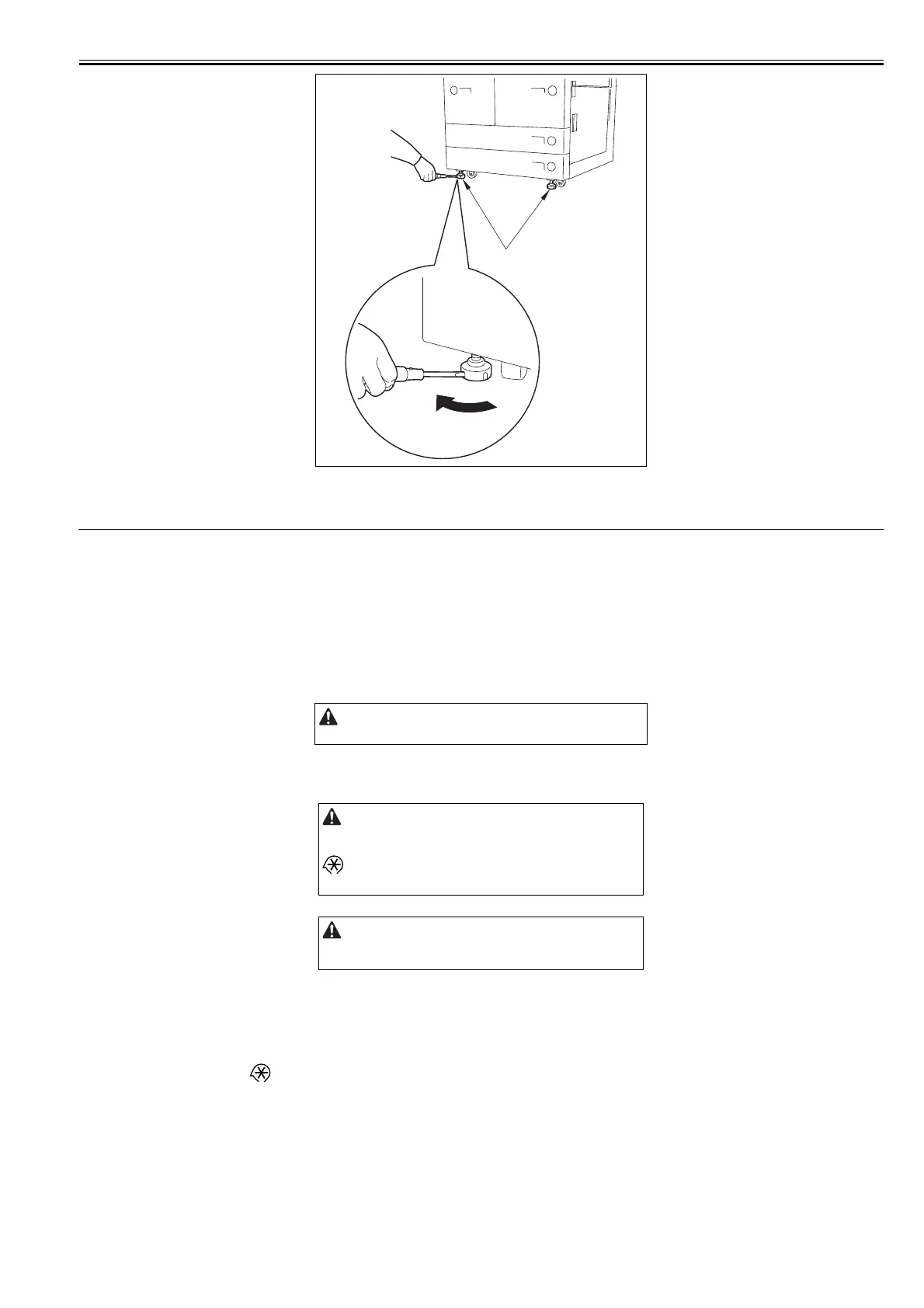

Chapter 2

2-17

3) Fill in necessary information on the service book and store it to the service book case.

2.3 Checking the Connection to the Network

2.3.1 Overview

0015-4748

iR5065 / iR 5055 / iR5075 / / /

The information in this section applies when connecting the host machine to a network.

If the user's network is in TCP/IP environment, use the PING command to see that the network settings are correct.

There is no need to check the settings using the PING command if the use's network is in an IPX/SPX or Apple Talk environment.

2.3.2 Checking the Connection to the Network

0015-7620

iR5065 / iR 5055 / iR5075 / / /

1) Perform the shutdown sequence so that the main power can be turned off.

2) Connect the network cable to the host machine, and turn on the main power switch.

3) Inform the on-site system administrator that the installation work of the host machine is complete, and also ask him/her to setup the host machine for networking.

4) Perform the shutdown sequence so that the main power can be turned off.

5) Turn on the main power switch.

2.3.3 Using the Ping Command

0015-4749

iR5065 / iR 5055 / iR5075 / / /

1) Make the following selections: > [System Settings] > [Network Settings] > [TCP/IP Settings] > [Ping Command]

2) Using the keypad on the control panel, type in the correct IP address set in [Network Connection], and press the Execute key.

If successful, the message 'Response from host' will appear so that you can check that the IP address is valid; otherwise, the message will read 'No response from

host'

2.3.4 Making a Check Using the Remote Host Address

0015-4750

iR5065 / iR 5055 / iR5075 / / /

You can execute the PING command using the appropriate remote host address to see if a connection to the network is available.

Remote host address: the IP address of a PC terminal connected to the TCP/IP network to which the machine is also connected.

1) Inform the system administrator that you are going to check the network connection using the PING command.

The following steps apply only if the machine is connected to a network.

To set up the machine for networking, it is necessary to enable [ON] for

the following item in Initial Additional Functions :

> [System Settings] > [Network Setting] > [Change Setting/Display

Connection Confirm]
