Chapter 9
9-37

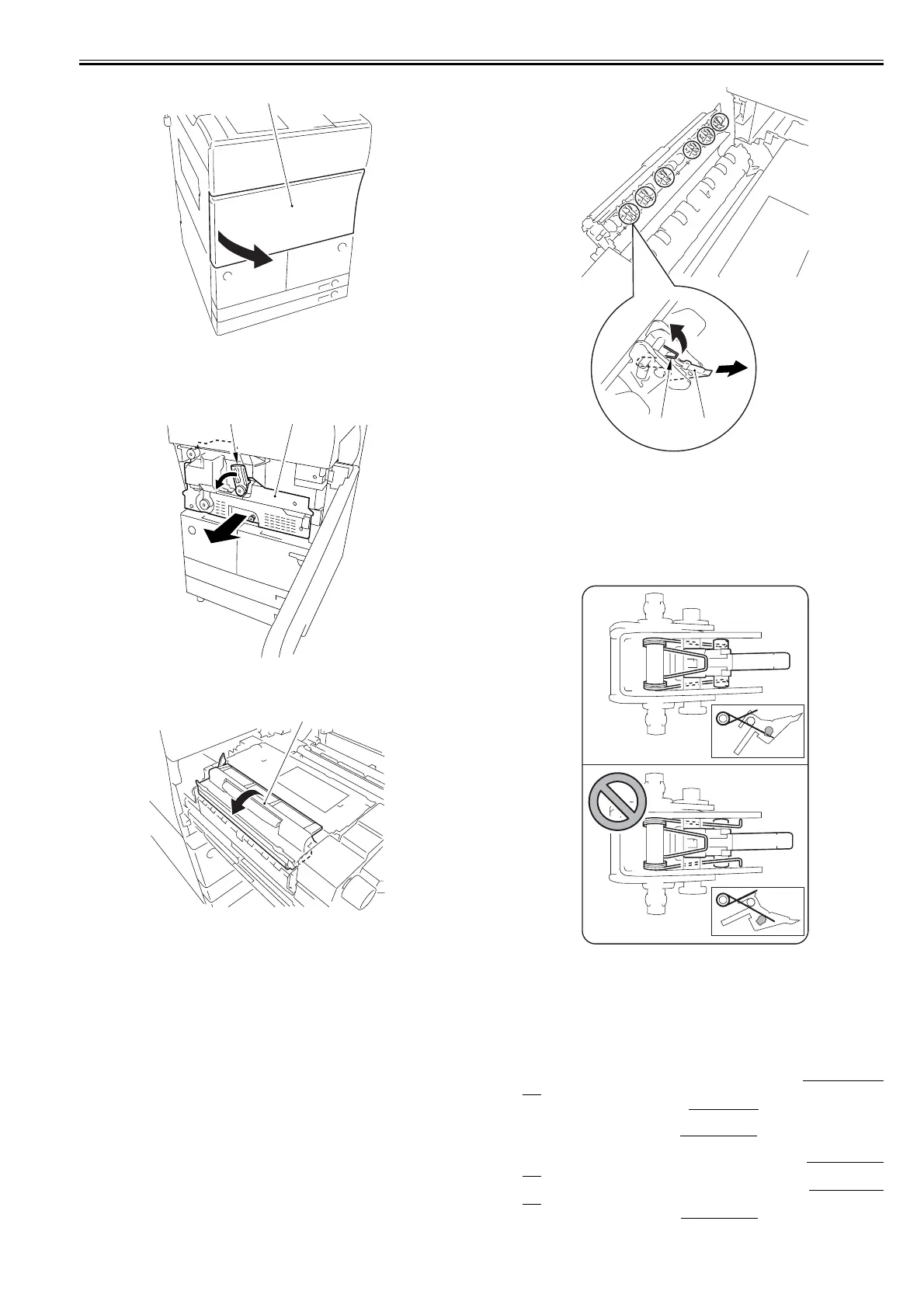

F-9-128
2) Turn the fixing/feeding unit releasing lever [1] counterclockwise to
unlock. Hold the lever [1] to slide out the fixing/feeding unit [2] forward.
(Note that the duplexing feed unit will also be slid out.)
F-9-129
3) Open the delivery unit cover [1].
F-9-130
4) While lifting the spring [1], remove the upper separation claw [2].
F-9-131
9.5.23.2 Points to Note When Mounting the Upper
Separation Claw
0015-5080
iR5065 / iR 5055 / iR5075 / / /
Pay attention to the relative positions between the upper separation claw and
spring when mounting the upper separation claw.
F-9-132
9.5.24 Lower Separation Claw
9.5.24.1 Before Removing the Lower Separation Claw
(Unit)
0015-7204
iR5065 / iR 5055 / iR5075 / / /
1) Detach the duplexing feed front cover. (page 10-
12)Reference[Removing the Duplexing Feed Front Cover]
2) Slide out the fixing/feeding unit. (page 9-18)
Reference[Removing the
Fixing/Feeding unit]
3) Detach the fixing front cover. (page 10-14)
Reference[Removing the
Fixing Front Cover]
4) Detach the fixing/feeding unit front cover. (page 10-
13)Reference[Removing the Fixing/Feeding Unit Front Cover]
5) Detach the fixing/feeding unit middle cover. (page 10-
13)Reference[Removing the Fixing/Feeding Unit Middle Cover]
6) Detach the fixing upper cover. (page 10-13)
Reference[Removing the
[1]
[1]
[2]
[1]
[1] [2]
To Next Page
