Chapter 2
2-5
2.2 Unpacking and Installation
2.2.1 Unpacking and installation procedure
0015-4653
iR5065 / iR 5055 / iR5075 / / /
Take into account the following points when installing this equipment.
2.2.2 Unpacking
0015-4654
iR5065 / iR 5055 / iR5075 / / /

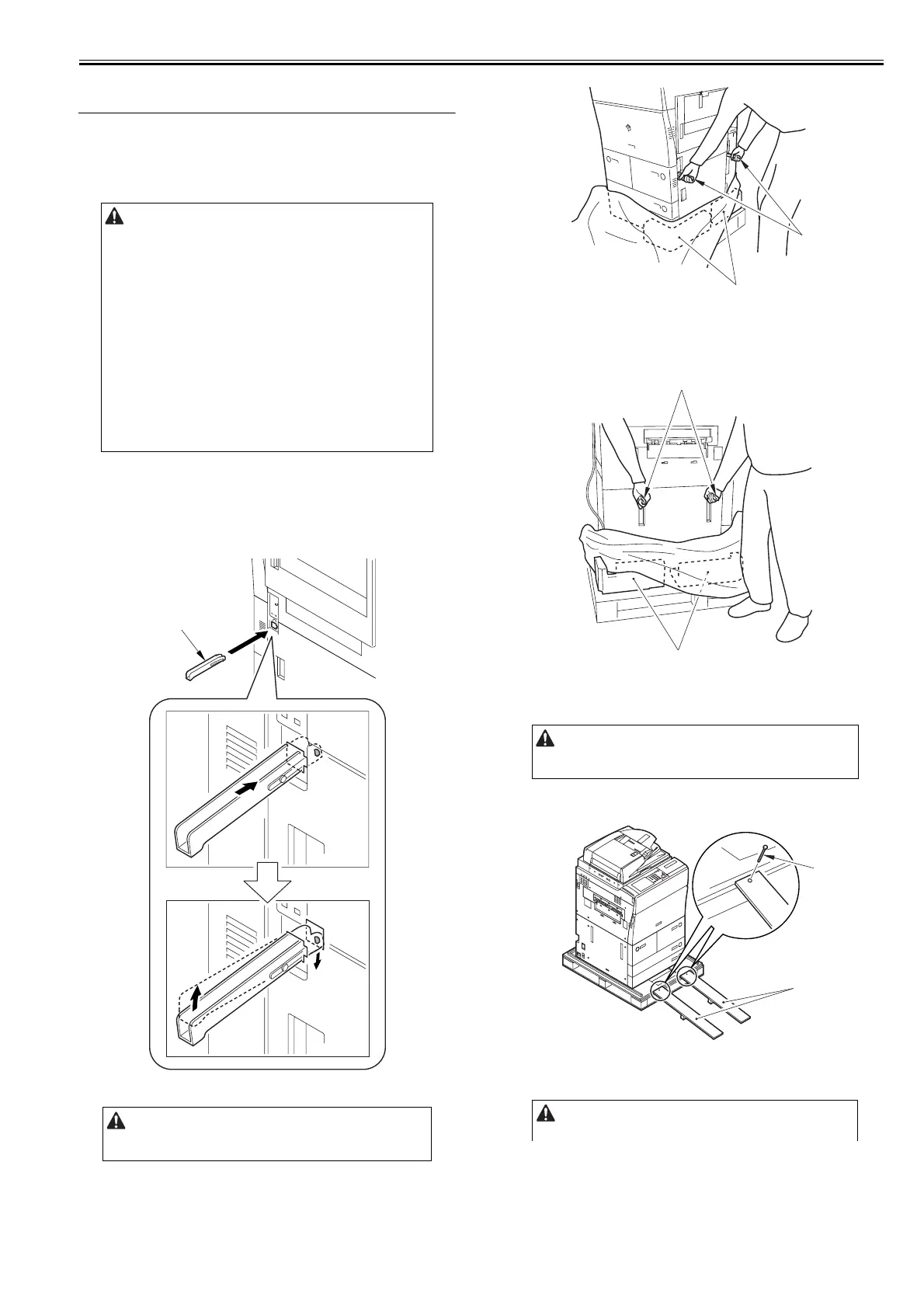

1) Unpack the package, and remove the vinyl.
2) Open the attached cardboard box, and then insert the 1 grip [1] that has
been included to the front of the pickup side.
F-2-6
3) Hold the 2 grips (front/rear) on the pickup assembly side [1] of the host
machine, and then remove the 2 pads [2] while lifting the host machine a
little. (Mass of the host machine: Approx. 230 kg)
F-2-7
4) Hold the 2 grips (front/rear) on the delivery assembly side [1] of the host
machine, and then remove the 2 pads [2] and the vinyl bag while lifting
the host machine a little.
F-2-8
5) Remove the cardboard on the skid, and then take out the 2 slope plates
installed at the center of the skid.
6) Reverse the slope plate [1]. Match the pin hole of the skid against the pin
hole of the slope plate, and then insert the 2 pins [2].
F-2-9
7) Hold the grip [1] of the host machine. Slide the host machine on the slope
to get it down from the skid.
1. When transferring the host machine from a low-temperature to a warm
place and installing it, dew condensation may occur around the pickup/feed
assembly, leading to image faulty reproduction. Therefore, the host machine
is unpacked and left for 1 hour or more to make it accustom to room
temperature (Dew condensation: The phenomenon where water drops
accumulate on the surface of metal when a metal material is moved from a
low-temperature to a warm area and the moisture in the air surrounding the
metal is quickly cooled)
2. When using stairways for carrying in and out from/to the installation
space, take into account the following points.
1) When lifting the host machine, do not use the left and right grips (3
locations) but hold the four corners at the bottom of the host machine.
2) The mass of this equipment is approx. 230 kg. Make sure that four
persons perform unpacking.
3) Remove the ADF assembly, the fixing feed unit assembly and the
duplexing unit assembly, and then separate them from the host machine
before carrying in and out.
Be sure to insert the leaf spring of the grip downward. Adverse insertion
may cause the grip coming off while lifting the host machine.
[1]
If the slope plate is difficult to remove, displacement of the host machine
to the rear edge of the skid makes operation easier.
Be careful that the caster [2] does not fall out from the skid.
[1]
[2]
[1]
[2]
[1]
[2]
