• Using rolls with a 3-inch paper core
Holder Stopper (Left Side) Roll Holder (Right Side)

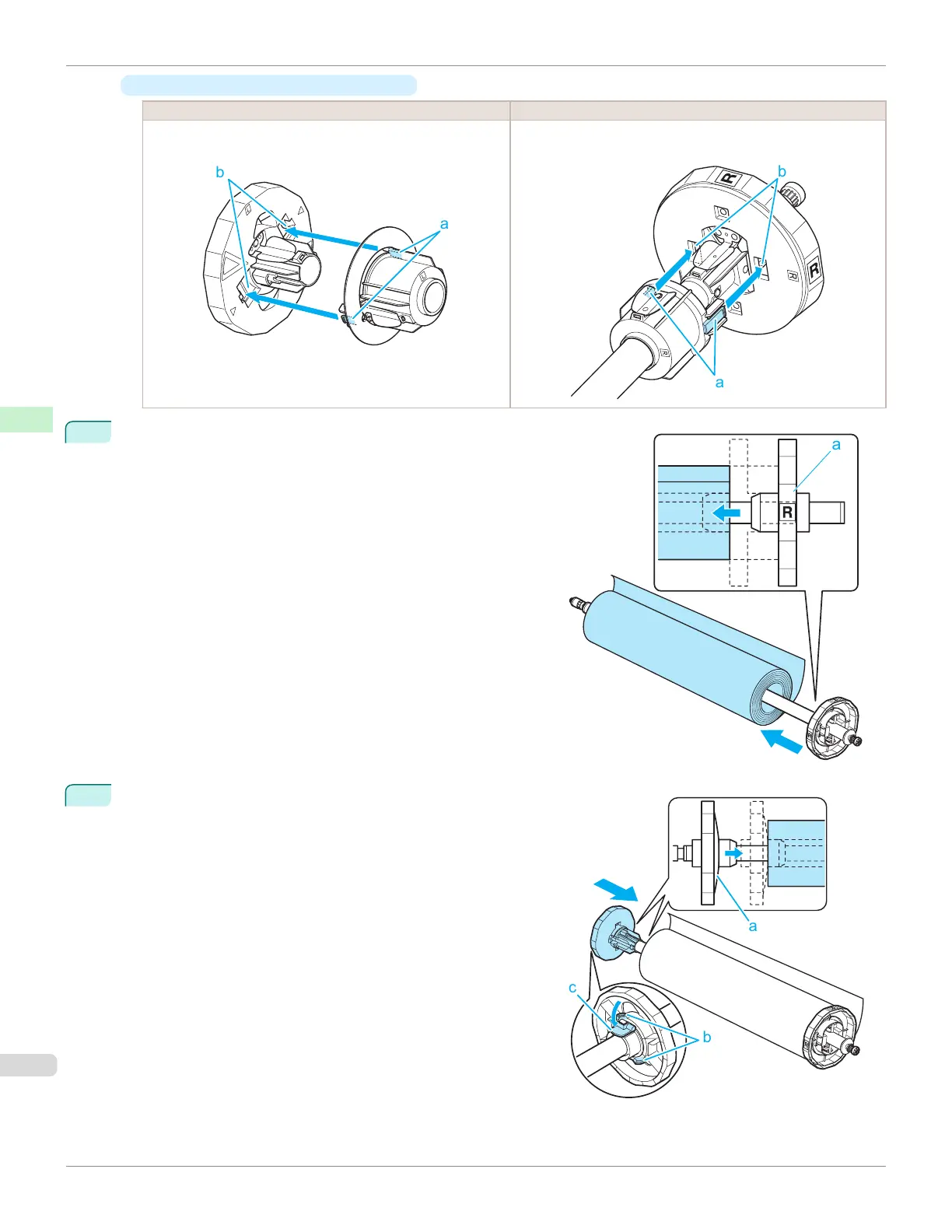

Align the tips (a) of the 3-Inch Paper Core Attachment L with
the holes (b) of the Holder Stopper and insert it firmly.
b
a
Align the tips (a) of 3-Inch Paper Core Attachment R with the
holes (b) of the Roll Holder and insert it firmly.
b
a
3
With the edge of the roll paper facing forward as shown, insert
the Roll Holder from the right of the roll. Insert it firmly until the
roll touches the flange (a) of the Roll Holder, leaving no gap.
4
Insert the Holder Stopper from the left in the Roll Holder as
shown. Holding it at the position shown (b), push it firmly in un-
til the flange (a) of the Holder Stopper touches the roll. Lock
the Holder Stopper lever (c) by pushing it down toward the
shaft side.
a
c
b
a
