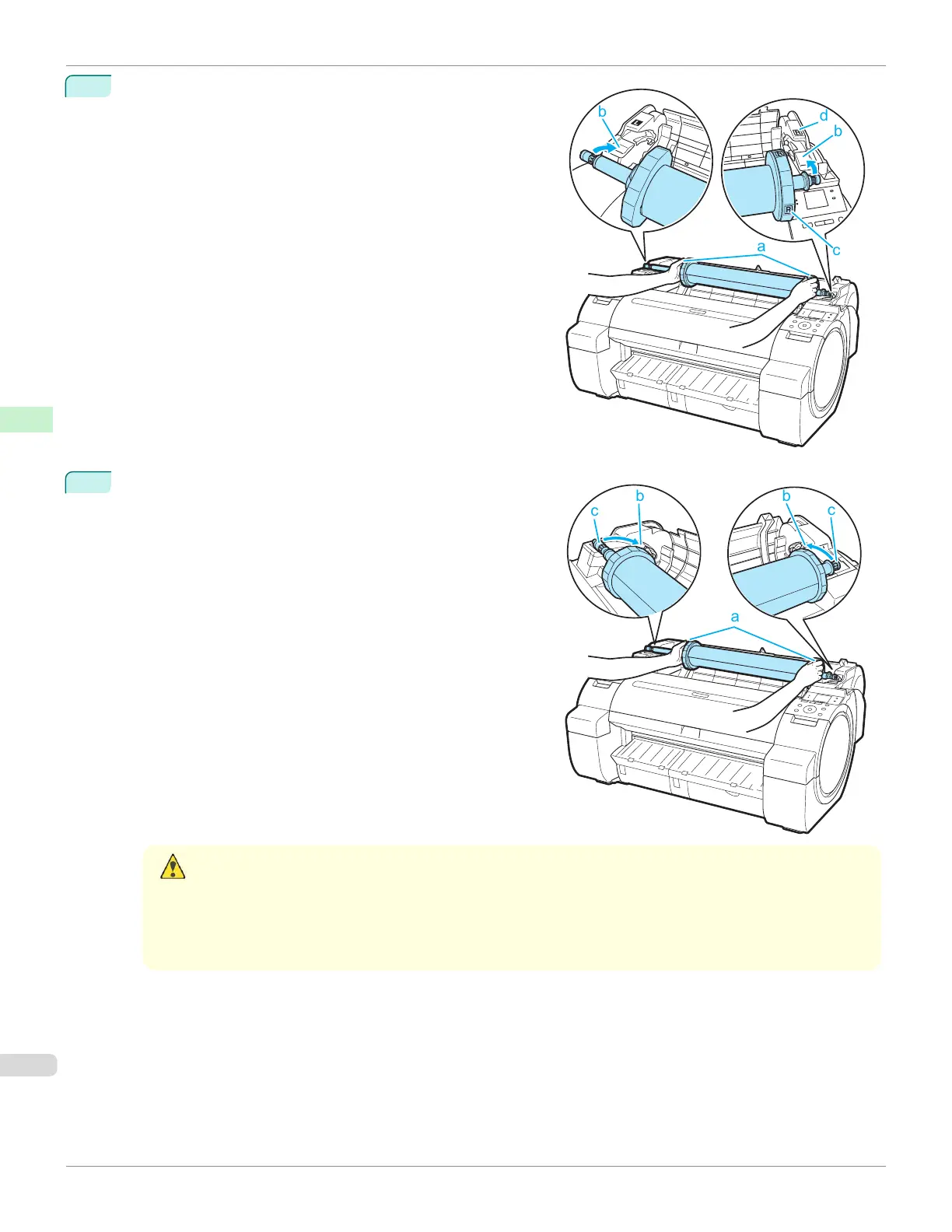

Holding the Roll Holder flange (a), rest the Roll Holder shaft on
the Roll Ledge (b).
At this time, position the holder so that the R label (c) on the
[W label (c) on the Roll Holder flange is aligned with the R la-
bel (d) on the printer .
5
Holding the Roll Holder flange (a), guide the holder along the
Roll Loading Slots (b) on both ends, keeping the holder level
as you load it in the Roll Holder Slot.
Caution
•
Do not force the Roll Holder into the printer with the right and left ends reversed. This may damage the printer
and Roll Holder.
•
Do not release the flanges until the holder is loaded in the Roll Holder Slot.
•
Be careful not to pinch your fingers between the Roll Loading Slots (b) and the Roll Holder shaft (c) when
loading rolls.
