Canon iPF671 - Page 145

Chapter 4
4-9
MEMO:
The rear upper cover [1] and upper cover [2] can be removed together.
F-4-16
j) Rear Cover

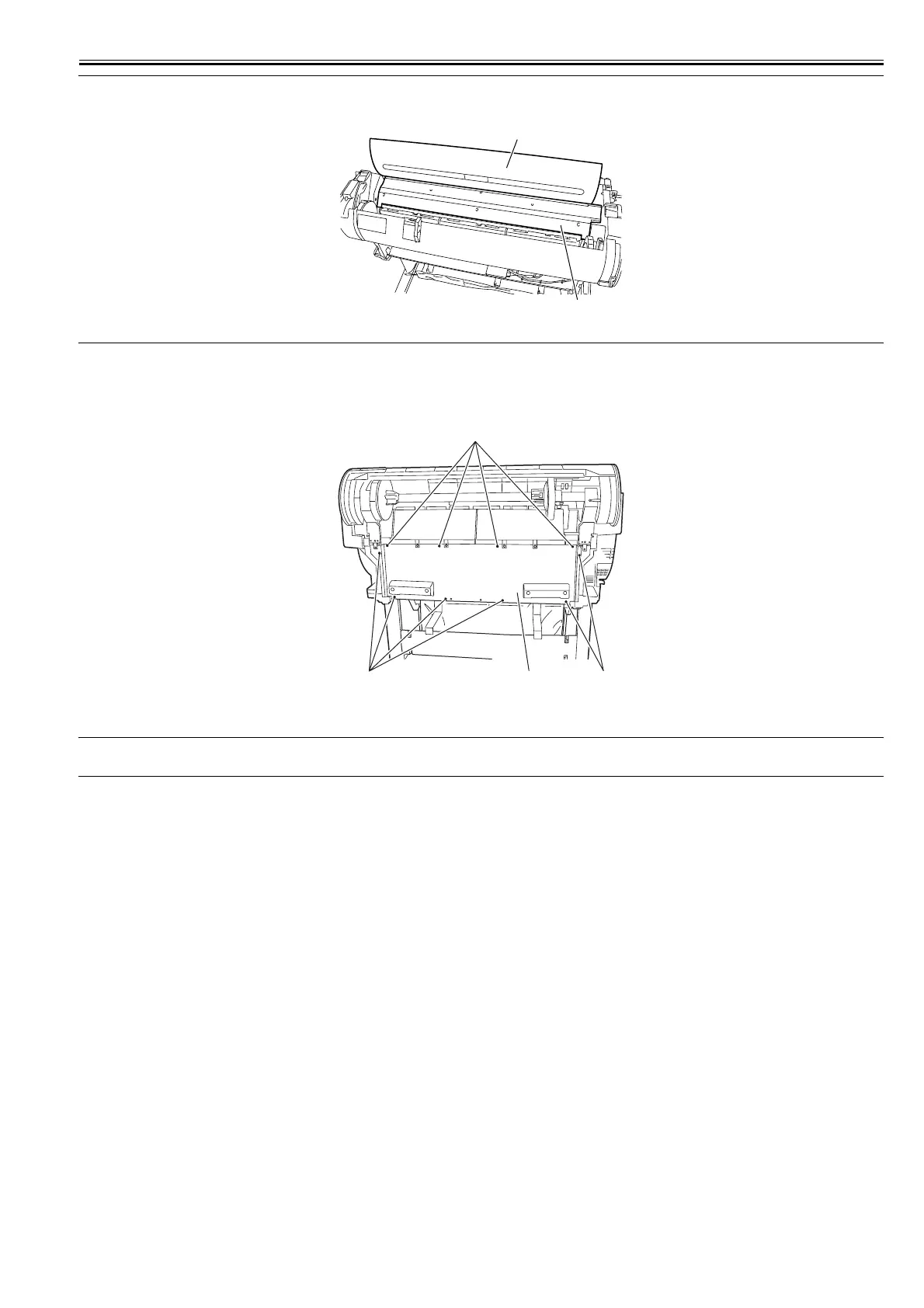

Removing the Rear Cover
1) To remove the rear cover [2], remove ten screws [1].
F-4-17
k) Roll Feed Unit
Removing the Roll Feed Unit
MEMO:
Open/close the roll cover as needed.
[2]
[1]
[1]
[1] [1][2]
