Product Overview > Name of Parts > Cross Sectional View > D1300 Series
Product Overview > Name of Parts > Cross Sectional View > D1300 Series
■

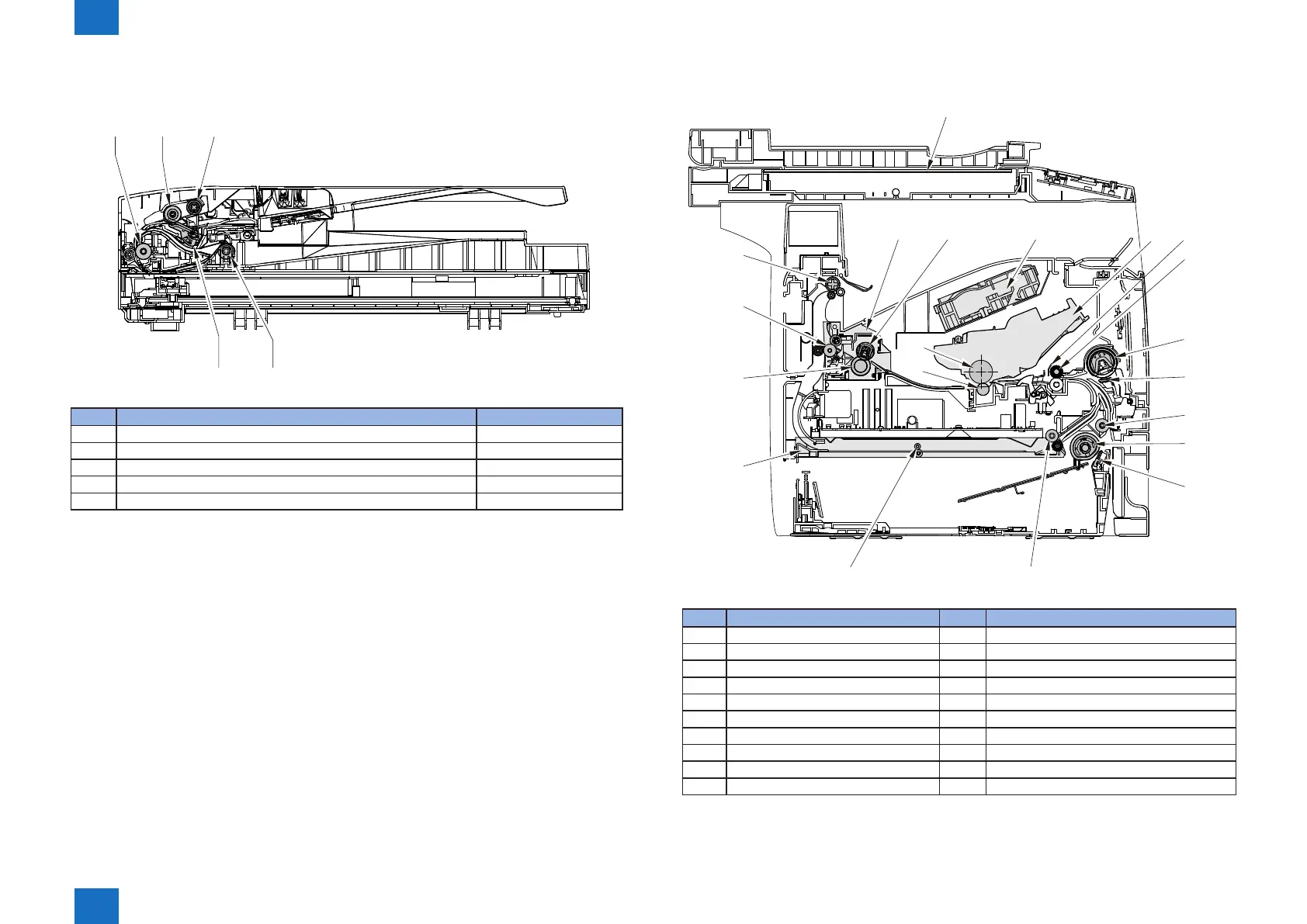

D1300 Series
ADF / Reader Unit
[1]
[5]
[2] [3]
[4]
Key Name Reference
[1] ADF Paper Feed Roller
[2] ADF Separation Roller
[3] ADF Pickup Roller
[4] ADF Delivery roller
[5] ADF Separation Pad
F-1-9
T-1-15
Printer
[1]
[11]
[2]
[12]
[3]
[13]
[4]
[14]
[5]
[15]
[6]
[16]
[7]
[17]
[8]
[18]
[9]
[19]
[10]
[20]
Key Name Key Name
[1] Fixing delivery roller [11] MP tray pickup roller
[2] Face-down delivery roller [12] MP tray separation pad
[3] Fixing unit [13] Feed roller
[4] Fixing lm unit [14] Cassette pickup roller
[5] Pressure roller [15] Cassette separation pad
[6] Laser scanner unit [16] Duplex re-pickup roller
[7] Copyboard glass (scanning glass) [17] Transfer roller
[8] Cartridge [18] Photosensitive drum
[9] Registration shutter [19] Duplex feed roller
[10] Registration roller [20] Duplex feed unit
F-1-10
T-1-16
