Disassembly/Assembly > External Cover (MF5900/MF6100) > Removing the Left Rear Cover
Disassembly/Assembly > External Cover (MF5900/MF6100) > Removing the Left Rear Cover

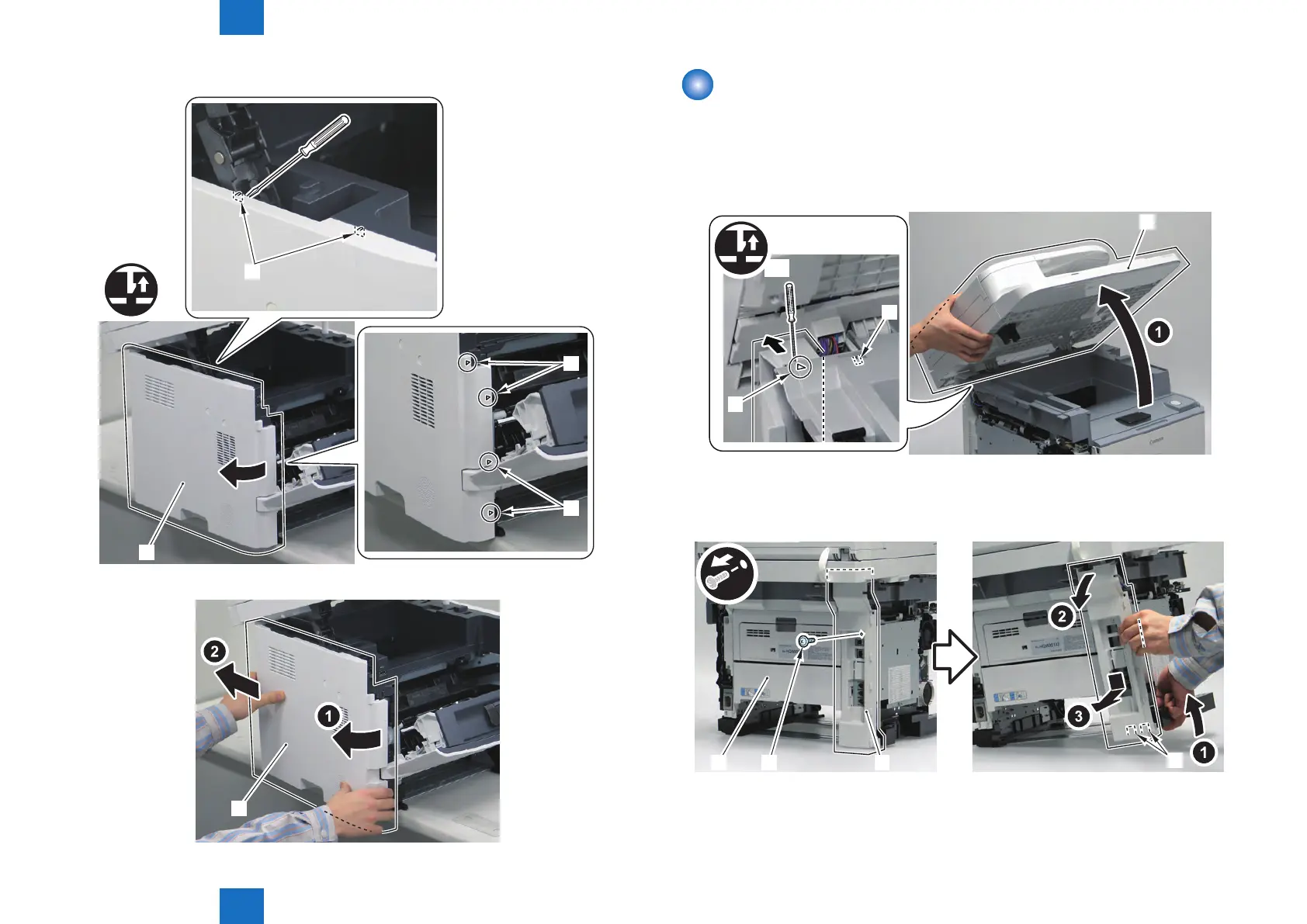

4) Release the 6 Claws [2] of the Left Cover Unit [1].
x6
[2]
[2]
[2]
[1]
5) Remove the Left Cover Unit [1] in the direction of the arrow.
[1]
F-4-39
F-4-40
Removing the Left Rear Cover
Preparations
1) Removing the Left Cover Unit.
Procedure
1) Open the ADF Unit + Reader Unit [1], and release the 2 Claws [2].
[1]
x2
[2]
[2]
2) While lifting left side of the host machine [1], remove the Left Rear Cover [2].
• 1 Screw [3]
• 2 Claws [4]
[1] [2][3]
[4]
F-4-41
F-4-42
