Jam Detection
■
Outline
The printer uses the following sensors to detect the presence of media and to check whether
media is being fed correctly or has jammed:
• TOP Sensor (PS204)
• Fixing Delivery Sensor (PS915)
• Duplex Reverse Sensor (PS201)
• Media Width Sensor (PS205)

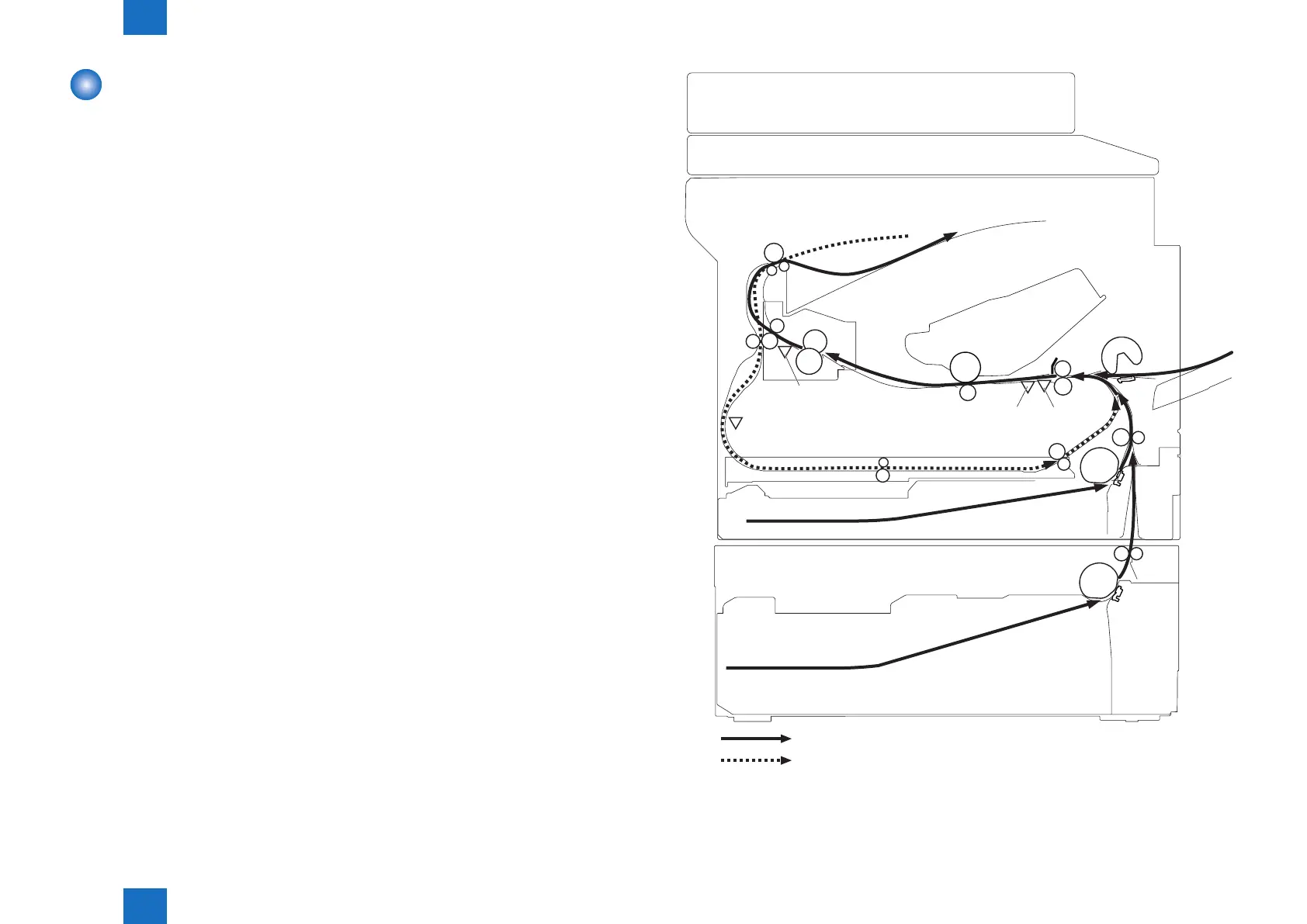

: Simplex media path
: Duplex media path
PS915
PS201
PS205 PS204
F-2-28
