Disassembly/Assembly > External Cover (D1300 Series) > Removing the Left Cover Unit
Disassembly/Assembly > External Cover (D1300 Series) > Removing the Left Cover Unit
External Cover (D1300 Series)
Removing the Left Cover Unit

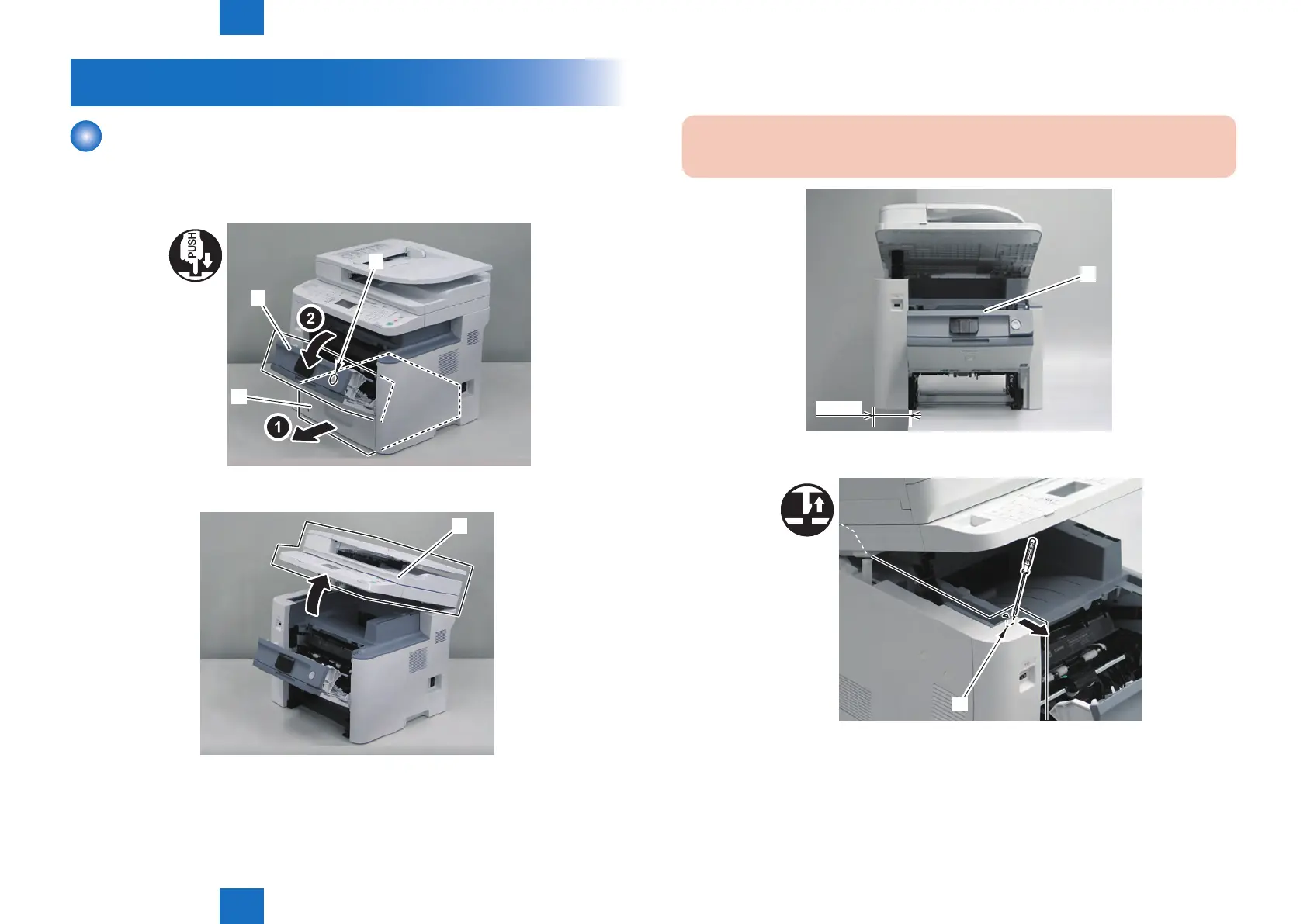

Procedure
1) Remove the cassette [1].
2) Press the Open button [2], and open the Front Cover [3].
[3]
[1]
[2]
3) Open the ADF Unit + Reader Unit [1].
[1]
F-4-9
F-4-10
4) Place the host machine [1] while shifting the left side of it approx. 10cm from the working
table to release the claw at the lower side of the Left Cover Unit.
CAUTION:
Be careful not to drop the host machine when shifting it.
100 mm
[1]
5) Release the claw [1].
[1]
F-4-11
F-4-12
