Disassembly/Assembly > External Cover (MF5900/MF6100) > Removing the Right Cover
Disassembly/Assembly > External Cover (MF5900/MF6100) > Removing the Right Cover

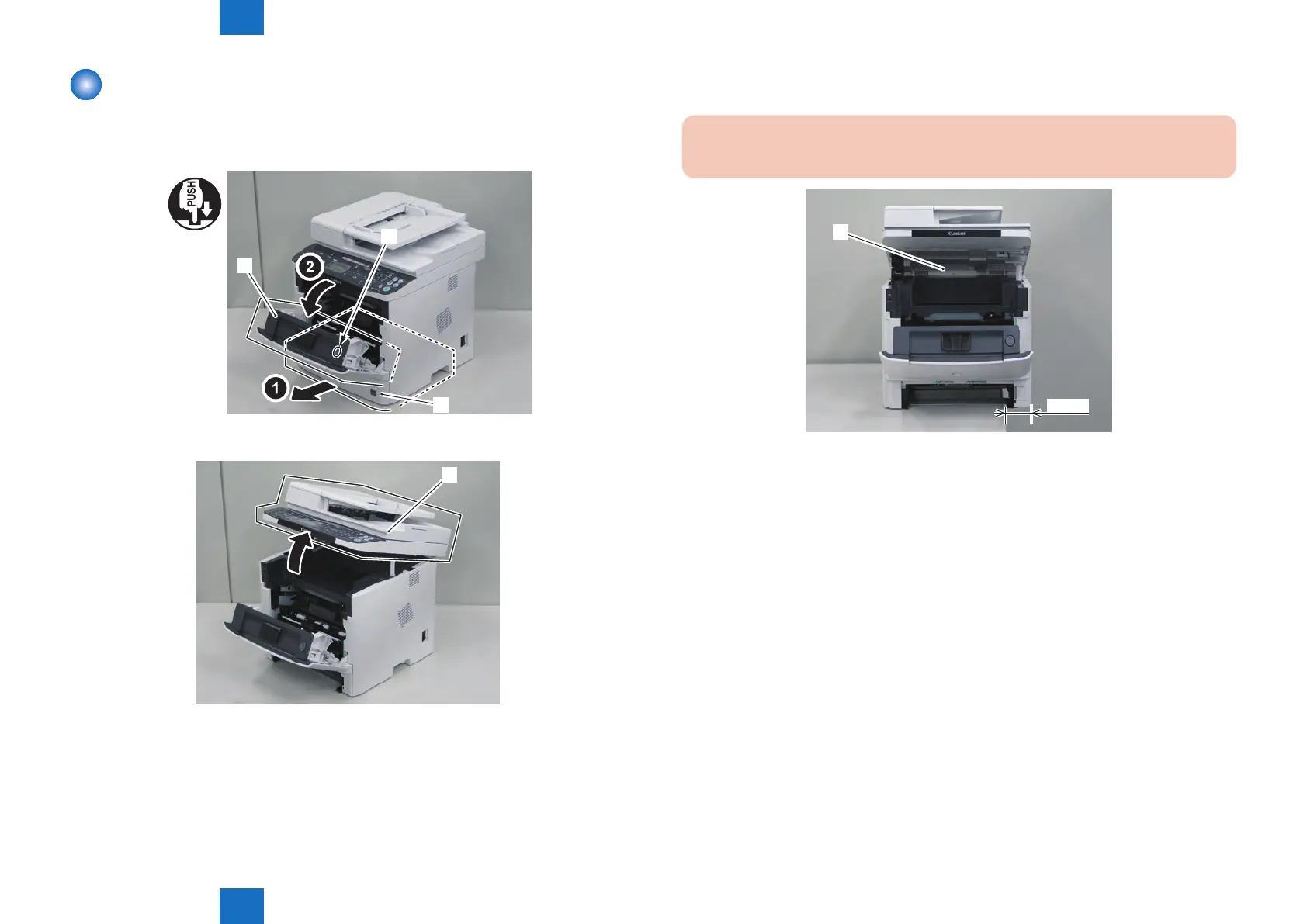

Removing the Right Cover
Procedure
1) Remove the cassette [1].
2) Press the Open button [2], and open the Front Cover [3].
[3]
[1]
[2]
3) Open the ADF Unit + Reader Unit [1].
[1]
F-4-43
F-4-44
4) Place the host machine [1] while shifting the left side of it approx. 10cm from the working
table to release the claw at the lower side of the Right Cover Unit.
CAUTION:
Be careful not to drop the host machine when shifting it.
[1]
10 cm
F-4-45
To Next Page
