4
4
4-24
4-24
Disassembly/Assembly > External Cover (MF5900/MF6100) > Removing the Rear Cover Unit
Disassembly/Assembly > External Cover (MF5900/MF6100) > Removing the Rear Cover Unit

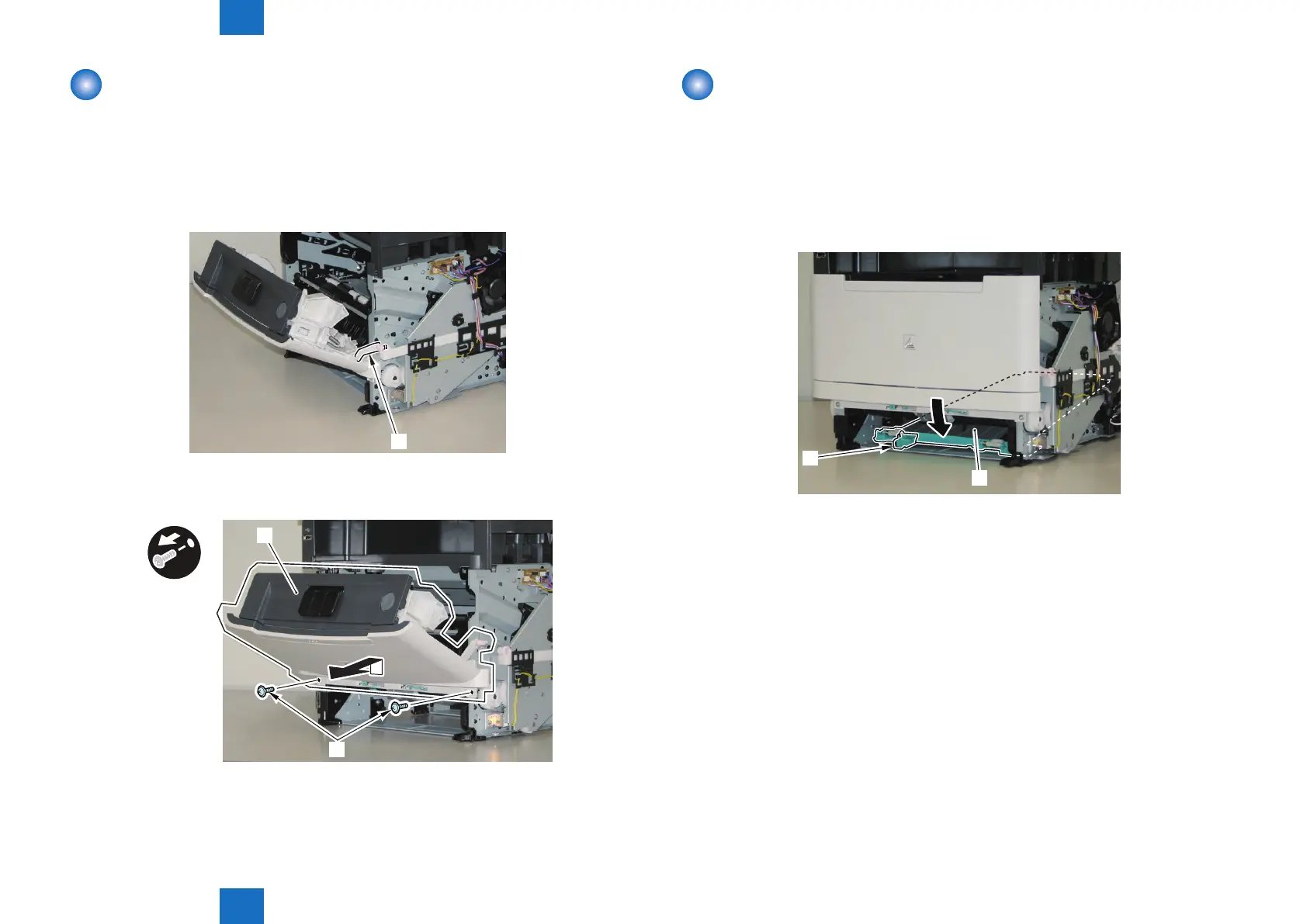

Removing the Front Cover
Preparations
1) Removing the Left Cover Unit.
2) Removing the Right Cover Unit.
Procedure
1) Remove the Link Arm [1].
[1]
2) Remove the Front Cover [1].
2 Screws [2]
[1]
[2]
x2
F-4-48
F-4-49
Removing the Rear Cover Unit
Preparations
1) Removing the Left Cover Unit.
2) Removing the Left Rear Cover.
3) Removing the Right Cover Unit.
Procedure
1) Push the Grip [1] Downward and Open the Duplex Feed Unit [2].
[2]
[1]
F-4-50
