Disassembly/Assembly > Document Exposure / Delivery System > Removing the ADF Unit + Reader Unit
Disassembly/Assembly > Document Exposure / Delivery System > Removing the ADF Unit + Reader Unit

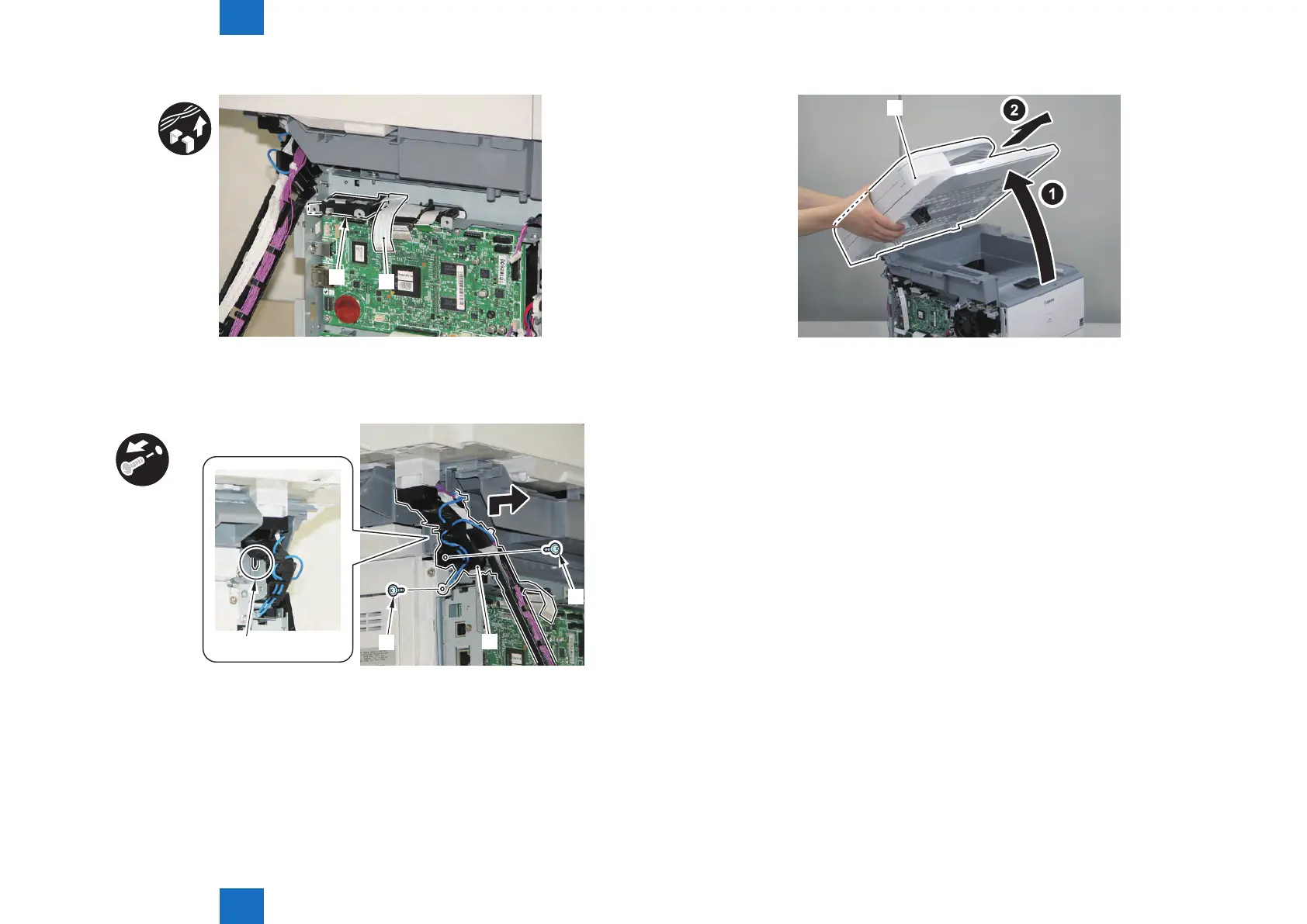

4) Remove the Flat Cable [1] from the [A].
[1]
[A]
5) Remove the ADF Harness Guide [1].
• 2 Screws [2]
• 1 Hook [3]
[2]
[2]
[1]
x2
[3]
F-4-58
F-4-59
6) Remove the ADF Unit + the Reader Unit [1] In the Direction of the Arrow.
[1]
F-4-60
