Disassembly/Assembly > Controller System > Removing the Engine Controller Unit
Disassembly/Assembly > Controller System > Removing the Engine Controller Unit

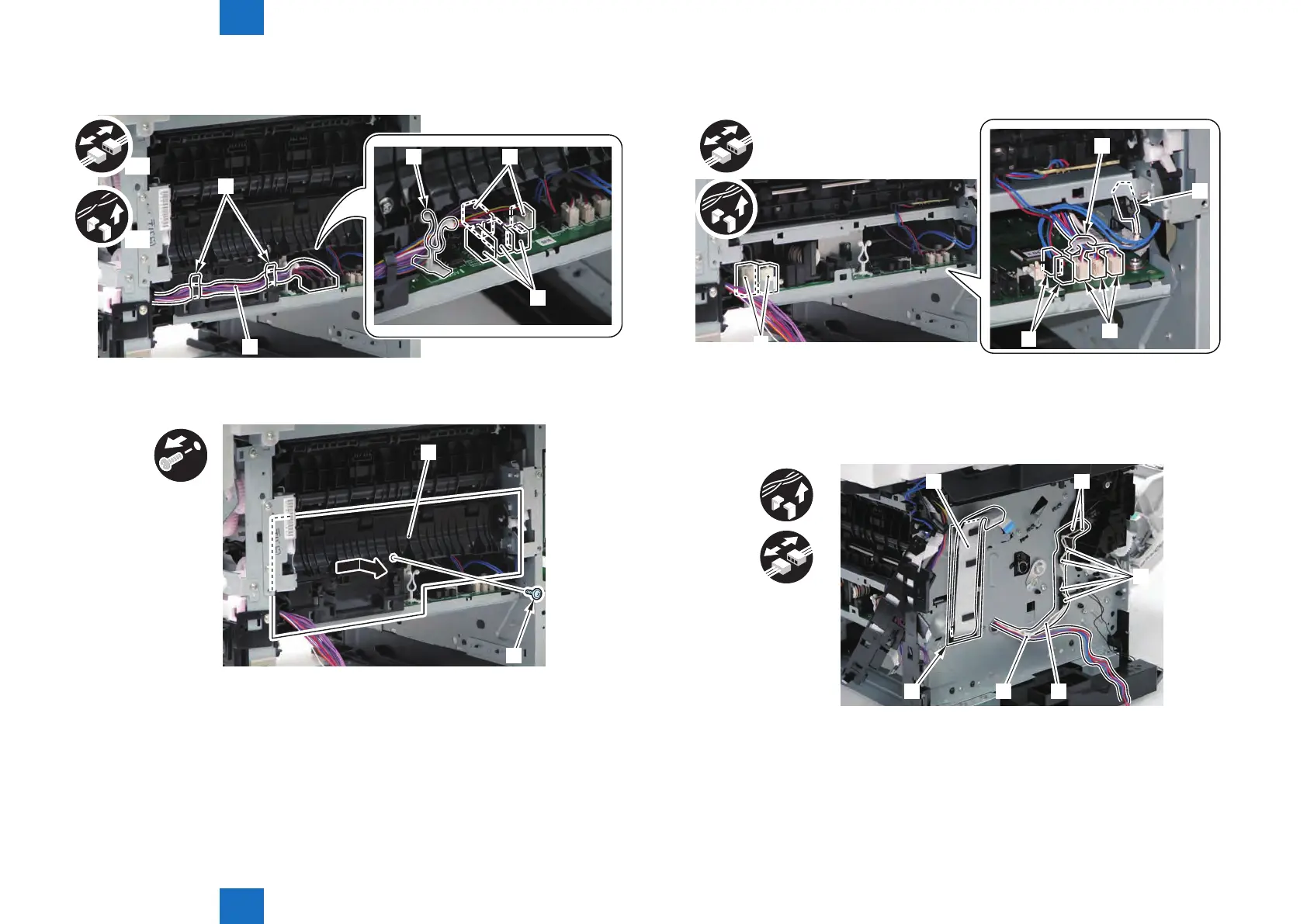

2) Remove the Harness [1] from the Harness Guide [4].
• 5 Connectors [2]
x5
[2]
[4]
[1]
[2]
x3
[3]
3) Remove the Feed Guide [1].
• 1 Screw [2]
[1]
[2]
F-4-114
F-4-115
4) Remove the 7 Connectors [1] and the Terminal [2].
• 1 Wire Saddle [3]
[1]
x8
[1]
[1]
[2]
[3]
5) Remove the Harness [1] and the Flat Cable [2] from the Harness Guide [3].
• 2 Terminals [4]
• 1 Wire Saddle [5]
x2
[1]
[2]
[3]
[4]
[5]
[3]
F-4-116
F-4-117
