Capron A72 User Manual

Electrical system
Capron - 3141417 - 03/20 - EHG-0021-02EN 101
9

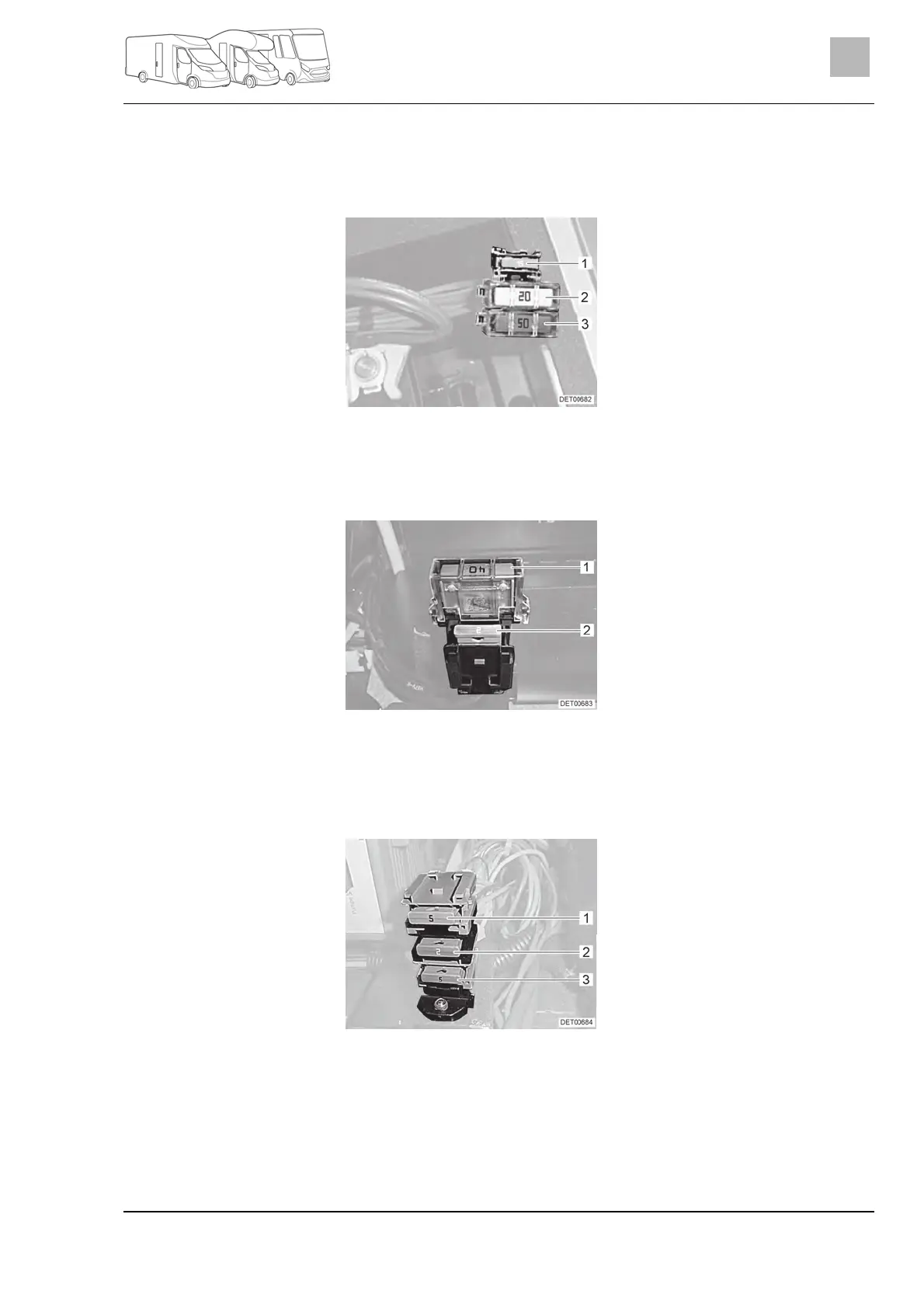

The fuses are installed in the vicinity of the starter battery. The starter bat-
tery is on the floor between the seats in the driver's cabin and can be ac-
cessed under a cover.
1 Flat fuse 15 A/blue
(control for relay)
2 Jumbo flat fuse 20 A/yellow
(back-up fuse for refrigerator)
3 Jumbo flat fuse 50 A/red
(fuse protection for starter battery)
Fig. 101 Fuses on the starter battery
The fuses are installed in the console of the right-hand seat in the driver's
area.
1 Jumbo flat fuse 40 A/orange
(fuse protection for living area bat-
tery)
2 Flat fuse 2 A/grey
(control 12 V/control unit)
Fig. 102 Fuses on the living area bat-
tery
The fuses are installed in the console of the left-hand seat in the driver's
area.
1 Flat fuse 5 A/beige
(Side marking lights)
2 Flat fuse 2 A/grey
(Control D+)
3 Flat fuse 5 A/beige
(Side marking lights)
Fig. 103 Fuses next to the trans-
former/rectifier
The toilet has a maintenance-free fuse which resets automatically.
Fuses on the starter
batter
y
Fuses on the living area
batter
y
Fuses next to the
transformer/rectifie
r
Fuse for the Thetford
toilet
