7.8 TV unit
 Before commencing the journey, bring the flat screen and screen
holder into the driving position.
 The information about the operation of the TV unit can be obtained in the
manufacturer's instruction manual.
The flat screen is attached to a console in the TV compartment above the
refrigerator.

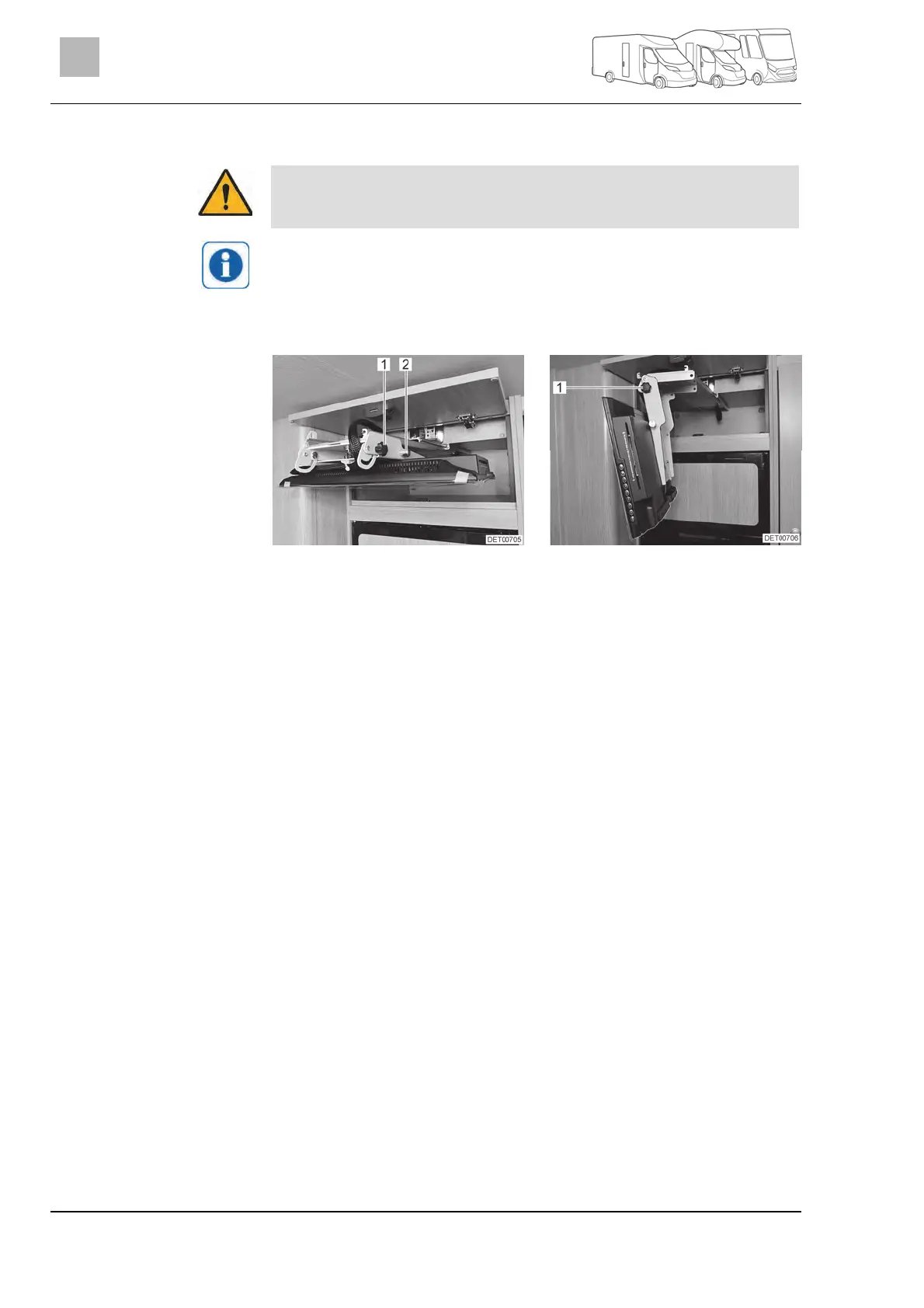

Fig. 65 Flat screen in the TV com-
partment
Fig. 66 Flat screen in television posi-
tion
 Open the TV compartment.
 Pull the flat screen horizontally out of the TV compartment.
 Hold the flat screen and pull the catch pin (Fig. 65,2).
 Swivel the flat screen downward into the desired position. If it is hard to
move the flat screen, open the adjustment knobs (Fig. 65,1) slightly on
both sides of the holder.
 Rotate the flat screen into the desired position. Tighten the adjustment
knobs (Fig. 66,1) by hand.
 Rotate the flat screen until it is parallel to the cabinet front.
 Open the adjustment knobs (Fig. 66,1) slightly on both sides of the
holder.
 Swivel the flat screen upwards while pulling the catch pin (Fig. 65,2).
 When the flat screen is touching the bracket, release the catch pin
(Fig. 65,2). The catch pin must engage in the hole of the holder.
 Push the flat screen horizontally into the TV compartment as far as it will
go.
 Close the TV compartment.
Flat screen in the TV
compartment
Bringing the flat screen into
the television position:
Bringing the flat screen into
the driving position:
