Living
62
Capron - 3141417 - 03/20 - EHG-0021-02EN
7
Depending on the equipment, the skylight will be equipped with a forced
ventilation (Fig. 52,1). The skylights with forced ventilation are installed in
the living area and in the toilet compartment.

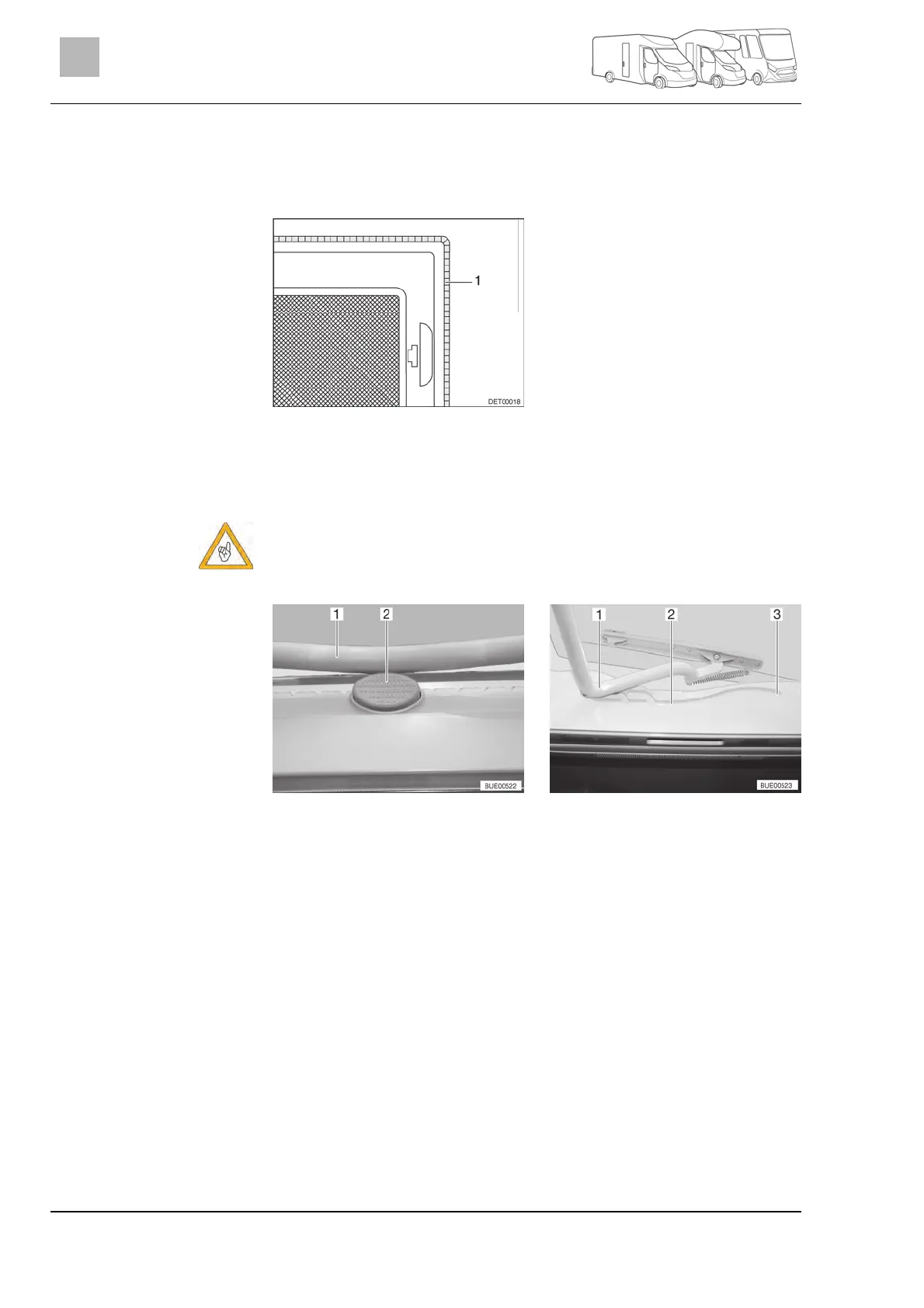

Fig. 52 Forced ventilation
7.5.2 Heki skylight (mini and midi)
The Heki skylight can be damaged at high speeds. Therefore, do not
drive the vehicle faster than 160 km/h.
Fig. 53 Safety knob (Heki skylight) Fig. 54 Guide (Heki skylight)
The Heki skylight is opened on one side only.
Press the safety knob (Fig. 53,2) and pull the bar (Fig. 53,1) down with
both hands.
Pull the bar (Fig. 54,1) in the guides (Fig. 54,2) to the rearmost position
(Fig. 54,3).
Use both hands to push the bar (Fig. 54,1) slightly upwards.
Push the bar back in the guides.
Push the bar upwards with both hands until it is above the safety knob
(Fig. 53,2).
Forced ventilation
Opening:
Closing:
