Sanitary fittings
Capron - 3141417 - 03/20 - EHG-0021-02EN
133
11
11.6.1 Swivel toilet
The flushing of the toilet is fed directly from the water system of the vehicle.

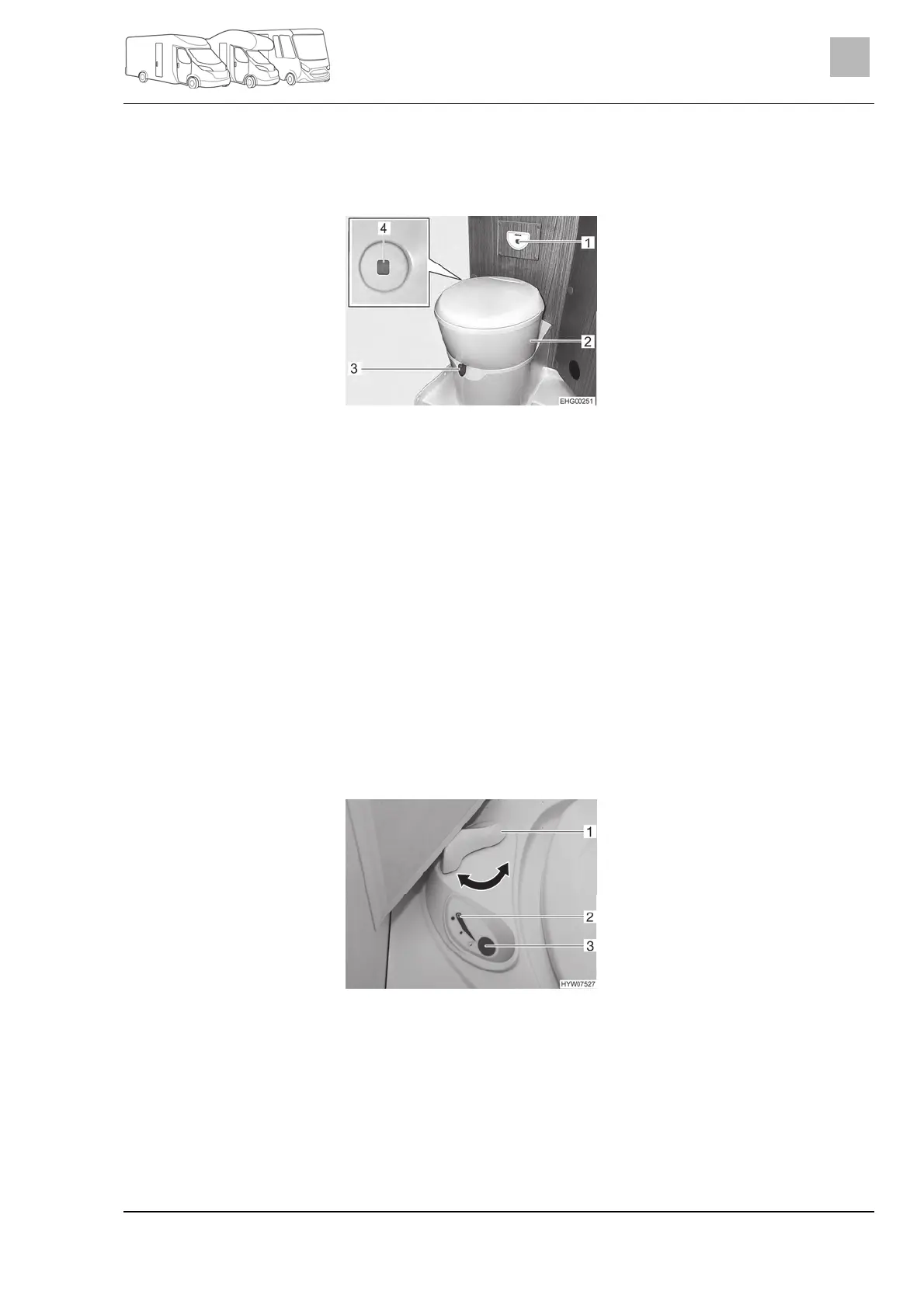

Fig. 142 Toilet
The toilet bowl can be rotated into the required position. In order to do this,
grab the toilet's upper part (Fig. 142,2) with both hands and rotate it.
The operating unit with the flush button (Fig. 142,1) is installed near to the
toilet bowl.
Before flushing open the sliding trap of the toilet. To do this, push the
slide lever (Fig. 142,3) in an anticlockwise direction.
For flushing, press the blue flush button (Fig. 142,1).
After flushing close the sliding trap. To do this, push the slide lever in a
clockwise direction.
The colour of the level indicator (Fig. 142,4) changes from green to red
whenever the sewage tank has to be emptied.
11.6.2 Toilet with fixed seat
The flushing of the toilet is fed from the water system of the vehicle.
Fig. 143 Operating unit Thetford toilet
Before flushing open the sliding trap of the Thetford toilet. To do this,
turn the slide lever (Fig. 143,1) in an anticlockwise direction.
For flushing, press the blue flush button (Fig. 143,3).
After flushing close the sliding trap. To do this turn the slide lever
(Fig. 143,1) in a clockwise direction.
The indicator lamp (Fig. 143,2) lights up whenever the Thetford cassette has
to be emptied.
