Sanitary fittings
Capron - 3141417 - 03/20 - EHG-0021-02EN
131
11
11.5 Vario toilet compartment
Only remove the inner part of the toilet compartment panelling when the
toilet door is closed.
When converting into the shower cubicle, perform the conversion steps
in the specified order.
If the small swivel wall is swivelled too early, it will be positioned behind
the large swivel wall and damage may result. Furthermore, it will no
longer be possible to open the bathroom unit door.
Depending on the model, the Vario toilet compartment is installed re-
verse to the one shown here. The conversion is then also done reverse
to the Vario toilet compartment shown.
Depending on the model, the vehicle is fitted with a Vario toilet compart-
ment. A Vario toilet compartment can be changed with few maneuvers so
that when the shower is in use, the toilet is available in its own enclosed cu-
bicle. This protects the toilet area from water spray.

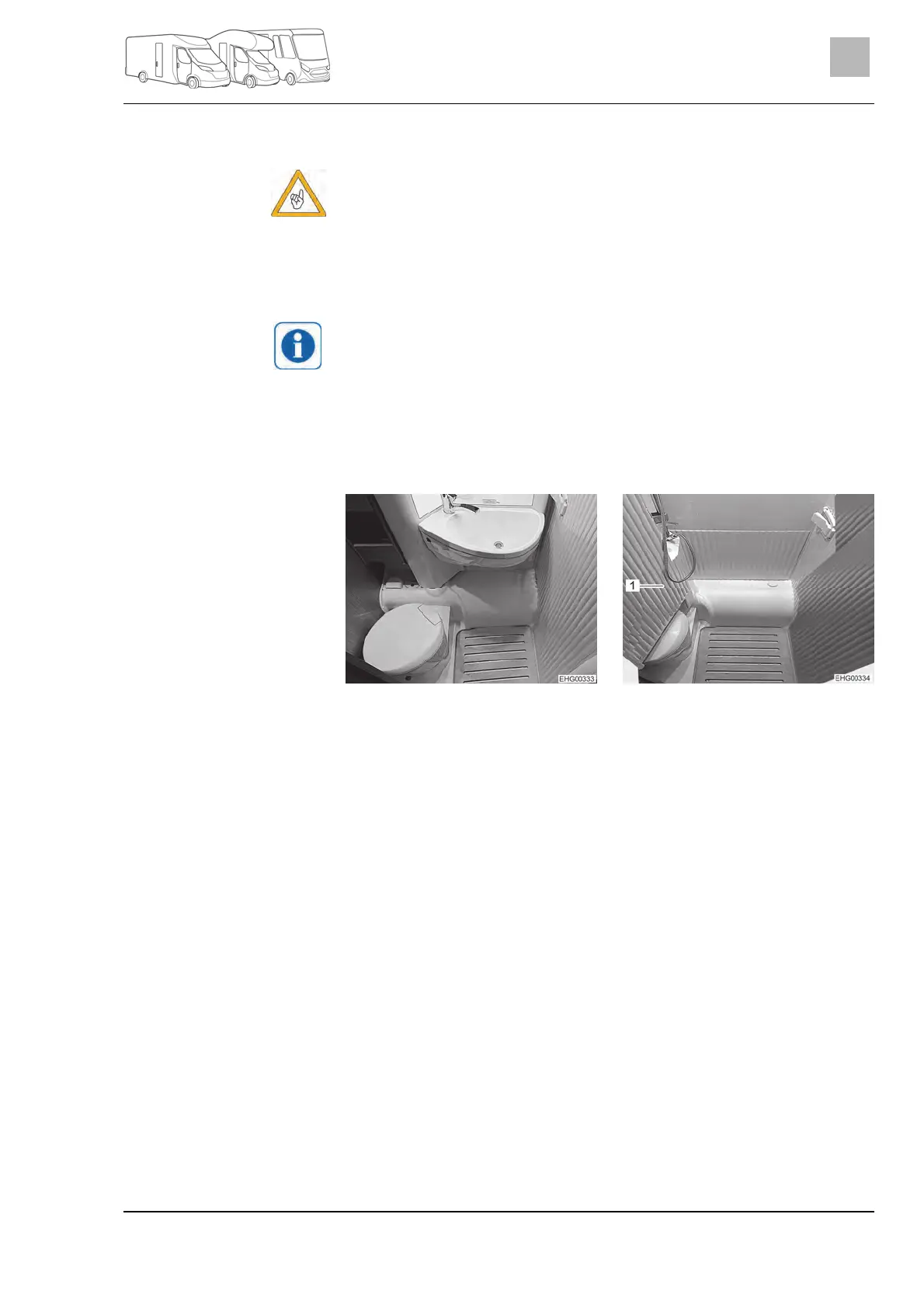

Fig. 138 Toilet seat, rotated to the wall Fig. 139 Large swivel wall, swivelled
Turn the toilet seat to the wall (Fig. 138).
Before entering the bathroom unit: swivel large swivel wall (Fig. 139,1)
with the attached wash basin to the side.
Converting into a shower
cubicle:
