Electrical system
Capron - 3141417 - 03/20 - EHG-0021-02EN
95
9
9.4.4 Charging the battery
When the vehicle engine is running, a relay in the transformer/rectifier alter-
nator switches on the living area battery and the starter battery together and
recharges them with the vehicle generator. When the vehicle engine is
switched off, the batteries are automatically disconnected from one another
again by the transformer/rectifier. This prevents the starter battery from be-
ing run down by electrical appliances in the living area. The starting capabil-
ity of the vehicle is thus preserved. The terminal voltage of the living area
battery or the starter battery can be read on the panel.
If the vehicle is connected to the 230 V power supply via the CEE socket
outlet, the living area battery and the starter battery are charged by the
charger module on the transformer/rectifier. The starter battery is only
charged with a float charge. The charging current is adapted to suit the
charging condition of the battery. This ensures that it is not possible to over-
load the battery.
To make use of the maximum output from the charger module on the trans-
former/rectifier, switch off all electrical appliances during charging.
9.4.5 Assignment of the "SAT preparation" cable
Wire colour Signal Connection
Assignment on the
transformer/rectifier
EBL
Black D+ Plug-in distributor, row 6, purple
Brown Positive Block 5 / pin 9 (fuse for basic light, 15 A)
White Minus Block 5 / pin 12

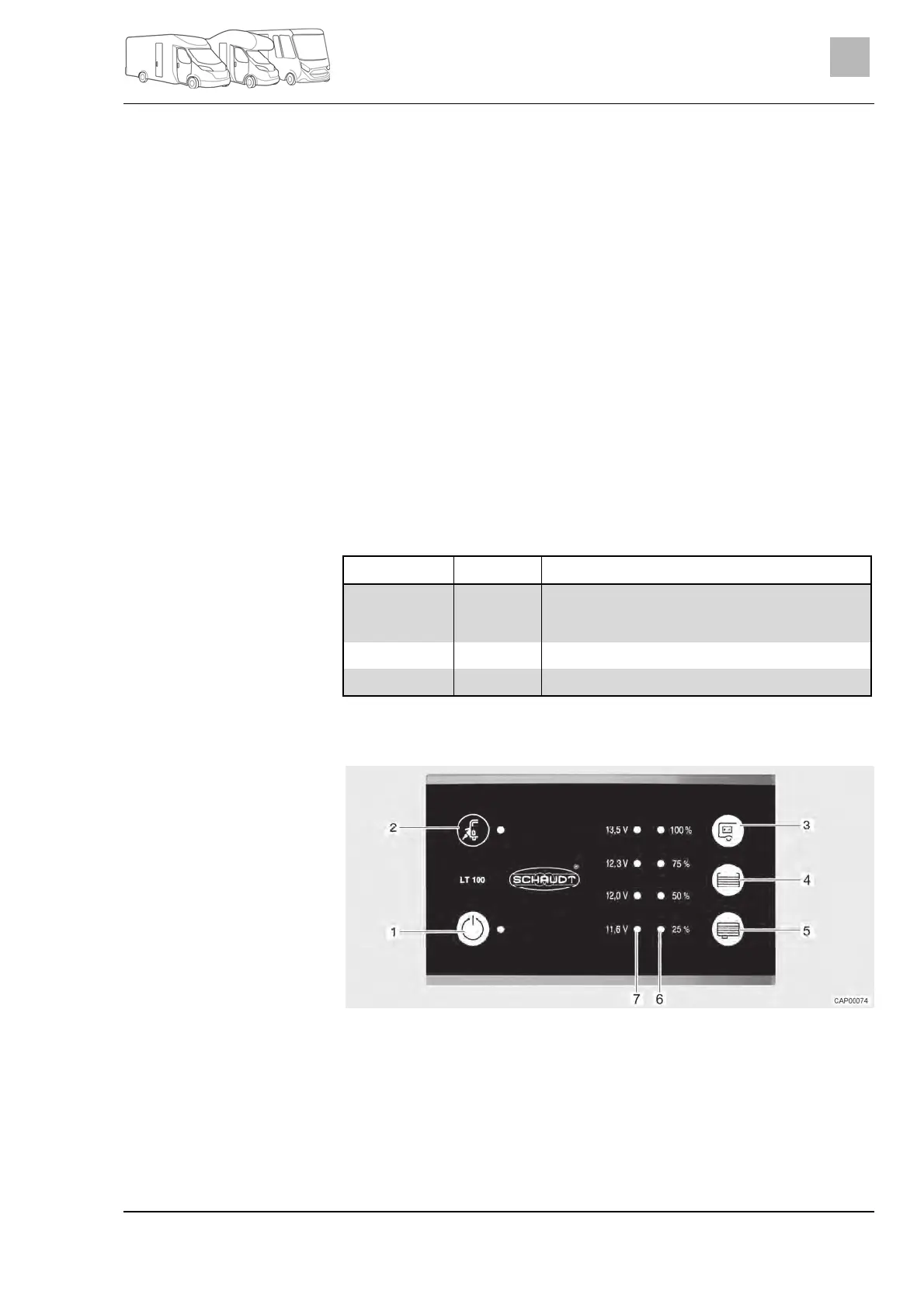

9.5 Panel (LT 100)
Fig. 97 Panel (LT 100)
1 12 V main switch and green LED
2 Mains connection symbol and yellow LED
3 Button to query the voltage of the living area battery
4 Button to query the fill level in the fresh water tank
5 Button to query the fill level in the waste water tank
6 LED array to display the tank fill level
7 LED array to display the battery voltage
