Sanitary fittings
Capron - 3141417 - 03/20 - EHG-0021-02EN
129
11

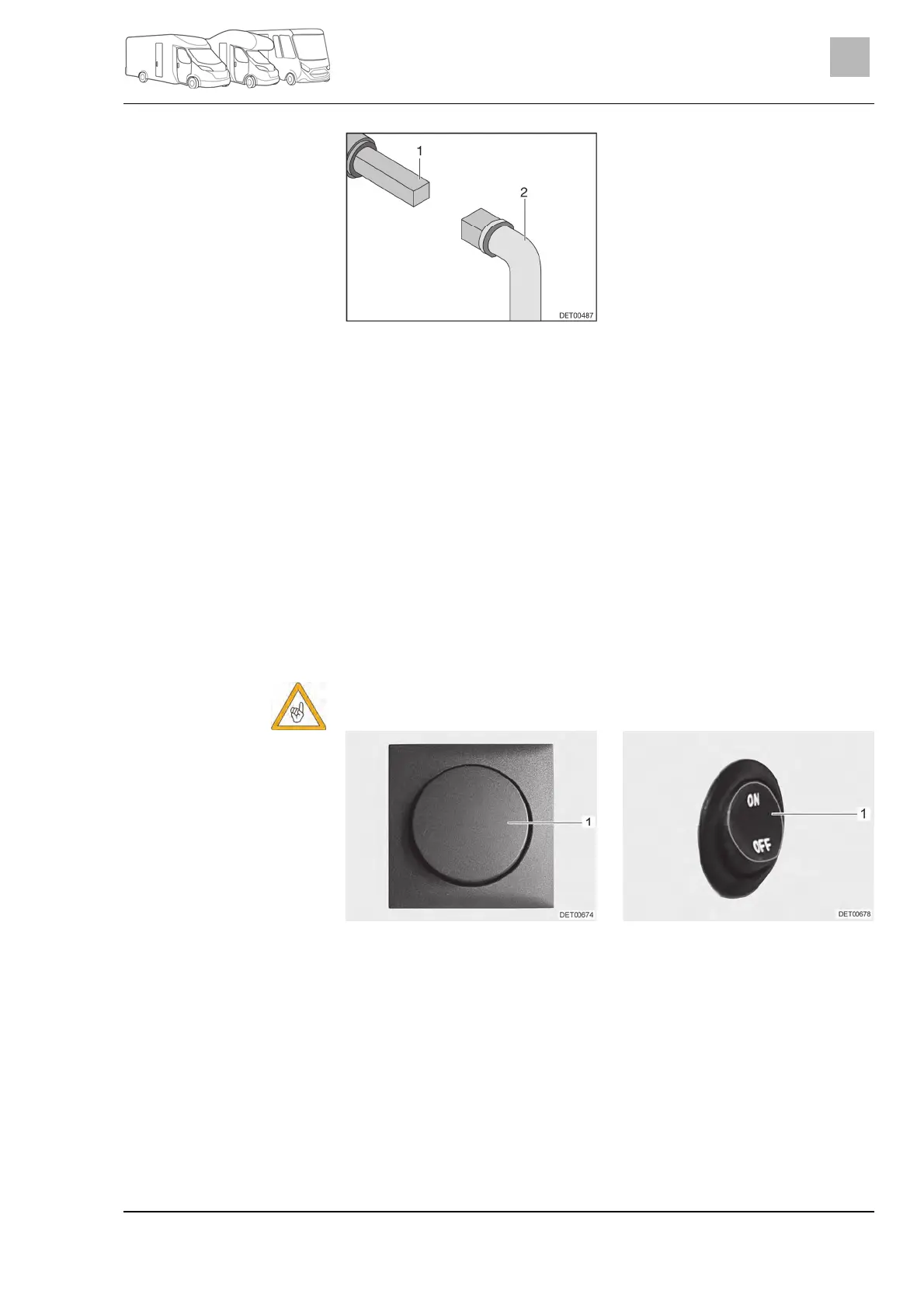

Fig. 133 Operation of the waste water
tap
Depending on the model, the waste water tap for waste water disposal is
located on the left or right hand side of the vehicle.
The square bolt for opening the waste water tap is directly accessible under
the vehicle floor.
Place key (Fig. 133,2) onto the square bolt (Fig. 133,1).
In order to open the waste water tap, turn the square bolt a quarter turn.
Completely empty waste water tank.
To close the waste water tap, turn the square bolt back as far as it will
go.
11.4 Toilet compartment
Do not transport any loads in the shower tray. The shower tray or other
items of equipment in the toilet compartment can be damaged.
Fig. 134 Light switch for toilet com-
partment
Fig. 135 Light switch for toilet com-
partment
The flip switches for the toilet compartment lighting are installed in different
places in the toilet compartment depending on the model.
For example, the light switch (Fig. 134,1 or Fig. 135,1) of the toilet compart-
ment is located in the area below the bathroom cabinet or below the wash
basin.
