8.5 Gas isolator taps
1 Refrigerator
2 Cooker
3 Heater/boiler
4 Oven

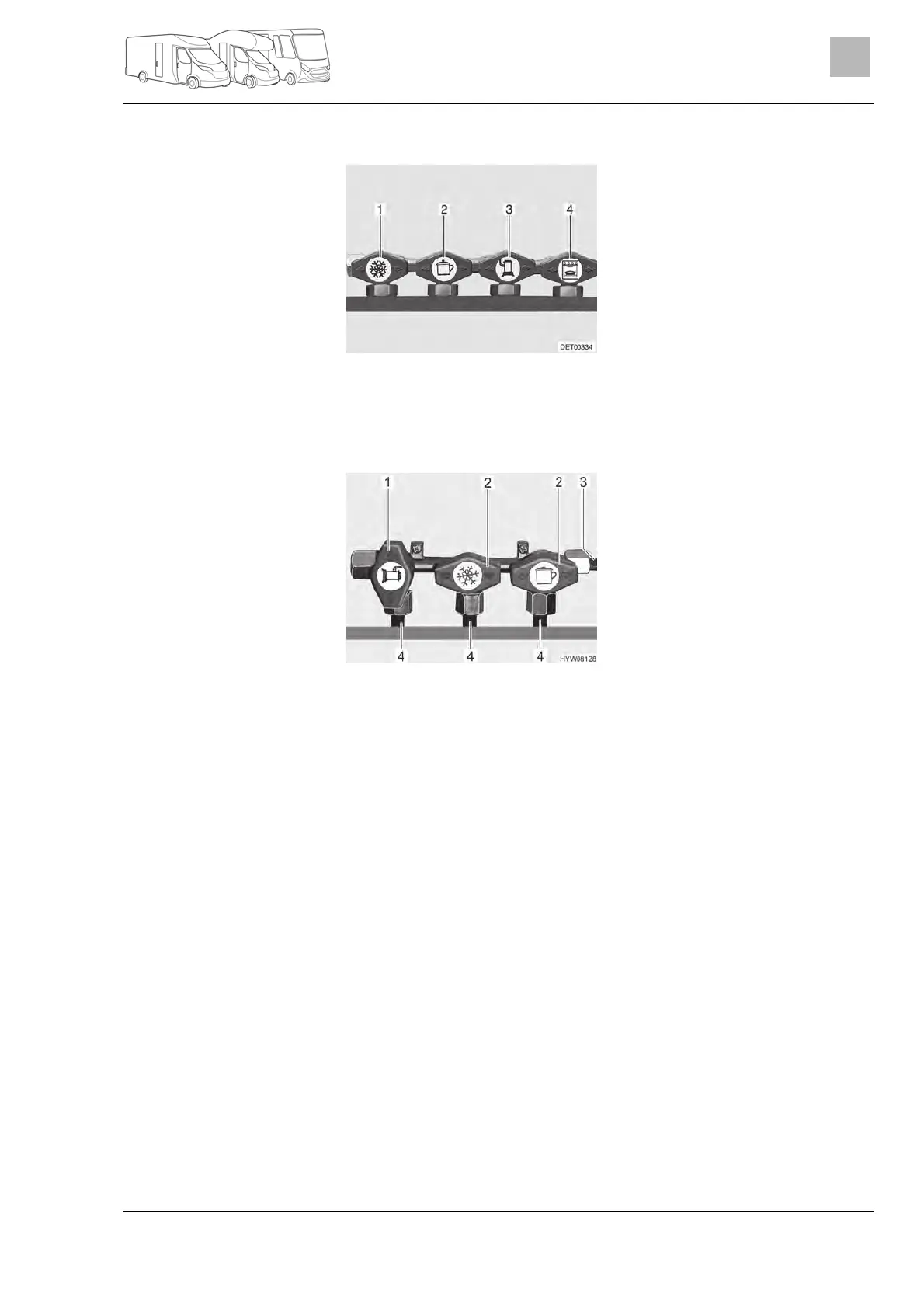

Fig. 94 Symbols for the gas isolator
taps
A gas isolator tap (Fig. 94) for every gas device is built into the vehicle.
The gas isolator taps can be found on the front of the cooker.
1 Gas isolator tap open
2 Gas isolator tap closed
3 Gas pipe
4 Pipe to the gas device
Fig. 95 Gas isolator taps position
(example)
 Position the gas isolator tap of the corresponding gas device parallel
(Fig. 95,1) to the pipe (Fig. 95,4) leading to the gas device.
 Position the gas isolator tap of the corresponding gas device transverse
(Fig. 95,2) to the pipe (Fig. 95,4) leading to the gas device.
Opening:
Closing:
