Capron - 3141417 - 03/20 - EHG-0021-02EN 63
7

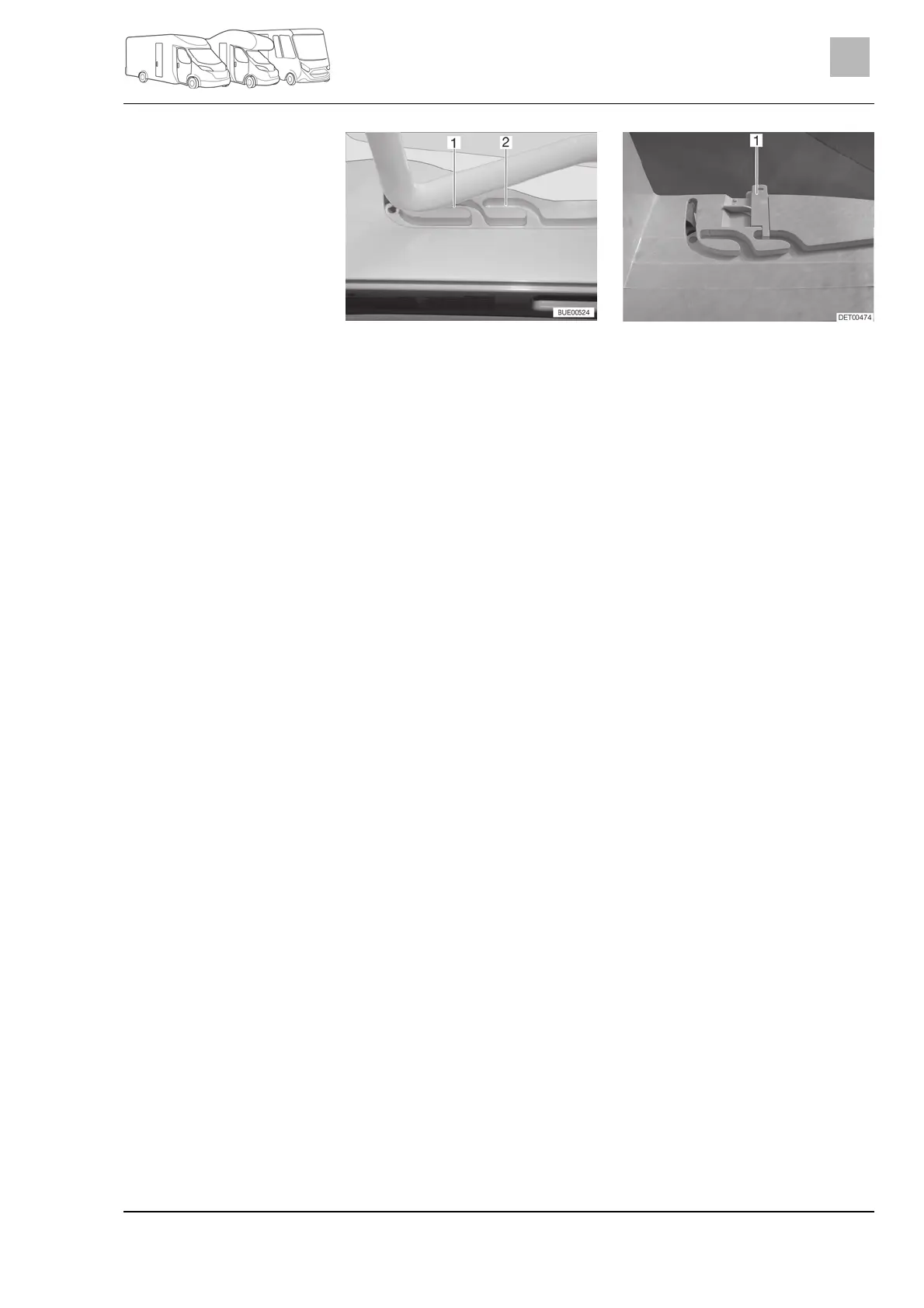

Fig. 55 Guide (ventilation position) Fig. 56 Lock (ventilation position)
The Heki skylight can be put in two ventilation positions: Bad weather posi-
tion (Fig. 55,1) and central position (Fig. 55,2). Depending on the model, the
skylight can be locked in the central position with both left and right latches
(Fig. 56,1) on the skylight frame.
 Press the safety knob (Fig. 53,2) and pull the bar (Fig. 53,1) down with
both hands.
 Pull the bar in the guides (Fig. 54,2) to the desired position.
 Push the bar slightly upwards and into the selected guide (Fig. 55,1
or 2) and lock if necessary.
To close and open the Roman shade:
 Pull out Roman shade at the handle and release in the required position.
The Roman shade will stay in that position.
 Slowly push the Roman shade at the handle to its initial position.
To close and open the insect screen:
 Pull the insect screen by the handle to the opposite handle of the Ro-
man shade.
 Press the rear part of the handle of the insect screen. The latch is re-
leased.
 Use handle to return the insect screen slowly to its initial position.
V
entilation position
Roman shade
Closing:
Opening:
Insect screen
Closing:
Opening:
