Living
72 Capron - 3141417 - 03/20 - EHG-0021-02EN
7

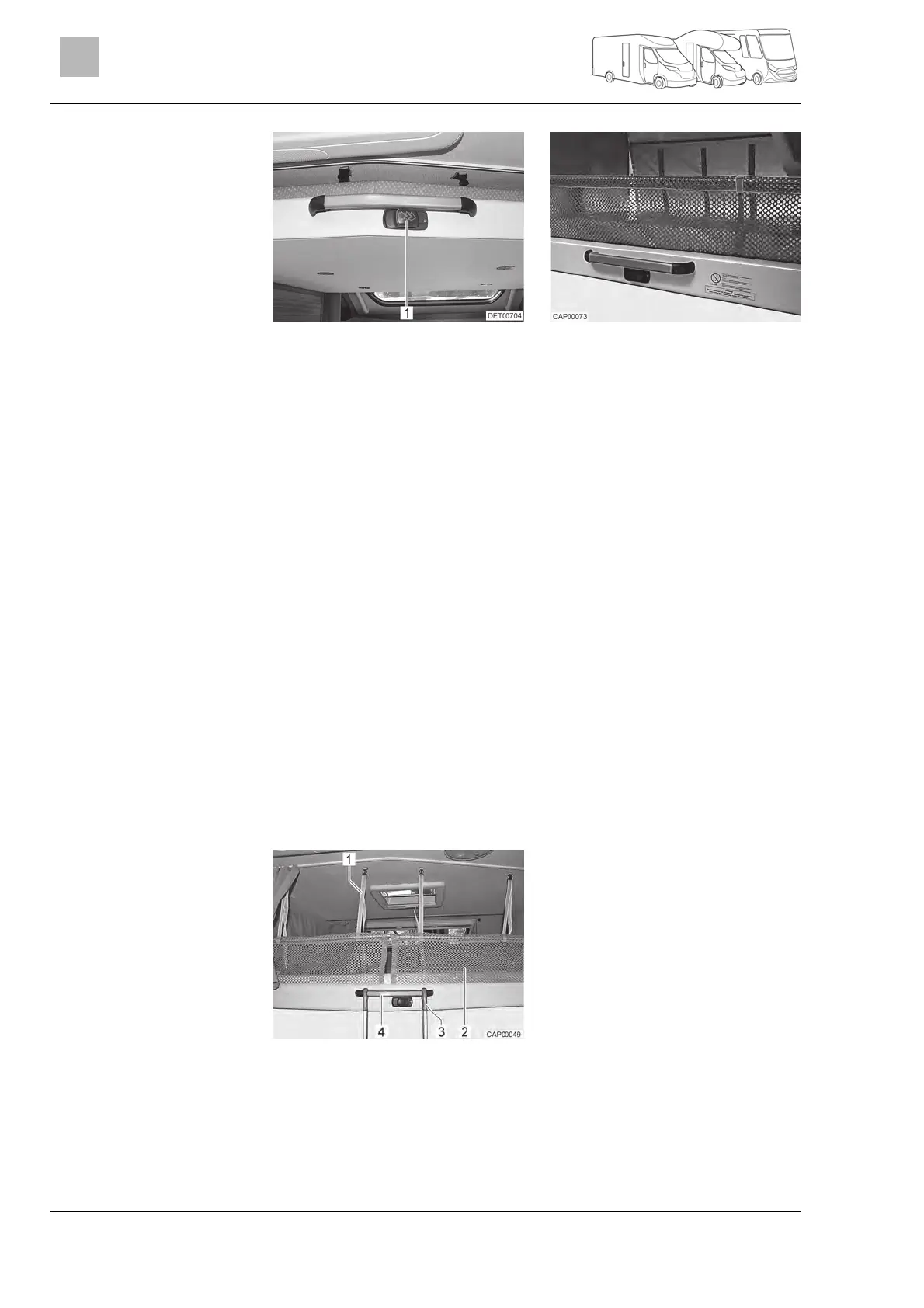

Fig. 73 Pull-down bed with lock Fig. 74 Pull-down bed (model I)
The pull-down bed is located above the front seating group.
The rests of the driver's and front passenger's seats must be tipped for-
wards before the pull-down bed is lowered. To do this, proceed as follows:
 Turn the driver's and the front passenger's seat to the direction of travel,
lock it in place and move them backwards.
 Unlock the backrest and fold it fully forwards.
 Close the shade in the driver's cabin.
 Switch off the lamps on the underside of the pull-down bed.
 Push the driver's seat and the front passenger's seat all the way for-
ward.
 Fold over the back cushion of the divan.
 Open the lock (Fig. 73,1).
 Use both hands to pull the pull-down bed down as far as it will go.
 Switch off the reading lamps in the pull-down bed.
 Loosen the retaining straps of the safety nets and lay the safety nets un-
der the mattress.
 Use both hands to push pull-down bed upwards as far as it will go.
 Make sure that the lock has engaged audibly.
Fig. 75 Access ladder and safety net
Always use the access ladder provided as standard to access the pull-down
bed.
 Hook the access ladder (Fig. 75,3) to the pull-down bed by attaching the
two hooks to the curved handle (Fig. 75,4).
Model I
Opening the pull-down bed:
Closing the pull-down bed:
Access ladde
r
Attaching:
