8200-M585-O1 Rev D 210 Installation & Technical 27
KEYPAD FUNCTIONS, CONT.
0 THROUGH 9, A THROUGH Z KEYS
These keys are used to enter alphanumeric data during the
setup and calibration as well as during normal operation of the
indicator.
NOTE: The 1 and 0 keys have dual functions. They are used to
enter numeric data during setup and calibration as well as
during normal operations and are also used to answer yes (1 =
YES) or no (0 = NO) to various prompts.

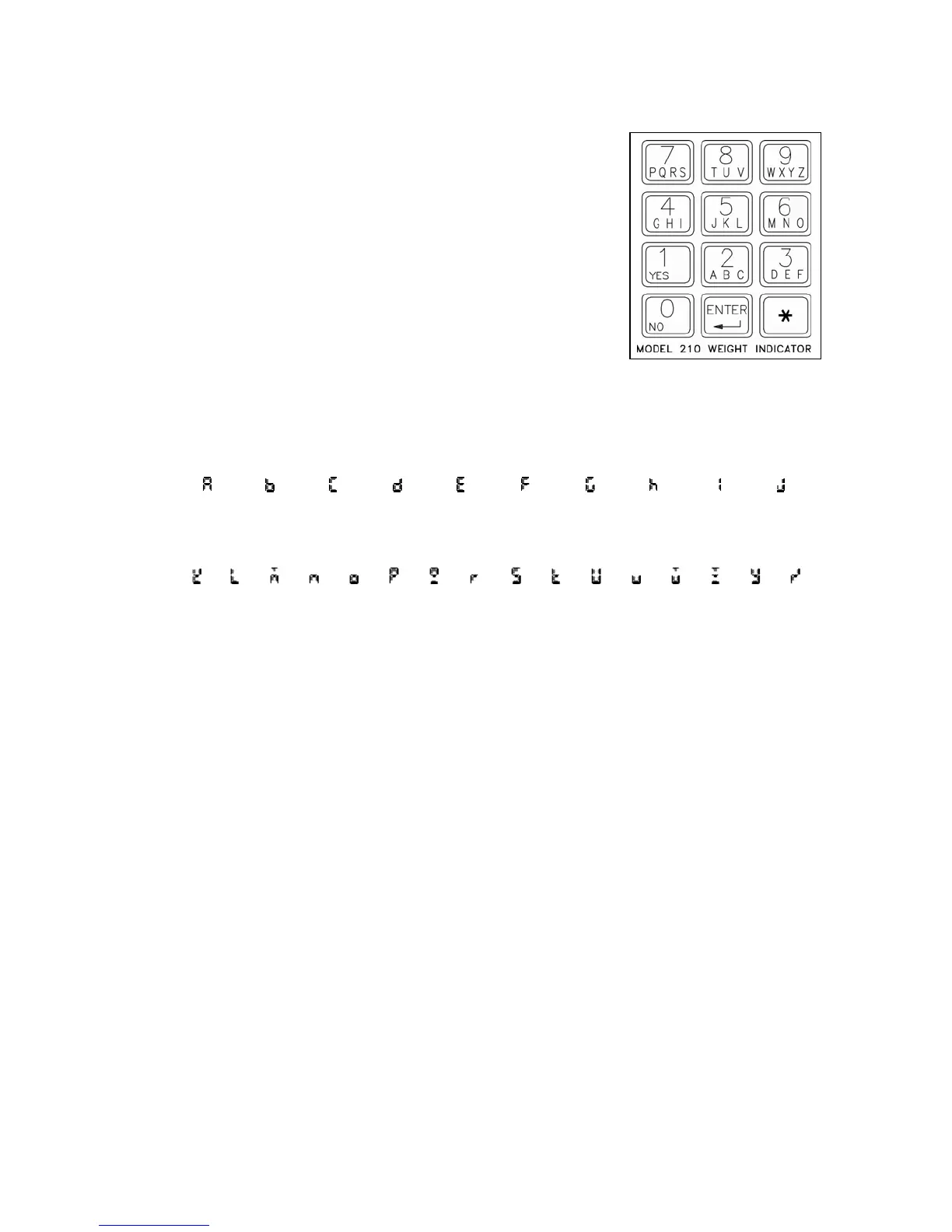

Where allowed, (ID entry), letters
are entered by pressing the
key in succession until the desired letter is displayed. This is
similar to the way a cell phone keypad operates. (Ex: If you
want to enter the letter C, you would need to press the 2 key
four times).
A special seven segment font is used for the display of the letters as follows:
A, a; B, b C, c D, d E, e F, f G, g H, h I, i J, j
K, k L, l M, m N, n O, o P, p Q, q R, r S, s, T, t U, u V, v W, w X, x Y, y Z, z
ENTER KEY
This key serves two purposes. First, when reviewing setup parameters, pressing the ENTER
key will display the current setting of the parameter. Second, the ENTER key is used to
signal completion of the entry of data and causes the indicator to process the data entered.
