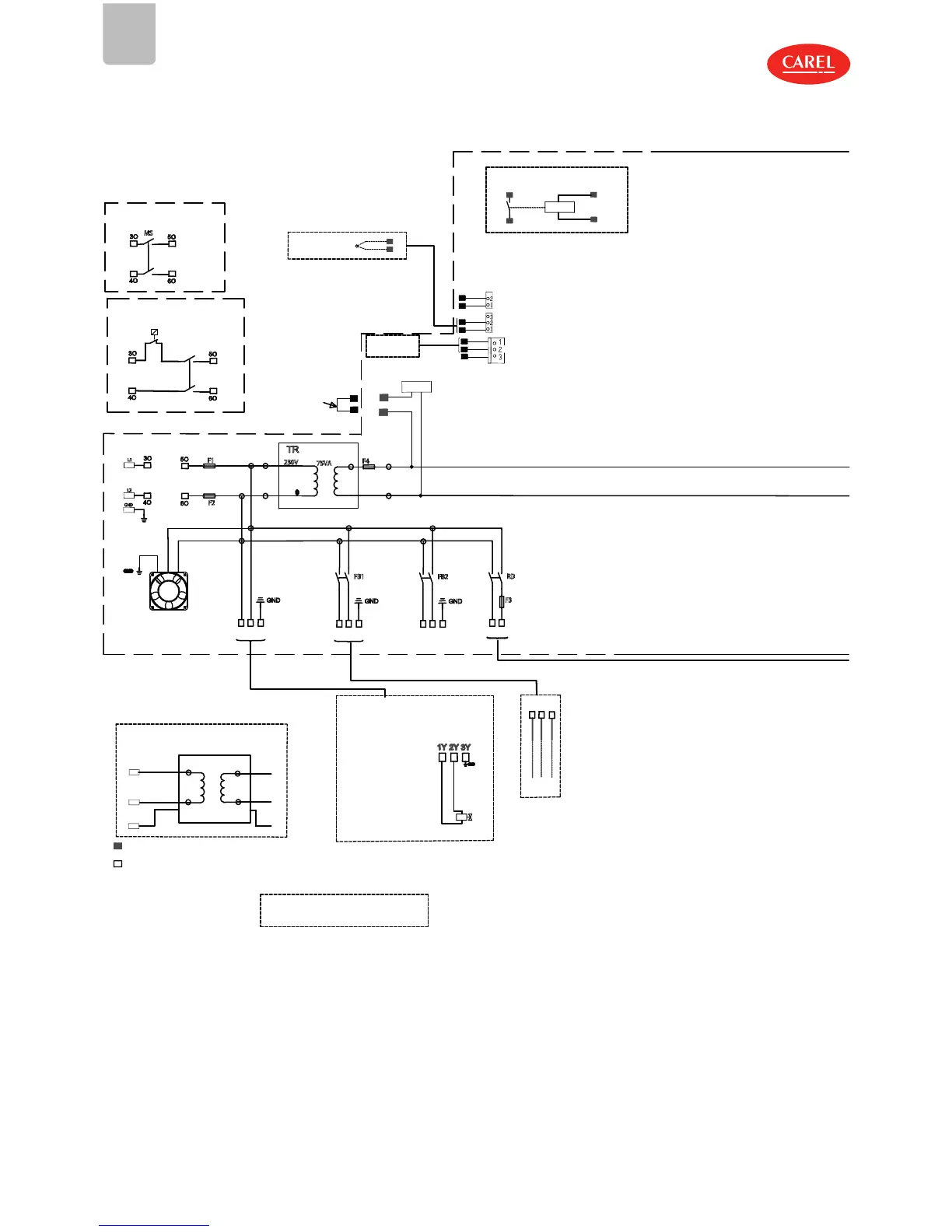

15.2 Wiring diagram for UG045 - UG090 - UG150
RELE P
4Y 5Y 6Y1Y 2Y 3Y 7Y 8Y 9Y 1O 2O
J7
J5
J22
10T
11T
10Z
11Z
1A
2A-4A
3A
13S
ELECTRICAL PANEL UG
QUADRO ELETTRICO UG
14S
COOLING FAN E.P.
VENTILATORE DI RAFFREDDAMENTO Q.E.
NTC SCARICO FUMI 1
Exhaust Fumes 1 NTC
10T
11T
0 V vent. bruc. 1 / blower 1
230 V vent. bruc. 1 / blower 1
PE vent. bruc. 1 / blower 1
4Y 5Y 6Y
UTENZE ESTERNE - EXTERNAL UTILITIES
BRIDGE ON TERM. BLOCK
PONTE SU MORSETTIERA
L1
T1
T2
L2
KLIXON MINIMA TEMP.
1
2
5
4
OUTDOOR VERSION / VERSIONE OUTDOOR
INDOOR VERSION / VERSIONE INDOOR
EV. NA Scarico totale (dove
richiesto)
NC electric valve total drain
(where request)
ON OUTDOOR VERSION ONLY
SOLO NELLA VERSIONE OUTDOOR
MSO
FLAME CONTROL RELAY 1 / RELE' CONTROLLO FIAMMA 1
J22.1
RELE RF1
RF1_A1
J22.2
RF1_A2
1A
2A
TO RELE' RF1
AL RELE' RF1
on US version only - Solo nelle versioni US
L1
L2
GND
L
L
GND
115V
230V
0 0
connected by the customers - connesso dal cliente
TRPS1
MORSETTI AUSILIARI/ AUXILIARY TERMINAL BLOCKS
MORSETTI DI POTENZA/ POWER TERMINAL BLOCKS
LEGENDA/ KEY
G = 24 Vac
G0 = 0V
300090_150-A_R01
106|15. Wiring diagrams
gaSteam - UG +0300090EN rel. 1.2– 09.10.2018
