Ref. Description
1 Disconnect switch
2 Lock
3 Fill solenoid valve
4 Fill shut-off valve
5 Conductivity meter
6 Drain column
7 Overflow/drain pipe
8 Level sensor
9 Preheating temperature sensor
10 Boiler
11 Drain pump
12 Fill pipe
13 Total boiler drain valve
14 Tank drain
15 Gas shut-off valve
Ref. Description
16 115-230 V transformer (US market)
17 Gas valve
18 Combustion air intake pipe
19 Heater (accessory)
20 Flue gas exhaustpipe
21 Safety thermostat
22 Flame control board
23 Ignition electrode
24 Detection electrode
25 User terminal
26 Fan electrical panel
27 Flue gas exhaustpipe
28 Foam sensor
29 Steam outlet
30 ON/OFF switch
Tab.1.c
1.8
Rating plate

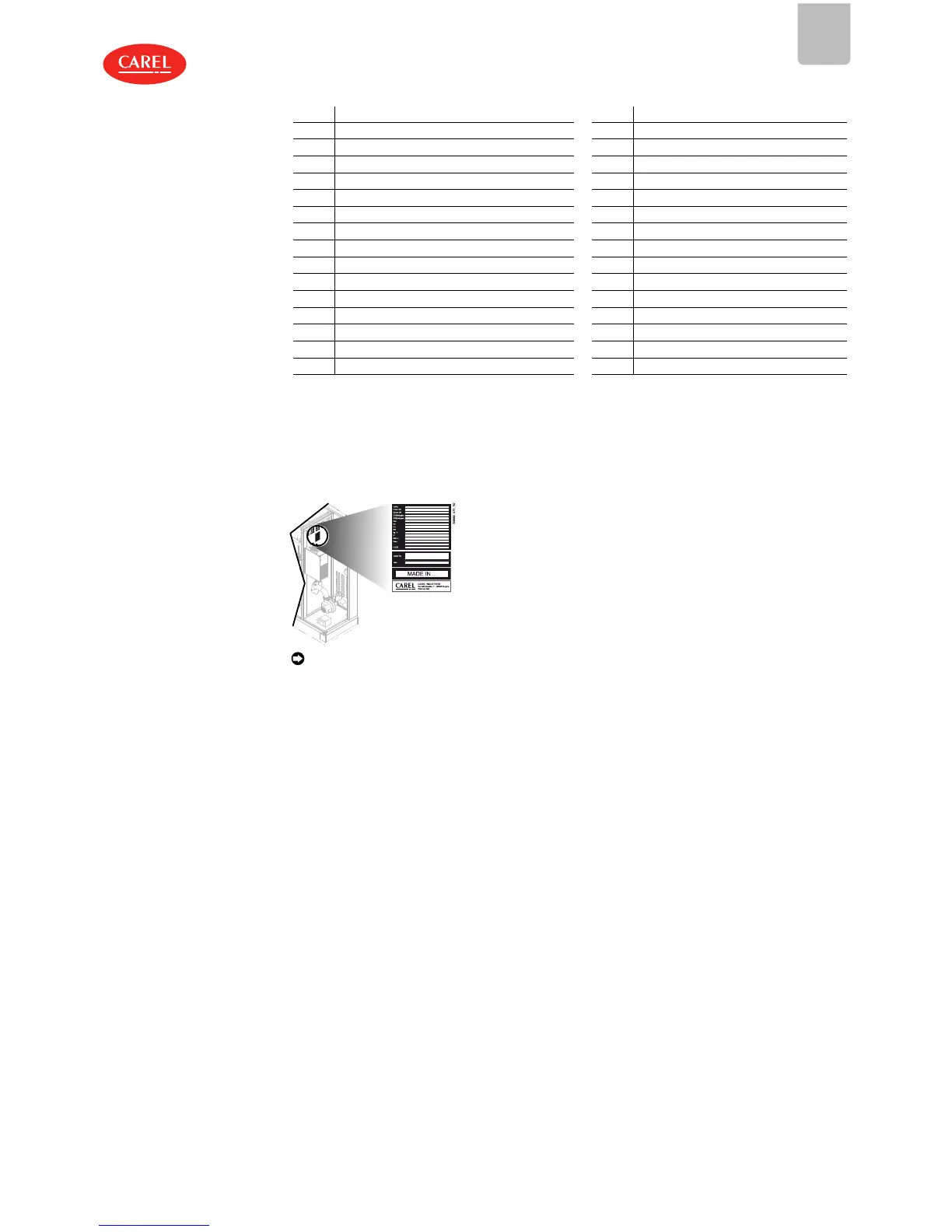

The humidifiers can be identified by the rating plate placed on the partition in the electrical cabinet.
There is also a label showing the types of gas allowed for each country and the corresponding supply
pressures (classification according to EN437).
Note: tampering, removal or absence of the rating plate or anything else that does not allow certain
identification of the product will make any installation or maintenance operations difficult.
