8 Chapter 2 CS 7200 Overview
Hygienic Sheaths
For each imaging plate size, a one-time use, disposable, hygienic sheath is used for preventing cross
contamination. The transparent side allows you to see the dot, while the opaque side protects the active side
of the inserted imaging plate from image degradation.

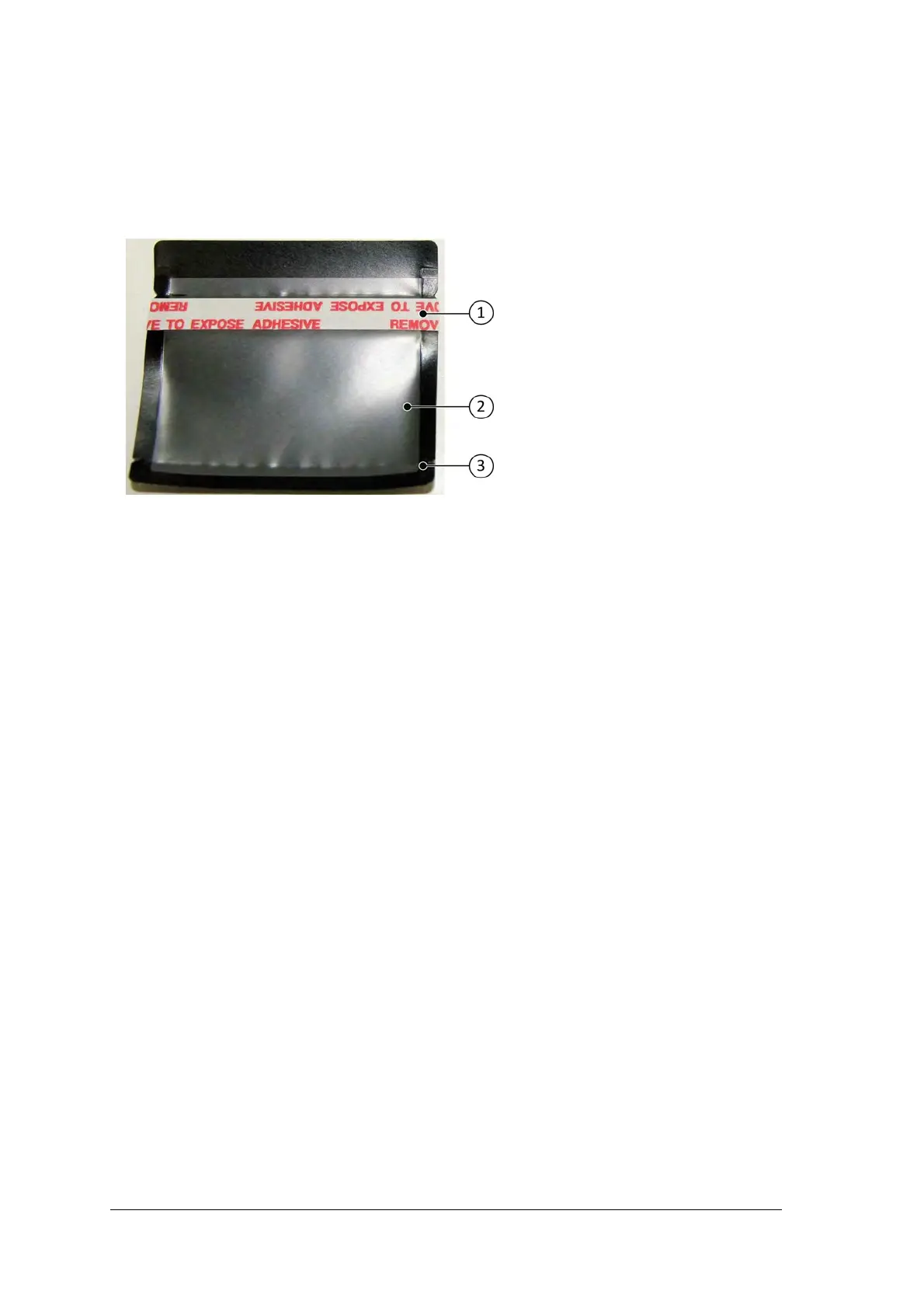

Figure 4 Hygienic Sheath (front view)
1 Adhesive strip (for sealing the hygienic sheath)
2 Sheath transparent side to see the plate refernce
3 Tear line to be opened when inserting the plate into the scanner
