28 Chapter 3 Setting Up CS 7200
CS 7200 Post Installation Test
After software and scanner installation, check that all scanner components are properly installed and the
scanned images are properly displayed in the CS Imaging Software.
1. Start the CS Imaging Software and select or create test patient. See “Starting the Imaging Software” on
page 42.
2. Expose a plate size 2 with a metal object (such as coin or key) on it.

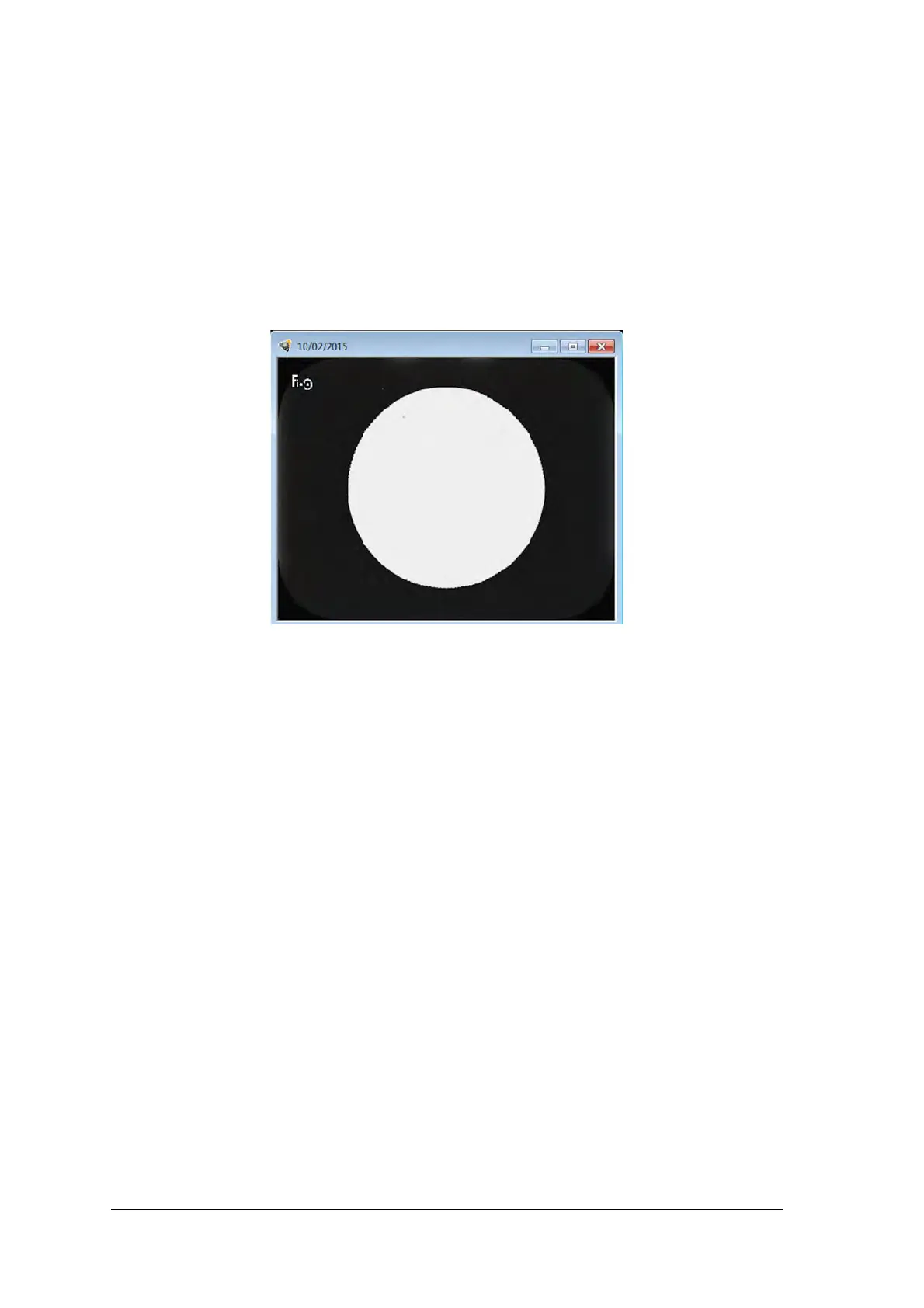

3. Load the exposed plate into the scanner and wait until the scan is complete and the image is displayed
on the CS Imaging Software main screen. .
4. Close the CS Imaging Software main screen.
