revision 0 date: 07/19 doc. AG525990
CORSA TIRANTE VERTICALE IDRAULICO / HYDRAULIC PULL ROD TRAVEL RANGE
MODELLO TRATTORE /
TRACTOR MODEL
CORSA MINIMA / MINIMUM STROKE
CORSA MASSIMA / MAXIMUM
STROKE
(mm) (in) (mm) (in)
VLB 401 15.79 474 18.66
V 461 18.15 534 21.02

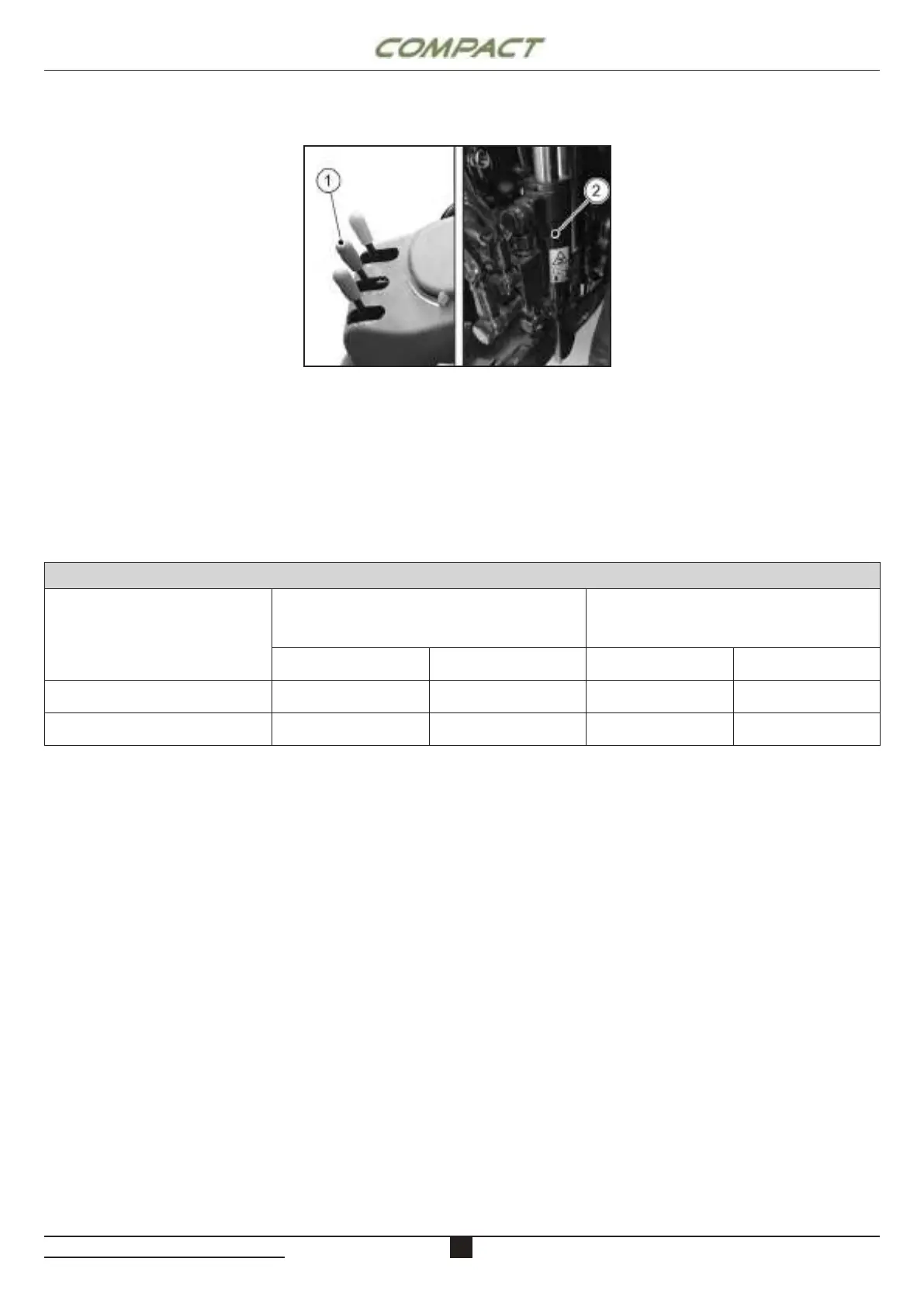

Regolazione del tirante verticale idraulico Adjusting the hydraulic vertical pull rod
The hydraulic vertical pull rod is usually connected to
hydraulic outputs of the distributor installed in position
2.
1) control lever
2) hydraulic vertical pull rod
Hydraulic pull rod travel ranges, relative the model
indicated, is shown in the table below:
