6.6.6 - Clutch & PTO Clutch - Check free play6.6.6 - Frizione PTO - Vericare gioco libero

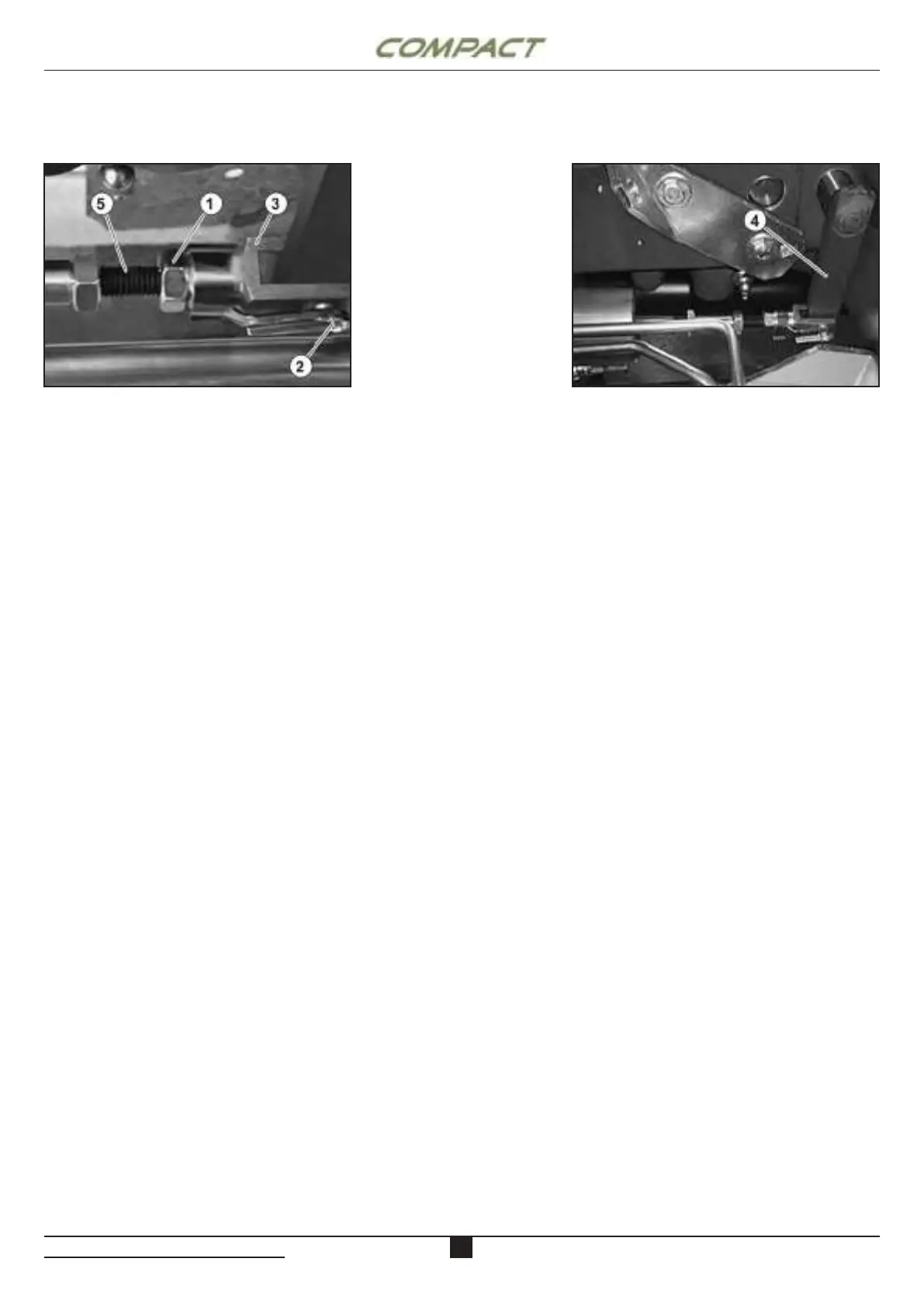

1. Loosen the nut (1).
2. Remove the pin (2) from the yoke (3).
3. Move the PTO lever (4) to the left until it meets
the stroke end position (PTO bearing is in contact
with the PTO clutch ngers).
4. Keeping the PTO lever (4) in position, turn the
yoke (3) so that the hole of the fork (3) is aligned
with the one of the PTO lever (4).
Starting from this point, turn the fork (3) by 1.5
rotations to extend the rod (5).
5. Fit the pin (2) to connect the rod (5) to the lever
(4).
1.
2.
3. t
)
4.
5.
