Carrier TRANSICOLD Vector 8700 - Radiator Replacement

8–15 62-12259
8.5.11.2 Radiator Replacement
1. Ensure the unit will not start automatically by placing the START/RUN-OFF switch in the OFF position and
removing the negative battery cable. Disconnect the high voltage source and lockout/tagout the receptacle.
2. Drain coolant into a suitable container by removing coolant bottle cap and the engine drain plug.
3. Remove condenser fans, refer to Section 8.9.10. When removing the road side fan assembly, remove the
condenser to subcooler line support bracket completely, to allow clearance for coil removal.
4. Remove the radiator frame assembly mounting bolts (see Figure 8) and remove the radiator frame
assembly.
5. Remove top radiator mounting brackets and remove the radiator through the top of the unit.
6. Re-assemble in reverse order of removal.
7. Flush and fill radiator with coolant. (Refer to Section 8.5.12.). Add phosphate additive (46-00074-00) to
coolant when installing new radiator.
8. Reinstall the negative battery cable, start unit and check for leaks.

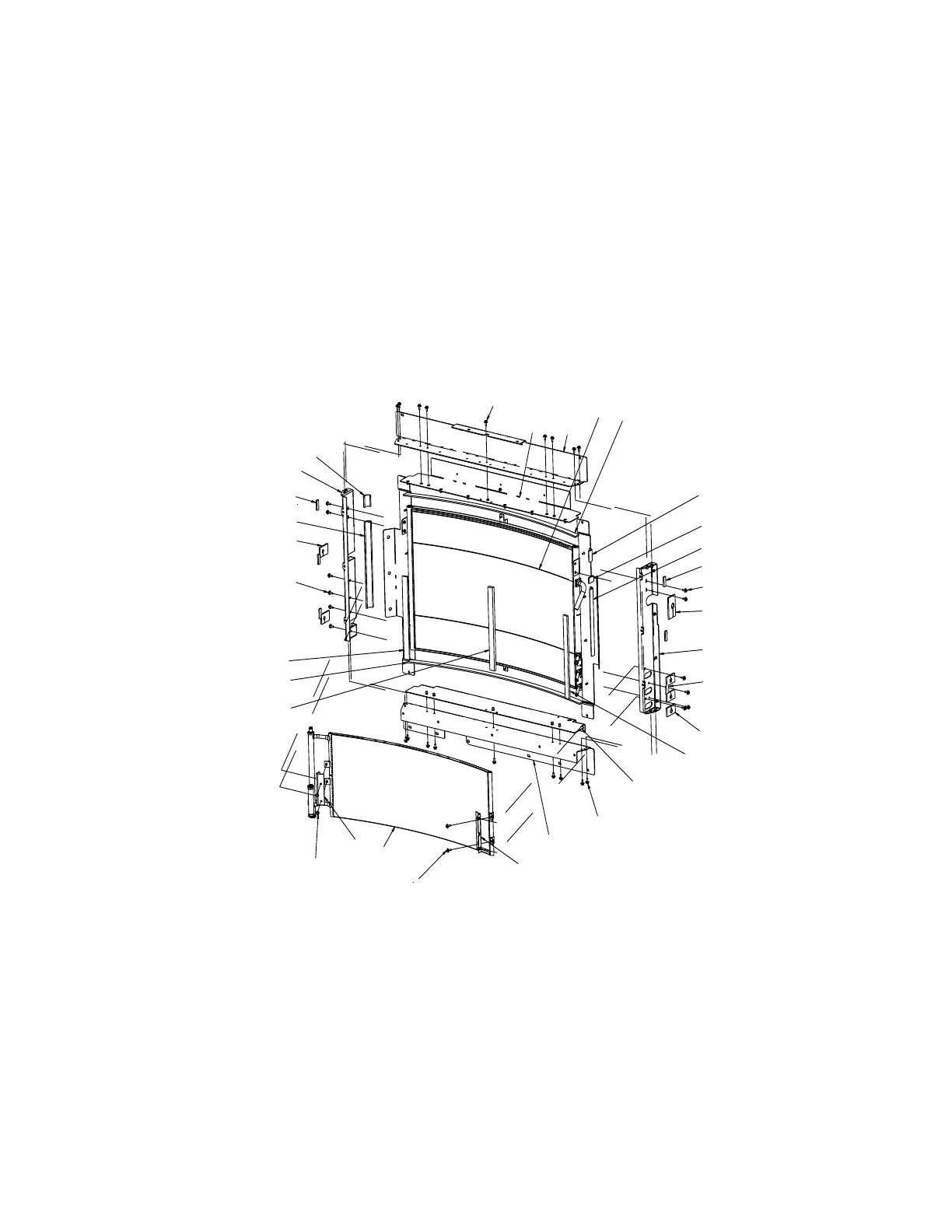

Figure 8.12 Condenser and Radiator Assemblies
13. Gasket (Subcooler)
14. Bracket
15. Bracket
16. Bracket
17. Bracket
18. Radiator Coil
19. Bracket
20. Bracket
21. Gasket
22. Gasket
23. Gasket
24. Bracket
1. Bracket
2. Bracket
3. Condenser Coil
4. Gasket
5. Gasket
6. Gasket
7. Gasket
8. Gasket
9. Screw, Captive Washer
10. Gasket
11. Bracket
12. Gasket
1
2
3
4
5
7
6
8
9
10
11
12
9
13
14
15
11
16
17
18
19
9
9
20
4
21
9
22
23
8
24
5
