Operatingcontrols

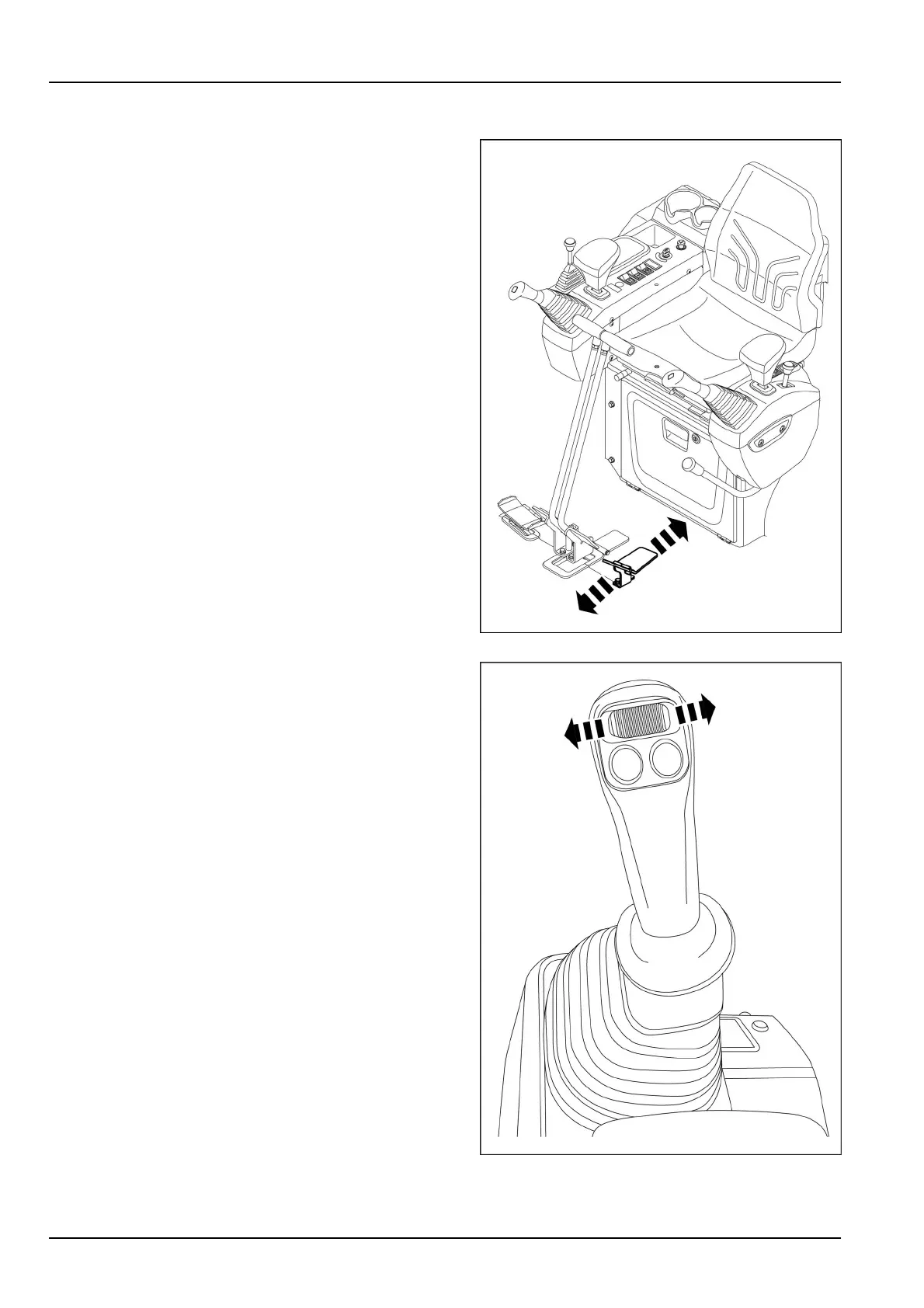

Iftheauxiliarypedalisequippedproceedasfollow:
•
1-way:pressthefrontsideofpedaltofullstroketo
operateasingle-actinghydraulicattachment
•
2-way:pressthefrontsideandrearsideofpedaltofull
stroketooperateadouble-actinghydraulicattachment.
SMIL17MEX2777BA4
Iftheproportionalswitchontheright-handcontrollever
isequippedproceedasfollow:
•
1-way:slidetotheleft-handsidetheswitchtooperate
thesingle-actinghydraulicattachment.
•
2-way:slidetheswitchfromtheleft-handtothe
right-handtooperatethedouble-actinghydraulicat-
tachment.
SMIL16MEX1265BA5
