9-ACCESSORIES

7.Extendthearmandpositionthebucketontheground.

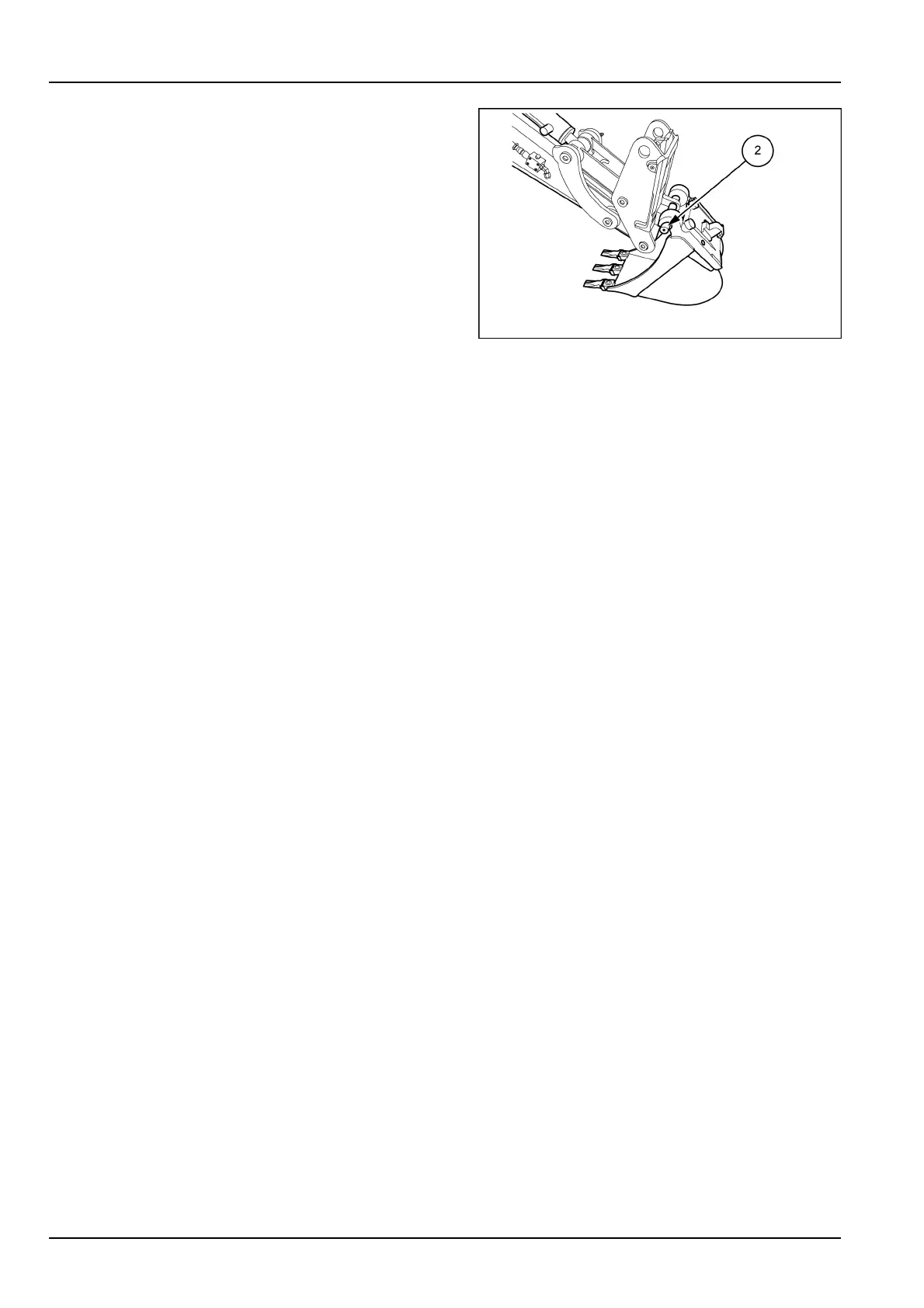

8.Disengagethepins(2)ofthequickcouplerfromthe

buckethooks.

NOTICE:paycloseattentionwhiledisengagingthe

bucket.Afallingbucketmaycausedamagetoobjectsor

seriouslyinjurepeople.

SMIL16MEX3216AB13

9-30
