CHAPTER 5 - LUBRICATION, FILTERS, AND FLUIDS
5-31
6-34551NA Issued 8-04 Bur
CX75SR, CX80

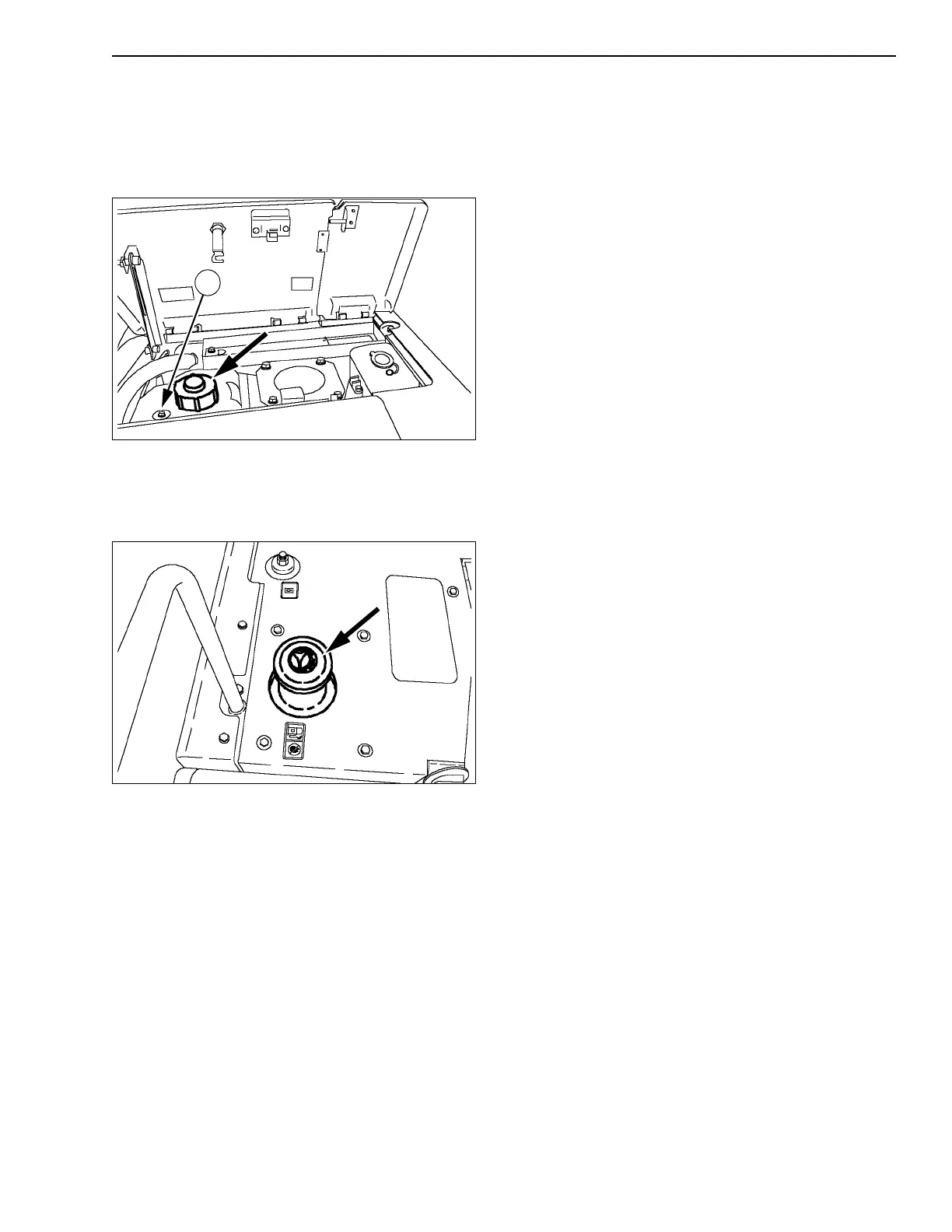

To access the tank cap, open the upper hood on the
front right-hand side of the machine.
NOTE: The gauge (1) located beside the plug shows
the fuel level in the tank.
CT02D046
Figure 76
CX135SR
The tank cap is located on the right-hand underside
of the machine.
CT02D045
Figure 77
1
