Case CX75SR - WORKING RANGE - CX75 SR

CHAPTER 8 - SPECIFICATIONS
8-12
Issued 8-04 Bur 6-34551NA
WORKING RANGE - CX75SR
1.71 M (5 FT. 7 IN) ARM
CT02D273

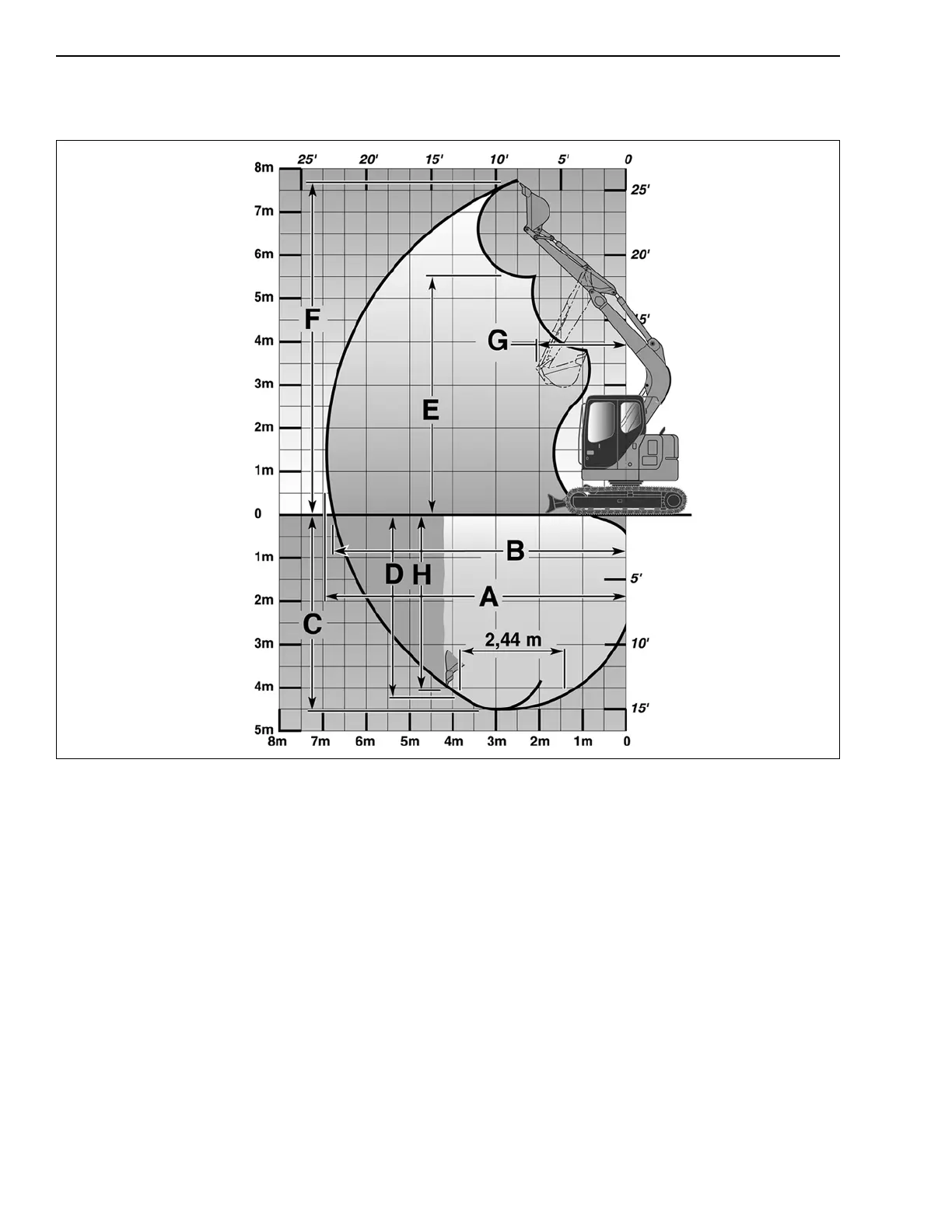

Figure 4
WORKING RANGE FOR 1.71 M (5 FT. 7 IN) ARM
A. Maximum reach ...................................................................................................................... 6.50 m (21 ft. 5 in)
B. Maximum reach at ground level ............................................................................................. 6.40 m (21 ft. 0 in)
C. Maximum digging depth ......................................................................................................... 4.15 m (13 ft. 9 in)
D. Maximum digging depth over a length of 2.44 m (8 ft.)........................................................... 3.80 m (12 ft. 6 in)
E. Maximum dump height ........................................................................................................... 5.25 m (17 ft. 3 in)
F. Maximum working height ....................................................................................................... 7.35 m (24 ft. 1 in)
G. Minimum attachment swing radius ......................................................................................... 1.80 m (5 ft. 10 in)
H. Maximum digging depth - vertical wall ................................................................................. 3.65 m (11 ft. 11 in)
