CHAPTER 3 - INSTRUMENTS AND CONTROLS
3-30
Issued 8-04 Bur 6-34551NA
CT02C183

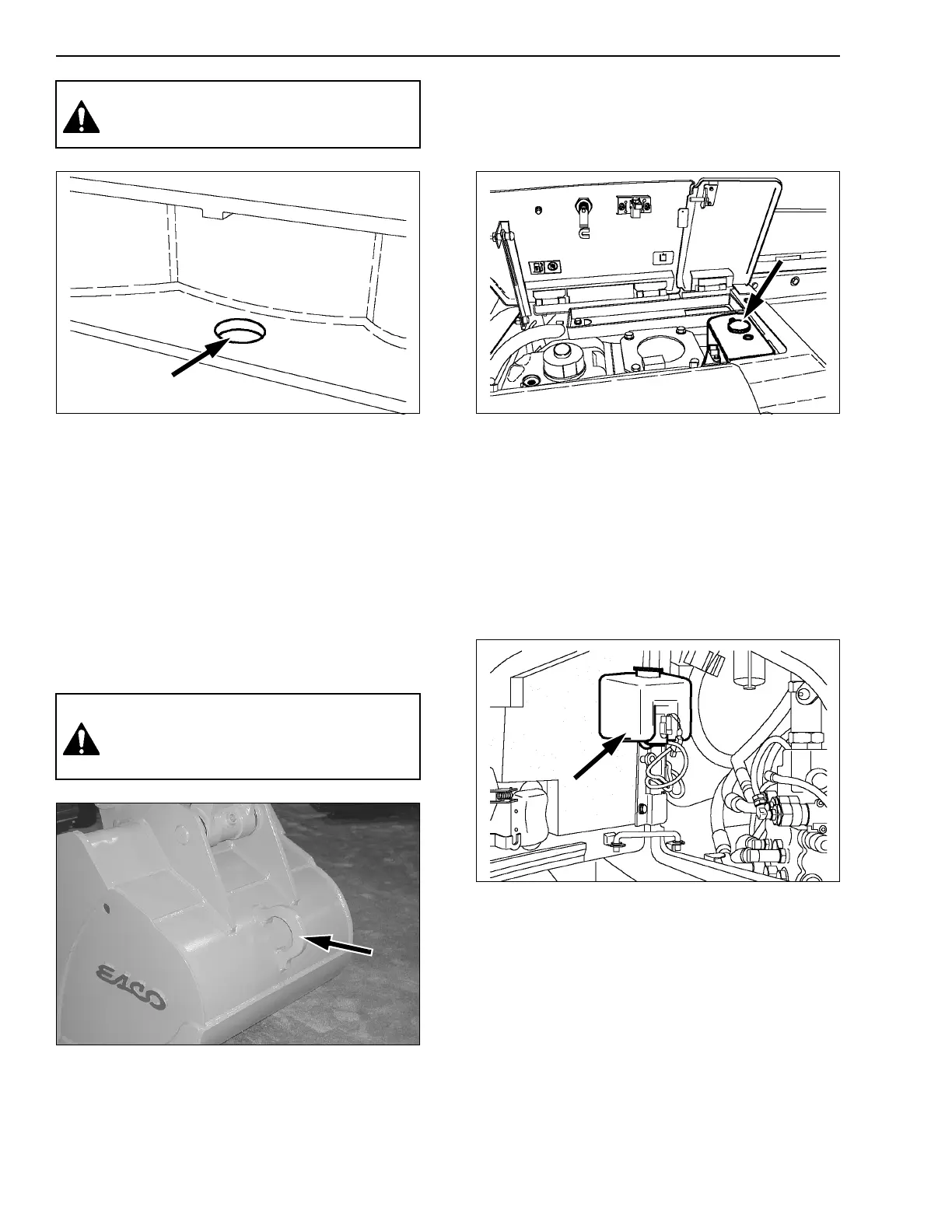

Figure 94
LOAD HANDLING EYES
When lifting loads, the slings and chains must be
attached to the load handling eye on the bucket.
(Figure 95)
See Load handling in the Operating Instructions
section.
IMPORTANT: This attachment point will only carry
the load indicated in the maximum lift capacities
table. See Maximum lift capacities tables in the
Operating Instructions section.
CT02C184
Figure 95
WINDSHIELD WASHER RESERVOIR
Located under the upper hood, this reservoir is
equipped with an electric pump controlled by the
windshield wiper, windshield washer control.
CT02C126
Figure 96
CX75SR, CX80
Located inside the front right-hand side door, this
reservoir is equipped with an electric pump controlled
by the windshield wiper, windshield washer control.
In cold weather, add anti-freeze to the windshield
washer water.
Never operate the windshield washer control when
the reservoir is empty. This could cause damage to
the electric pump.
CT02C120
Figure 97
CX135SR
TOOL SUPPLY VALVES (OPTIONAL)
Located at the end on both sides of the dipper, these
valves feed optional tools such as the hydraulic
breaker, etc. These valves have two positions:
open/closed. See Auxiliary hydraulic systems in the
Operating Instructions section.
WARNING: The machine must be towed
very slowly, over a short distance and only if
it is really unavoidable.
WARNING: Never weld hooks or lugs on the
bottom plate of the bucket for handling
operations. The only attachment point which
may be used is the bucket eye.
