Case CX75SR - Position of the Operators Compartment Controls and Accessories

CHAPTER 3 - INSTRUMENTS AND CONTROLS
3-5
6-34551NA Issued 8-04 Bur

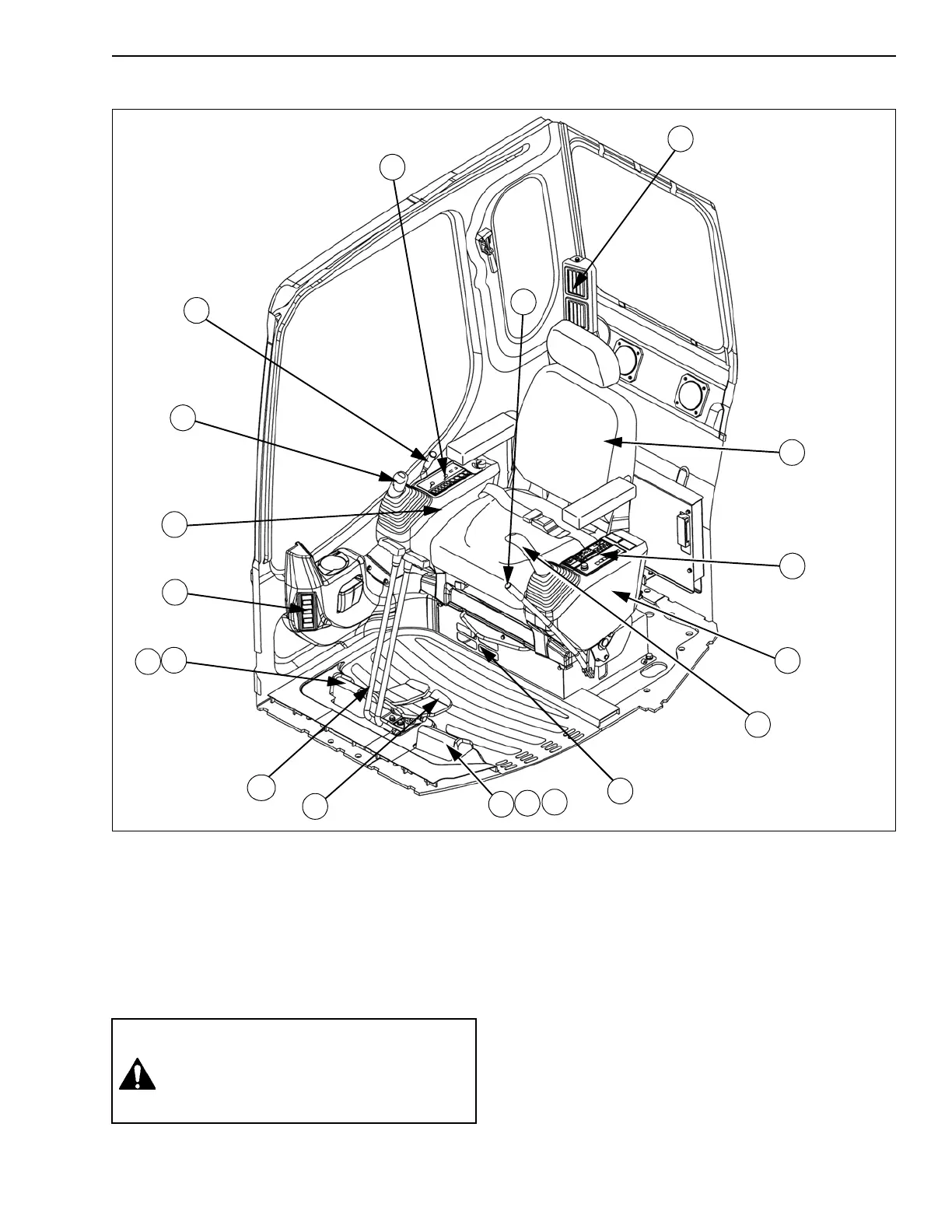

POSITION OF THE OPERATOR’S COMPARTMENT CONTROLS AND ACCESSORIES
CT02C282
Figure 7
1. OPERATOR'S SEAT 9. INSTRUMENT PANEL
2. FUNCTION CANCELLATION LEVER 10. HEATING, AIR-CONDITIONING, AND OPTIONAL CONTROL
3. LEFT-HAND CONTROL LEVER 11. RIGHT-HAND CONTROL LEVER
4. FOOT REST (PEDAL LOCKED) 12. AIR VENTS
5. LEFT-HAND TRAVEL CONTROL PEDAL AND LEVER 13. RIGHT-HAND CONTROL ARM
6. RIGHT-HAND TRAVEL CONTROL PEDAL AND LEVER 14. LEFT-HAND CONTROL ARM
7. DOZER BLADE LEVER (IF EQUIPPED) 15. OFFSET PIVOT CONTROL PEDAL (CX80)
8. OPTION PEDALS
1
8
8
2
3
4
4
5
6
9
11
12
12
14
13
12
10
7
15
WARNING: Before starting the engine,
make sure that you are fully aware of the
location of and the function of each control.
Incorrect operation of the controls can cause
serious injuries.
