Case CX75SR - Greasing the Swing Reduction Gear CX135 SR Only

CHAPTER 5 - LUBRICATION, FILTERS, AND FLUIDS
5-17
6-34551NA Issued 8-04 Bur
CX135SR
CT02D005
Figure 24
CT02C251
Figure 25

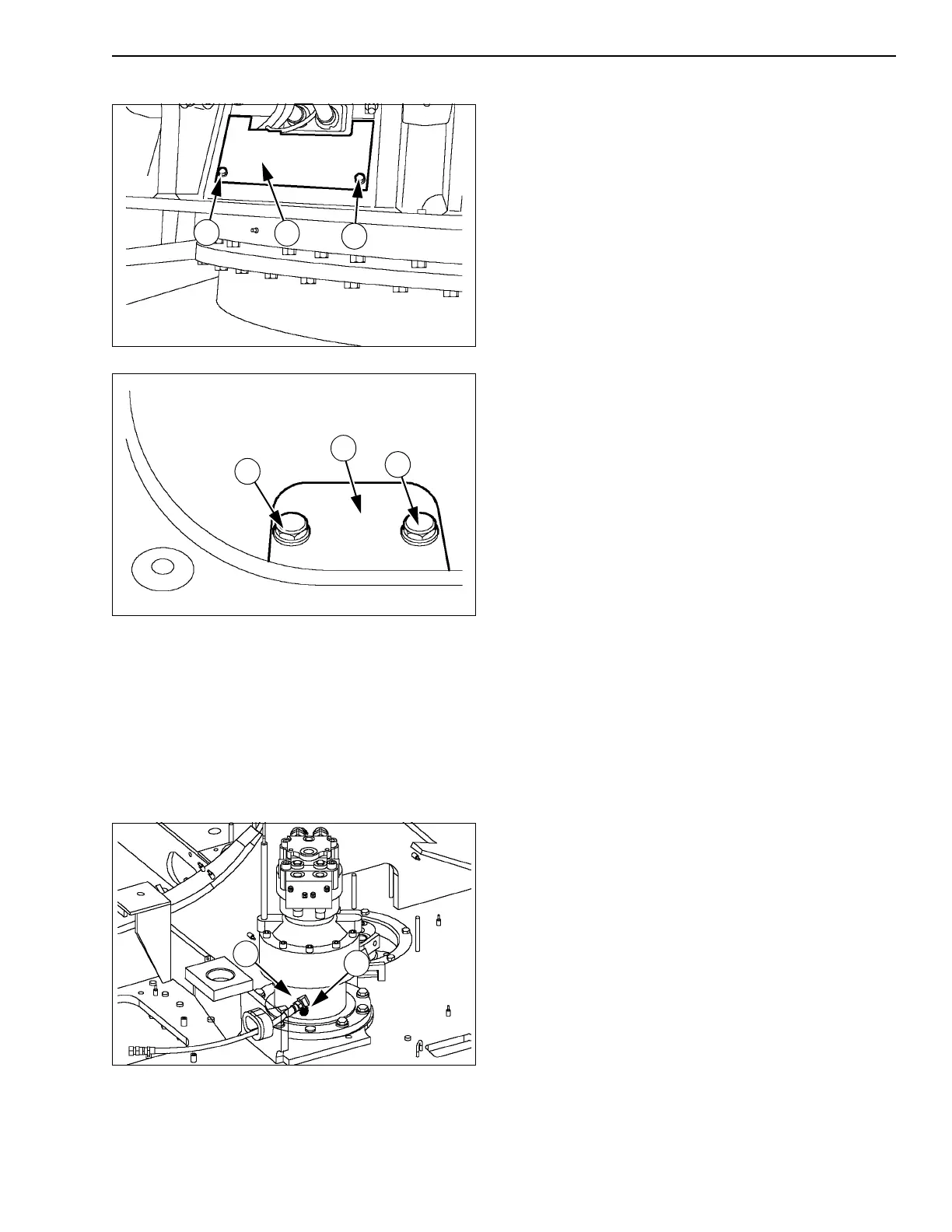

GREASING THE SWING REDUCTION GEAR
CX135SR ONLY
Every 5000 hours, remove the lower panel, remove
the air bleed plug (1) and refill with grease through
the grease point (2). A certain amount of grease
should run out from the air bleed plug (1).
IMPORTANT: When greasing, if the air bleed plug (1)
is not removed, the inner seal will be damaged.
CT02C285
Figure 26
EP NLGI grade 0 (for cold climates) -40°C to +20°C
