CHAPTER 3 - INSTRUMENTS AND CONTROLS
3-6
Issued 8-04 Bur 6-34551NA

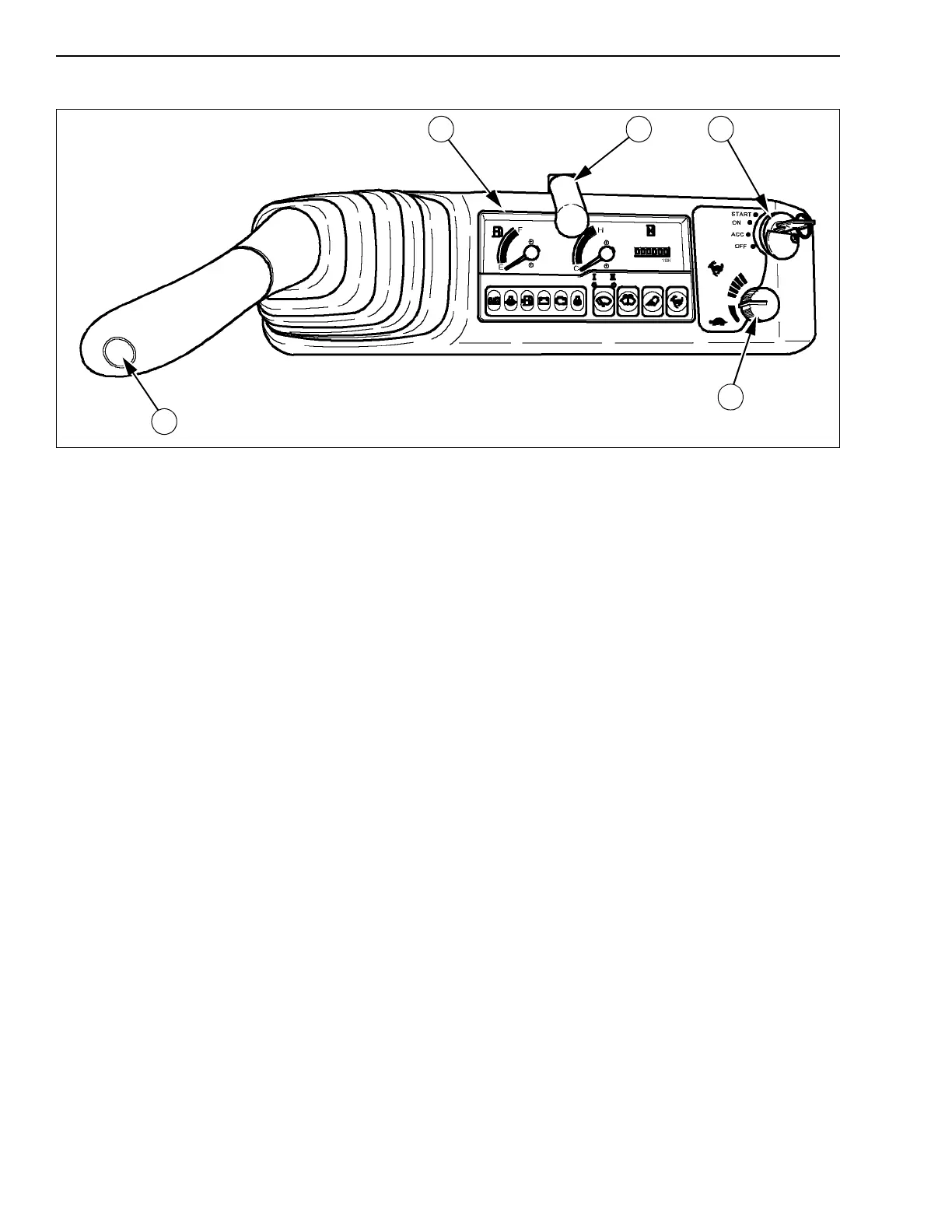

RIGHT-HAND CONTROL ARM
CT02C046
Figure 8
1. INSTRUMENT PANEL
For more details, see Instrument panel.
2. STARTER SWITCH
(CX136SR)
This switch has four positions, ON (contact),
START (engine ignition), OFF (engine
shut-down) and ACC (accessory current supply).
See Starting the engine in the Operating
Instructions section.
This key is also used to lock the cab door, the
engine hood, the side doors, and the fuel tank
cap.
(CX75SR, CX80)
This switch has five positions, “ON” (contact),
“START” (engine ignition), “OFF” (engine
shut-down), “ACC” (accessory current supply),
and “HEAT” (preheating). See Starting the
engine in the Operating Instructions section.
This key is also used to lock the cab door, the
engine hood, the side doors, and the fuel tank
cap.
3. ENGINE THROTTLE BUTTON
This button enables the increase or reduction in
the engine speed. For LOW IDLE position, turn
the button to the left. For MAXIMUM SPEED,
turn the button to the right.
If there is no change in engine speed, press and
release the engine automatic idle speed selector
(See item 4).
4. ENGINE IDLE SPEED SELECTOR
This control enables automatic engine idle
without operating the throttle button. For engine
automatic idle, press and release the control and
the engine will be in LOW IDLE position. Press
once again on the control then release it, the
engine returns to its initial speed.
5. DOZER BLADE CONTROL LEVER (If equipped)
This lever enables the operation of the dozer
blade, see Dozer blade control lever.
2
4
3
1 5
