CHAPTER 3 - INSTRUMENTS AND CONTROLS
3-31
6-34551NA Issued 8-04 Bur
CT02C122
Figure 98
CT02C123
Figure 99

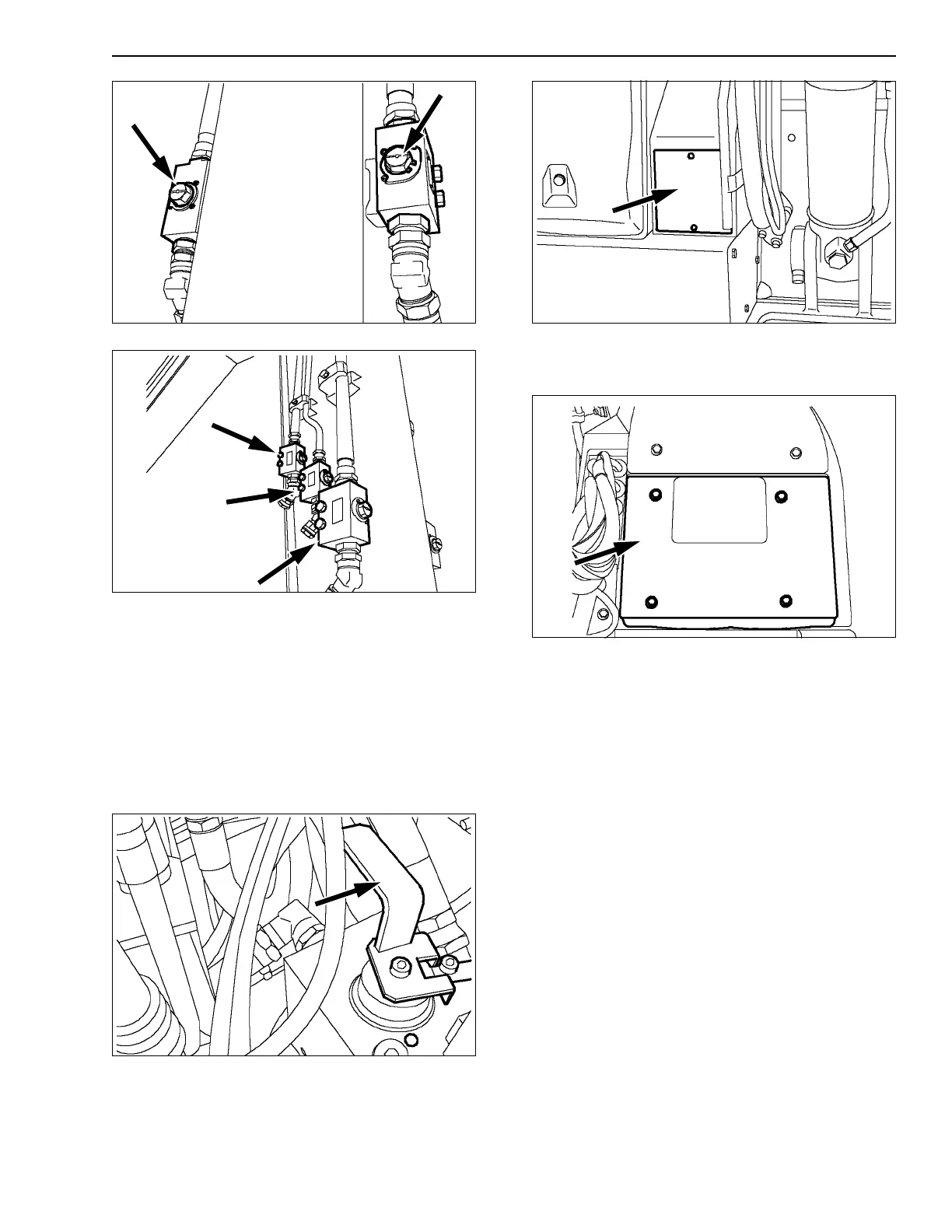

TOOL FLOW SELECTOR VALVE
(OPTIONAL)
This valve is used to select the type of flow to be
used depending on the tool installed on the machine.
See Auxiliary hydraulic systems in the Operating
Instructions section.
IMPORTANT: Consult your Dealer before mounting
optional tools.
CT02C186
Figure 100
To access the valve, remove the front plate.
CT02C185
Figure 101
CX75SR, CX80
To access the valve, remove the upper plate.
CT02C217
Figure 102
CX135SR
