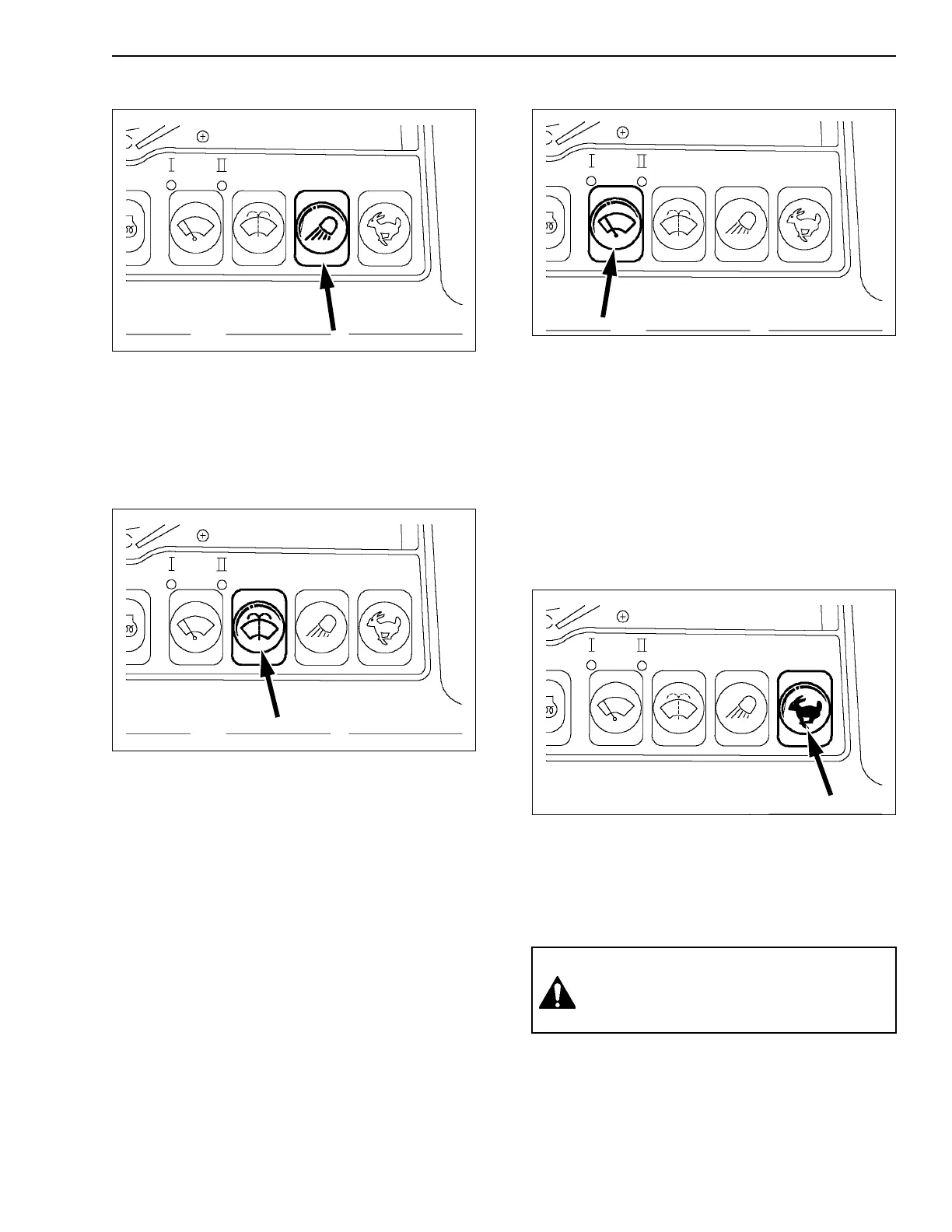

WORKING LIGHT SWITCH
CT02C053
Figure 19
This switch switches the working lights on or off.
Press the button, the instrument panel as well as the
working lights comes on. Press the button again to
switch them off.
WINDSHIELD WASHER SWITCH
CT02C054
Figure 20
Press and hold the switch for the windshield washer
and the windshield wiper to function, release the
switch to stop this operation.
Never operate the windshield washer when the
reservoir is empty, as this may damage the electric
pump.
WINDSHIELD WIPER SWITCH
CT02C055
Figure 21
This switch has three positions: Shut down,
Intermittent and Continuous. Press the switch for
intermittent operation of the windshield wiper, the
lamp (I) comes on. Press the switch again to obtain
continuous operation of the windshield wiper, the
lamp (II) comes on. Press the switch once more for
the function to cease.
Do not operate the windshield wiper if the windshield
is dry, as this may damage the windshield wiper.
HIGH SPEED TRAVEL SWITCH
CT02C056
Figure 22
When the switch is pressed, the travel speed goes
from low to high. A red indicator lamps up when the
travel is in high speed mode.
When the engine is started, low speed is
automatically selected.
Low speed: Suited for travel on a slope or on difficult
terrain.
High speed: Suited for travel on level ground.
As soon as the travel load becomes too great, the
machine automatically returns to low speed.
WARNING: If the travel speed is changed
during travel, the machine may veer off
course. Shut down the machine before
changing speeds.
