Case CX75SR - Engine - CX135 SR; Service Specifications; Level; Draining, Replacing the Oil Filter, and Filling

CHAPTER 5 - LUBRICATION, FILTERS, AND FLUIDS
5-22
Issued 8-04 Bur 6-34551NA
ENGINE - CX135SR
SERVICE SPECIFICATIONS
Engine oil level check ..................................................................................................... Every 10 hours or every day
Oil change .........................................................................................................................................Every 500 hours
Oil filter replacement..........................................................................................................................Every 500 hours
Oil type ......................................................................................................................................................Case No. 1
Oil capacity..........................................................................................................................................15 liters (4 gal)
LEVEL
1. Park the machine on flat, horizontal ground. Shut
down the engine and remove the starter switch
key.
2. When the engine has been stopped for fifteen
minutes, remove the dipstick (1), wipe it with a
clean cloth and replace it in the guide tube as far
as it will go. Then take it out again.

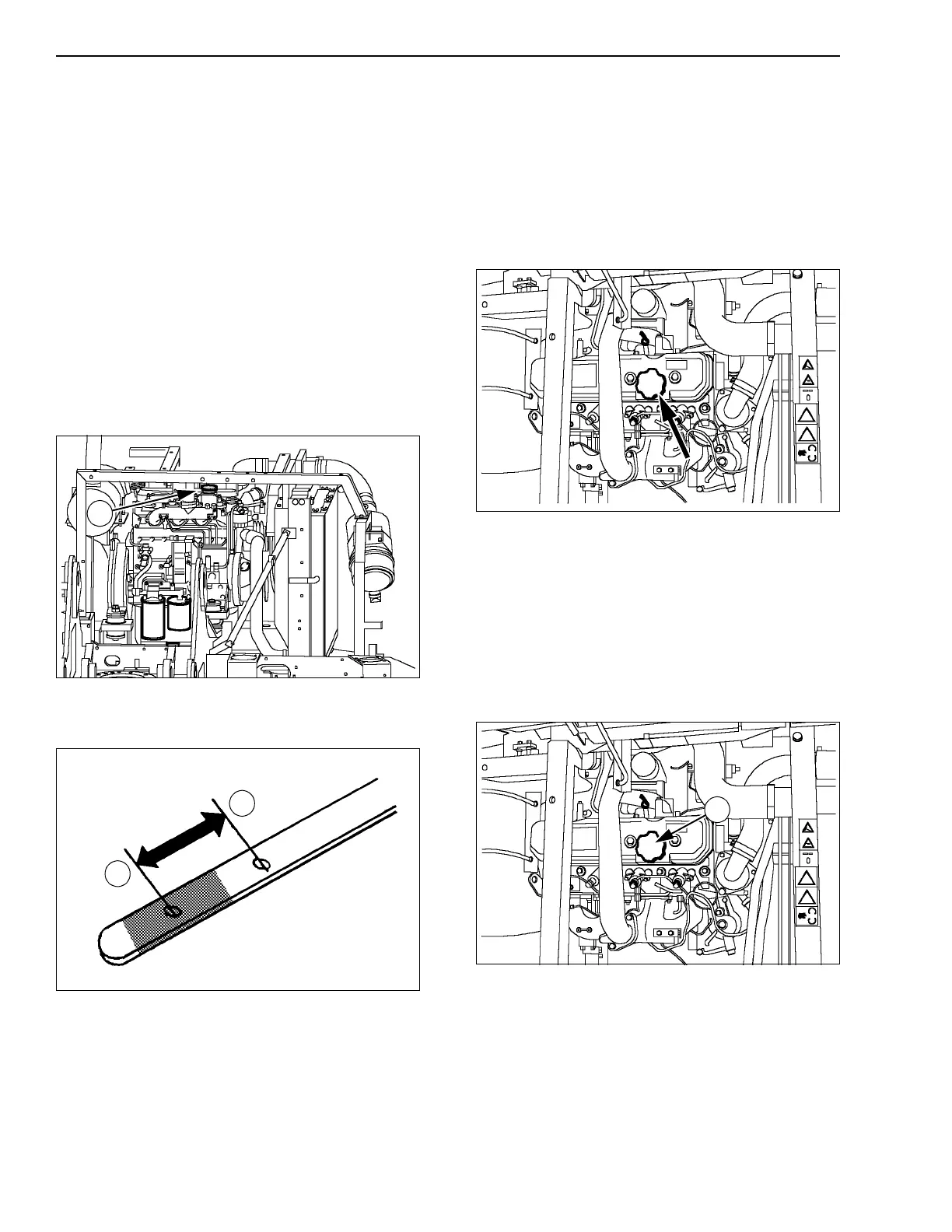

CD02D017
Figure 45
3. If the level is situated between the marks (A) and
(B) on the dipstick, the level is correct.
CS98M579
Figure 46
4. If the oil level is at mark (A) (min.) or below,
remove the filling plug and add oil up to mark (B)
(max) of the dipstick then install the plug.
NOTE: The level should not be higher than the
mark (B) (maximum on the dipstick ).
CT02D019
Figure 47
DRAINING, REPLACING THE OIL FILTER, AND
FILLING
NOTE: Change the oil while the engine is still warm.
The oil will flow more easily.
1. Park the machine on flat, horizontal ground. Shut
down the engine and remove the starter switch
key.
2. Remove the oil filler cap (1).
CT02D019
Figure 48
3. Place a receptacle of a suitable capacity under
the engine sump drain plug, remove the plug and
allow the oil to flow out.
4. Put a new seal on the drain plug and install the
plug.
1
A
B
1
