WORKING RANGE - CX135SR
2.39 M (7 FT. 10 IN) ARM
CT02D276
Figure 7

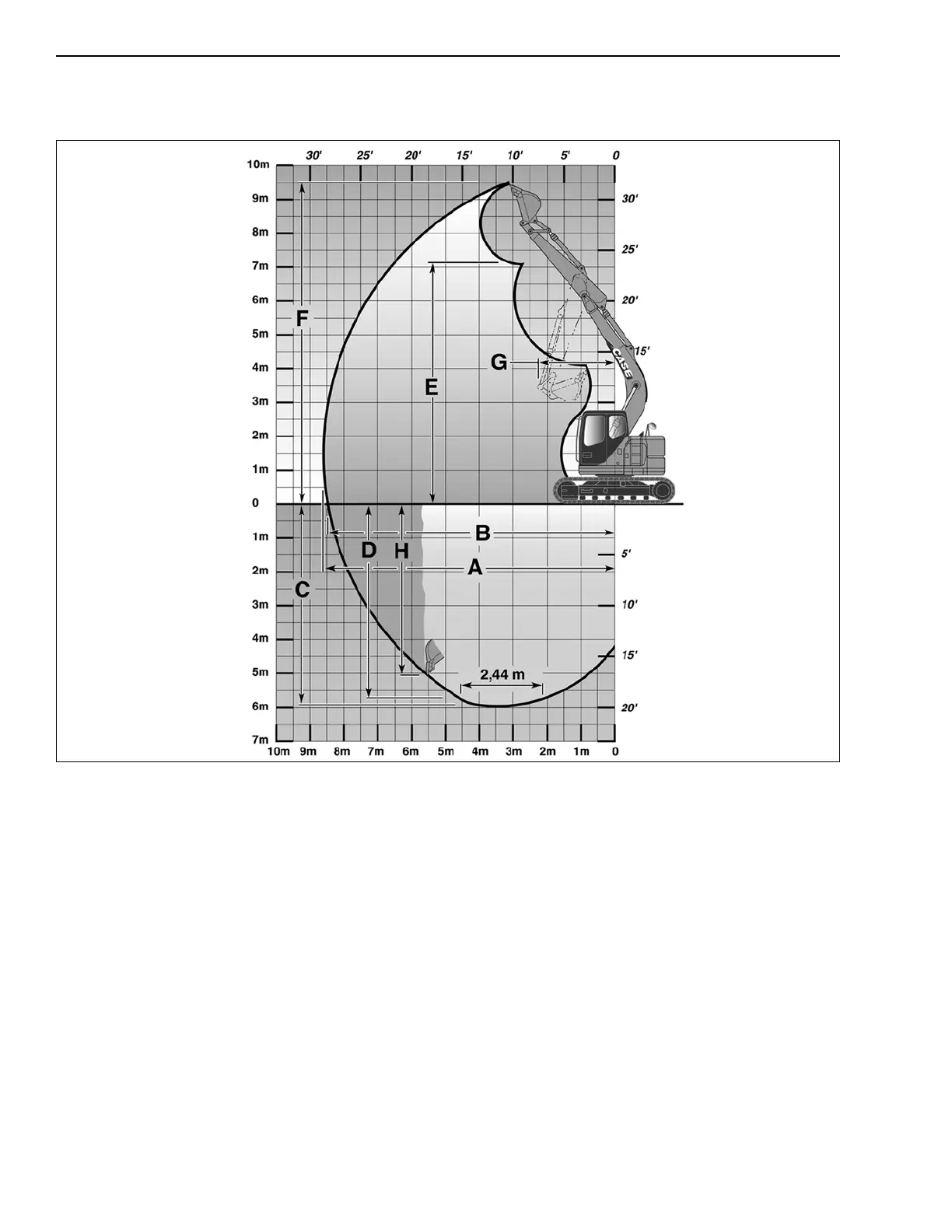

WORKING RANGE FOR 2.39 M (7FT 10 IN) ARM
A. (Maximum reach) ..................................................................................................................8.20 m (26 ft. 11 in)
B. (Maximum reach at ground level) ............................................................................................8.05 m (26 ft. 6 in)
C. (Maximum digging depth).......................................................................................................5.45 m (17 ft. 11 in)
D. (Maximum digging depth over a length of 2.44 m) (8 ft.) .........................................................5.25 m (17 ft. 3 in)
E. (Maximum dump height) .........................................................................................................6.90 m (22 ft. 8 in)
F. (Maximum working height) ......................................................................................................9.30 m (30 ft. 6 in)
G. (Minimum swing radius) ............................................................................................................2.26 m (7 ft. 5 in)
H. (Maximum digging depth - vertical wall) ................................................................................4.85 m (15 ft. 11 in)
