Case CX75SR - Working Range - CX80

CHAPTER 8 - SPECIFICATIONS
8-15
6-34551NA Issued 8-04 Bur

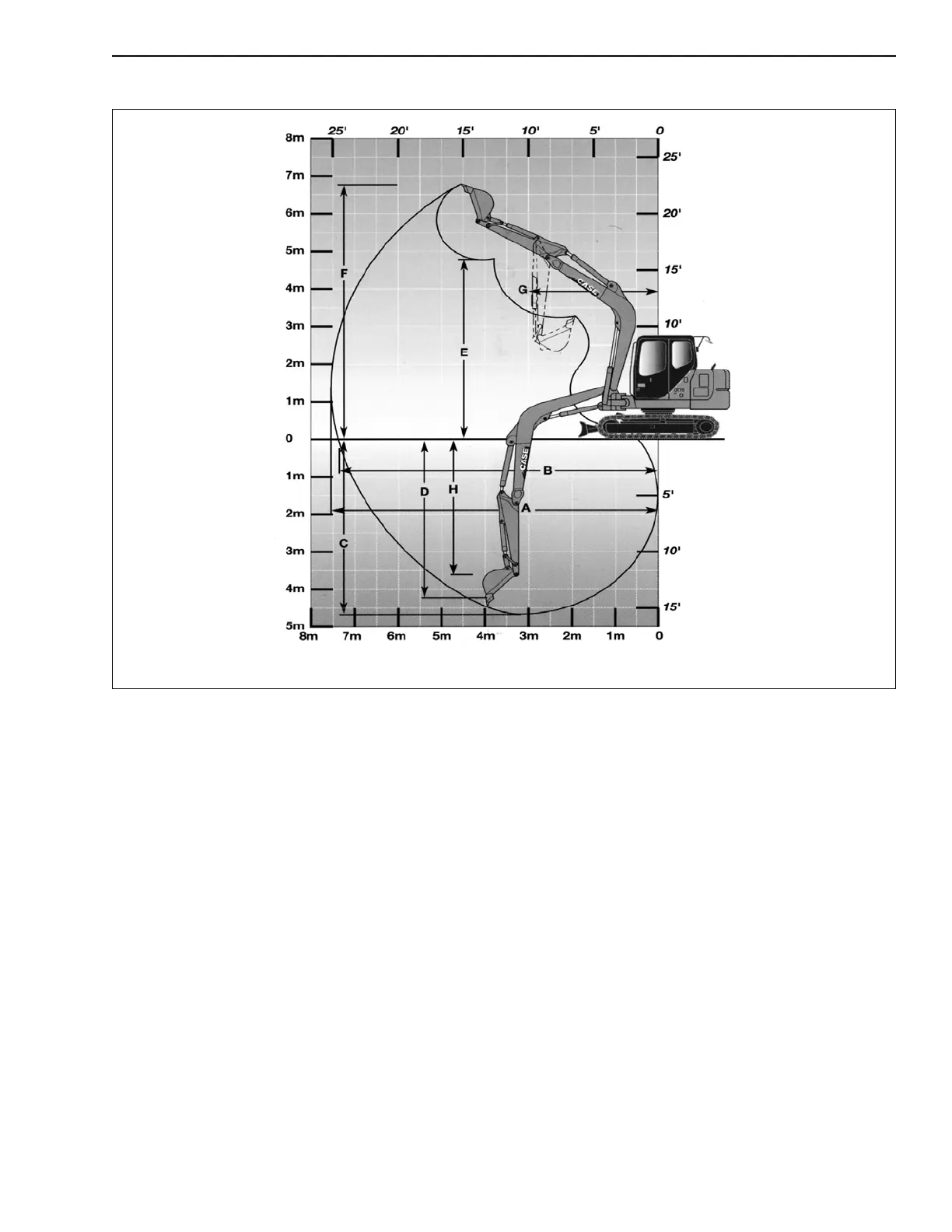

WORKING RANGE - CX80
CT04D007
Figure 6
..........................................................................................................................1.71 m (5 ft. 6 in) arm 2.12 m (7 ft.) arm
A (Maximum reach) .................................................................................................7.03 m (23 ft. 0 in) 7.40 m (24 ft. 3 in)
B (Maximum reach at ground level).........................................................................6.89 m (22 ft. 6 in) 7.27 m (23 ft. 8 in)
C (Maximum digging depth).....................................................................................4.18 m (13 ft. 7 in) 4.59 m (15 ft. 1 in)
D (Maximum digging depth over a length of 2.44 m) (8 ft.) .....................................3.80 m (12 ft. 5 in) 4.23 m (13 ft. 9 in)
E (Maximum dump height........................................................................................4.39 m (14 ft. 4 in) 4.60 m (15 ft. 1 in)
F (Maximum working height) ...................................................................................6.39 m (21 ft. 1 in) 6.60 m (21 ft. 7 in)
G (Minimum attachment swing radius) ......................................................................2.75 m (9 ft. 1 in) 2.91 m (9 ft. 6 in)
H (Maximum digging depth on a vertical wall).........................................................3.10 m (10 ft. 2 in) 3.55 m (11 ft. 7 in)
RH offset angle..................................................................................................................................... 50°
LH offset angle ..................................................................................................................................... 80°
