CX75SR - OFFSET ATTACHMENT - 1.75 M (5 FT. 9 IN) ARM
CT02D274 / CT02D275
1. MAXIMUM WORKING RANGE (ZERO OFFSET)
2. TRENCH WITH VERTICAL WALLS (MAXIMUM OFFSET)

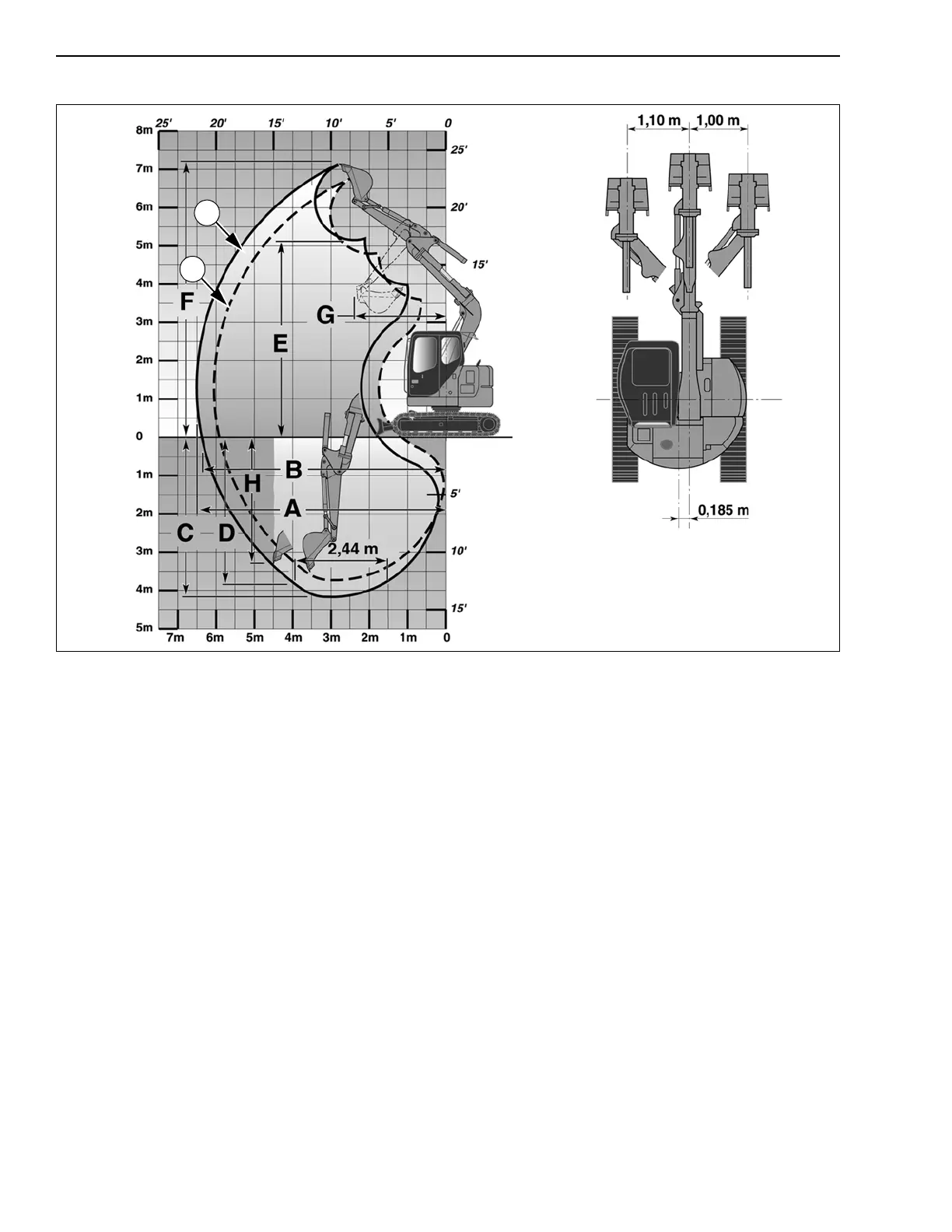

WORKING RANGE FOR OFFSET ATTACHMENT WITH 1.75 M (5 FT. 9 IN) ARM
A. (Maximum reach) ................................................................................................. 6.10 m (20 ft.) maximum offset
6.50 m( 21 ft. 3 in) zero offset
B. (Maximum reach at ground level).................................................................. 5.95 m (19 ft. 6 in) maximum offset
6.35 m (20 ft. 10 in) zero offset
C. (Maximum digging depth).............................................................................. 3.75 m (12 ft. 4 in) maximum offset
4.20 m (13 ft. 9 in) zero offset
D. (Maximum digging depth over a length of 2.44 m) (8 ft.) .............................. 3.40 m (11 ft. 2 in) maximum offset
3.80 m (12 ft. 5 in) zero offset
E. (Maximum dump height) .............................................................................. 4.85 m(15 ft. 11 in) maximum offset
5.15 m (16 ft. 10 in) zero offset
F. (Maximum working height)............................................................................. 6.85 m(22 ft. 5 in) maximum offset
7.20 m (23 ft. 7 in) zero offset
G. (Minimum attachment swing radius) ................................................................ 1.95 m(6 ft. 5 in) maximum offset
2.25 m (7 ft. 4 in) zero offset
H. (Maximum digging depth - vertical wall)........................................................... 2.85 m(9 ft. 4 in) maximum offset
3.25 m (10 ft. 8 in) zero offset
1
2
